Cleanroom Material Handling and Storage

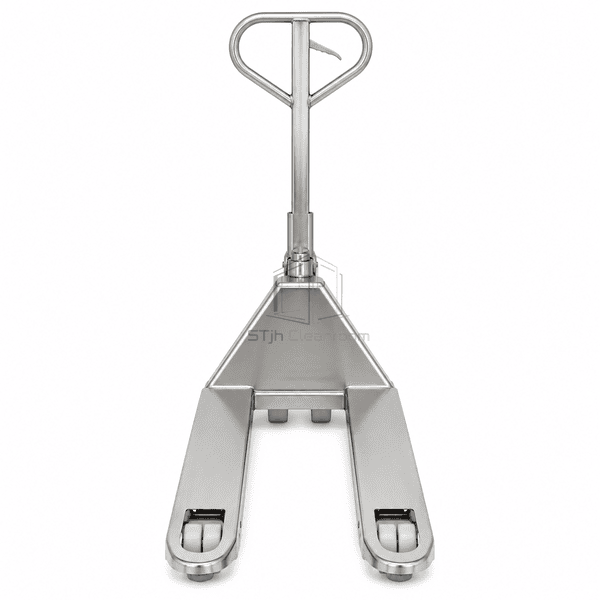

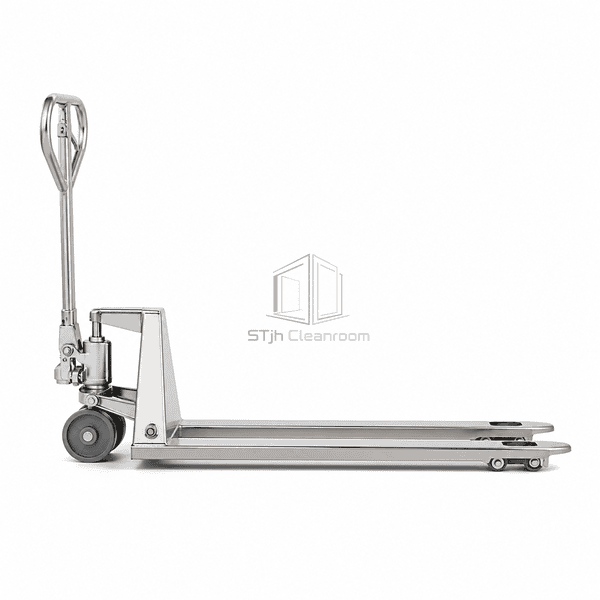

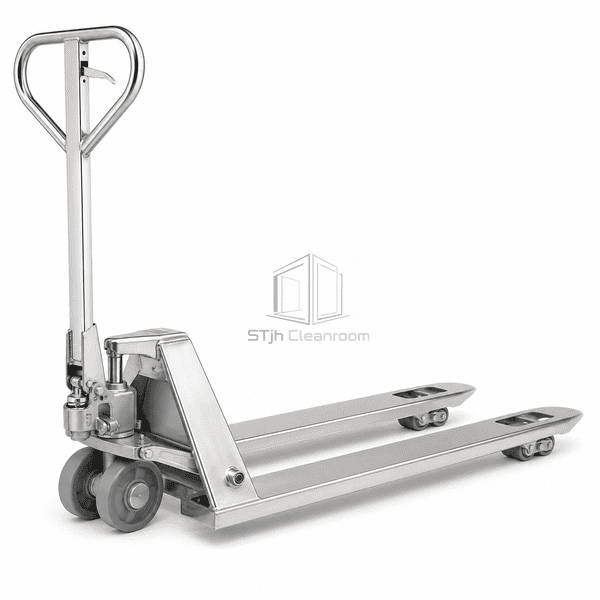

Cleanroom Pallet Truck

A stainless steel manual pallet truck engineered for hygienic pallet movement in cleanrooms and washdown production areas.

AISI 304 stainless forks, chassis and hydraulic housing
Cleanable open fork structure with configurable pallet geometry
Manual loop tiller with non-marking steering and load wheels

Request a Quote Browse Products

Product Introduction

This manual pallet truck combines stainless forks, chassis, tiller and hydraulic housing with cleanable open construction. Non-marking steering wheels and tandem load rollers support controlled pallet movement, while configurable fork geometry accommodates common and special clean pallets.

Key Features

Stainless external construction resists corrosion and repeated cleaning.

Open fork structure improves access for sanitation.

Ergonomic loop tiller combines steering, lifting and controlled lowering.

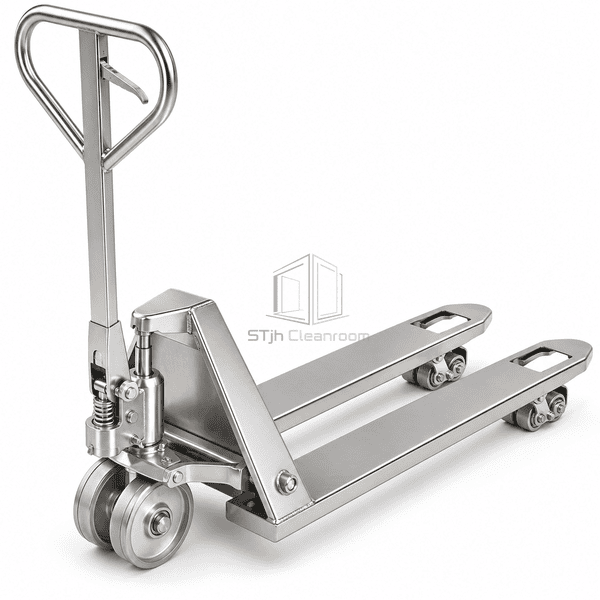

Tandem rollers cross pallet openings and floor joints smoothly.

Optional 316 stainless execution supports more aggressive environments.

Customer Product Concerns

Hygienic pallet movement combines washdown resistance, cleaning access around the forks, floor-safe rolling and compatibility with the actual pallet openings.

Corrosion after washdownStainless chassis and hydraulic housing remove common painted-steel exposure points.

Residue around forksOpen, accessible fork geometry supports cleaning.

Floor markingNon-marking wheel materials are selectable.

Nonstandard palletsFork length and external width can be customized.

Typical Applications

For clean-pallet handling in pharmaceutical, food, chemical, biotechnology and semiconductor controlled areas.

Technical Parameters

Fork length and outside width, single or tandem roller layout, stainless grade, wheel compound and hydraulic fluid are selected for the clean pallet, floor and sanitation conditions.

Core Material	AISI 304 stainless steel chassis, forks and hydraulic housing
Panel Thickness	3–5 mm formed fork shell
Effective Width	520–685 mm overall fork width
Maximum Length	1150 mm standard fork length
Steel Facing Thickness	3–5 mm
Core Density	7930 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 16.2 W/(m·K) at room temperature
Surface Finish	Satin, glass-bead blasted or passivated stainless steel
Joint Type	Welded fork chassis with sealed hydraulic pivot assemblies
Customization	Available based on the intended application and operating environment.

Available Options

AISI 316 construction, custom fork dimensions, single or tandem rollers, alternative wheel compounds and application-specific hydraulic fluids are available.
