Cleanroom Pallet Cart

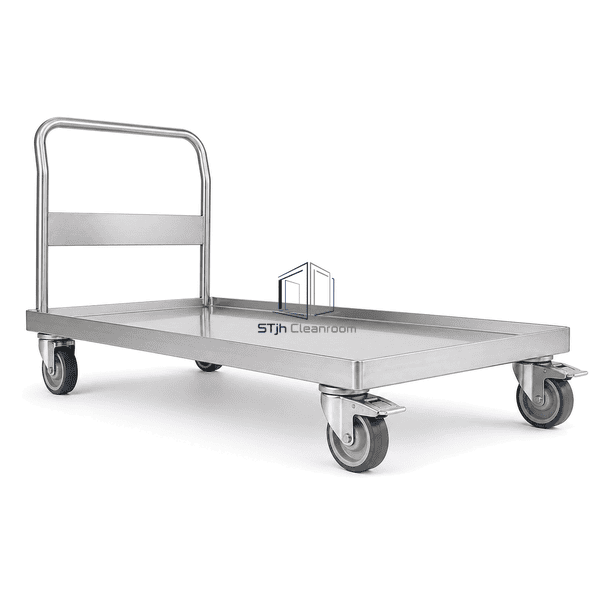

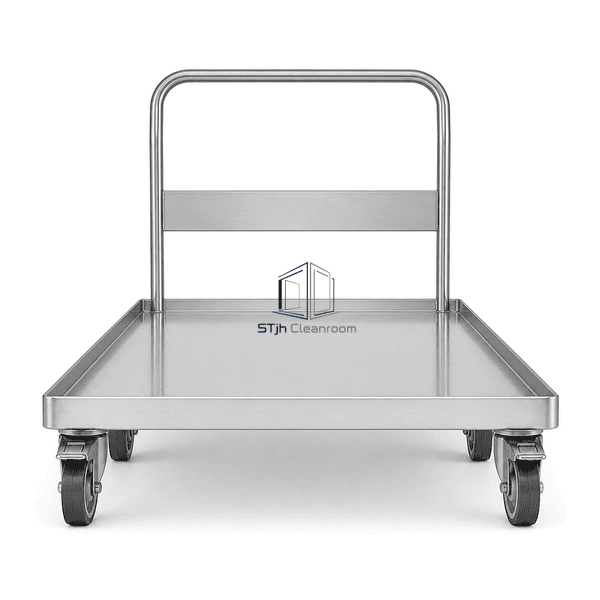

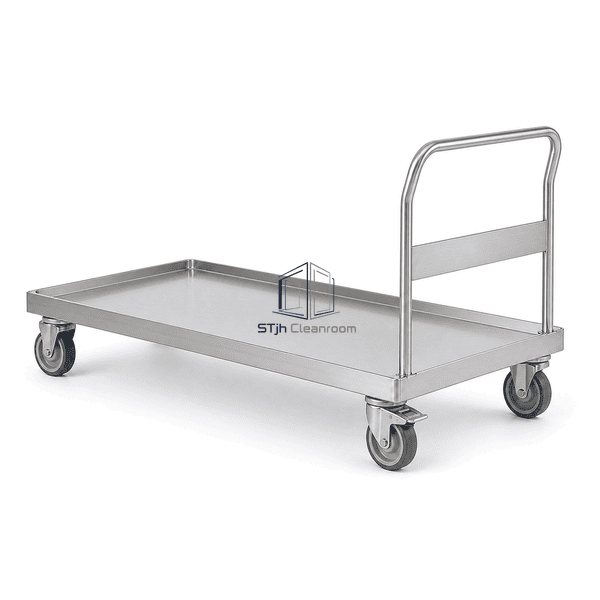

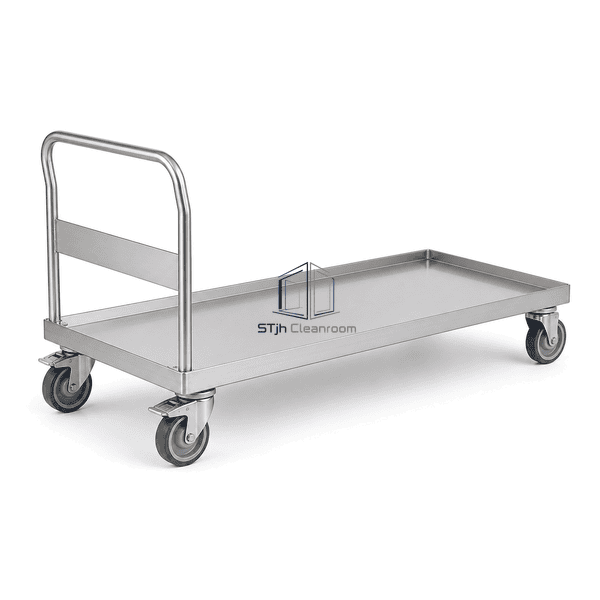

A low stainless steel pallet dolly with a cleanable closed deck, retaining rim and sealed non-marking casters for controlled-area transport.

Low closed stainless deck with a raised retaining perimeter
TIG-welded cleanable frame with an accessible underside
Sealed fixed-and-swivel caster configurations for stable tracking

Request a Quote Browse Products

Product Introduction

Designed for loads that require a wider, lower support surface, this cleanroom pallet cart combines a welded stainless deck with an ergonomic tubular handle. The open underside remains accessible for inspection, while the raised perimeter helps prevent packages or a compatible clean pallet from sliding during manual movement.

Key Features

Low deck reduces manual loading height.

Stainless closed surface supports thorough wipe-down.

Raised perimeter limits lateral load movement.

Sealed caster options reduce exposed bearing contamination points.

Fixed/swivel wheel combinations provide directional stability.

Customer Product Concerns

Wide pallet and skid loads require a low center of gravity, positive deck retention and cleanable wheel hardware while still tracking reliably through controlled areas.

Load movement during turnsA shallow retaining lip helps keep compatible loads on the deck.

Unclean caster hardwareSealed stainless housings and bearings are available.

Corrosion from sanitationStainless grade and passivation can be matched to the cleaning chemistry.

Poor straight-line trackingTwo fixed plus two swivel casters balance tracking and manoeuvrability.

Typical Applications

For clean pallets, process skids, packaged vessels and bulky component loads in pharmaceutical, biotechnology, food, laboratory and high-care manufacturing areas.

Technical Parameters

Deck dimensions and profile, stainless grade, caster arrangement, retention features and tow fittings can be specified for the pallet or skid, load path and cleaning method.

Core Material	304 or 316L stainless steel welded deck and frame
Panel Thickness	1.5–3.0 mm deck sheet
Effective Width	600–1000 mm
Maximum Length	Up to 1400 mm
Steel Facing Thickness	1.5–3.0 mm
Core Density	7930–8000 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 14.6–16.2 W/(m·K) at room temperature
Surface Finish	No. 4 brushed, passivated or electropolished stainless steel
Joint Type	TIG-welded frame with sealed deck seams and bolted caster plates
Customization	Available based on the intended application and operating environment.

Available Options

Custom deck dimensions, 304 or 316L stainless steel, flat or drip deck, retention bars, corner buffers, tow brackets, pedal brakes and conductive wheels are available.
