Cleanroom Material Handling and Storage
Cleanroom Mobile Step Platform
A stainless cleanroom mobile step platform with two perforated steps, guarded standing deck and four non-marking swivel casters for repositionable access.
- Mobile two-step access platform supports maintenance at changing locations
- Stainless perforated surfaces withstand frequent controlled-area cleaning
- Three-sided guardrail and braked casters stabilize elevated work
Product Introduction

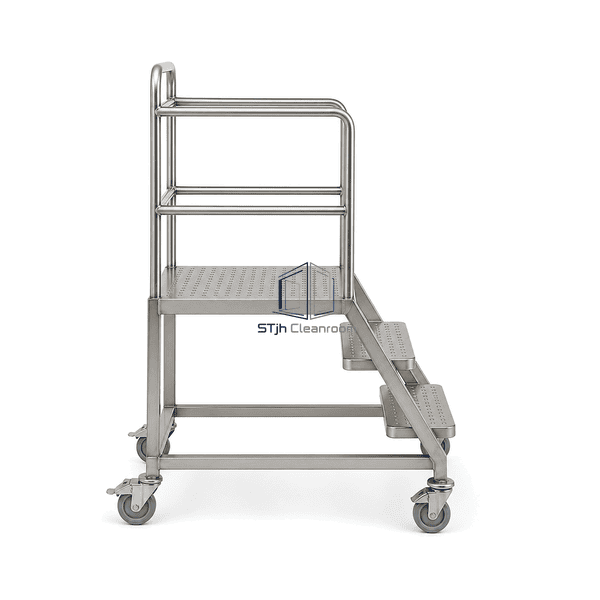

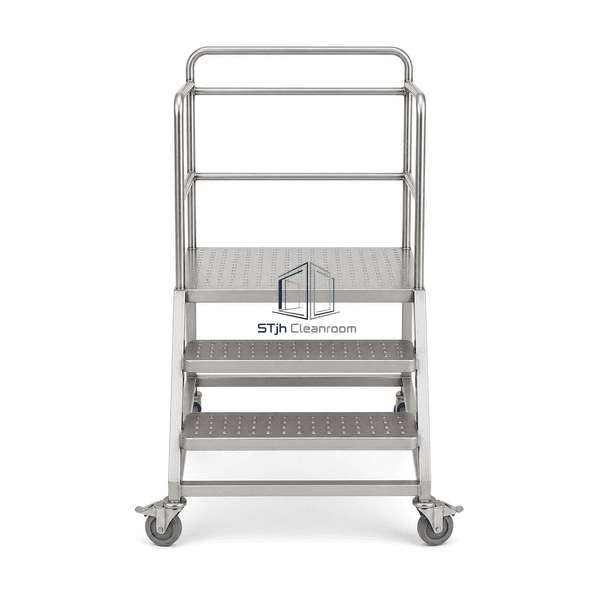

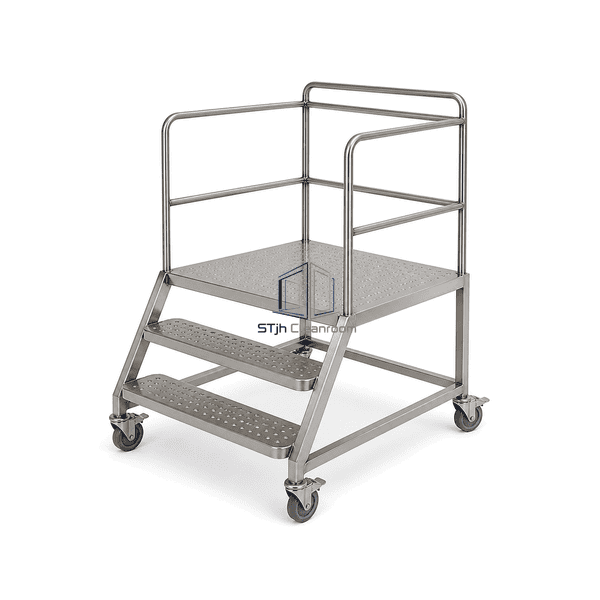

The mobile step platform combines a welded stainless base, two broad access steps and a perforated standing deck enclosed by three-sided tubular guardrails. Four swivel casters permit relocation between work points, while foot brakes hold the unit for use. Open framing and accessible perforated surfaces support visual inspection and controlled-area cleaning.
Key Features
Three-sided guardrail protects the elevated standing zone.
Four non-marking swivel casters support maneuvering in narrow aisles.
Stainless square-tube base resists cleaning chemicals and corrosion.
Open-frame construction minimizes concealed residue traps.
Customer Product Concerns
Fixed access points do not cover changing maintenance locations, while ordinary rolling stairs may shed coatings, mark clean floors or retain contamination in closed surfaces.
Movement during useBraked swivel casters hold the platform once correctly positioned.
Elevated fall exposureThree-sided rails define and protect the standing deck.
CleanabilityStainless perforated surfaces and open framing expose accessible wipe-down areas.
Floor markingClean-compatible non-marking caster treads protect finished controlled-area floors.
Typical Applications
Repositionable access for equipment inspection, cleaning, loading, filter service and maintenance in pharmaceutical, biotechnology, medical-device, electronics and laboratory clean areas.
Technical Parameters

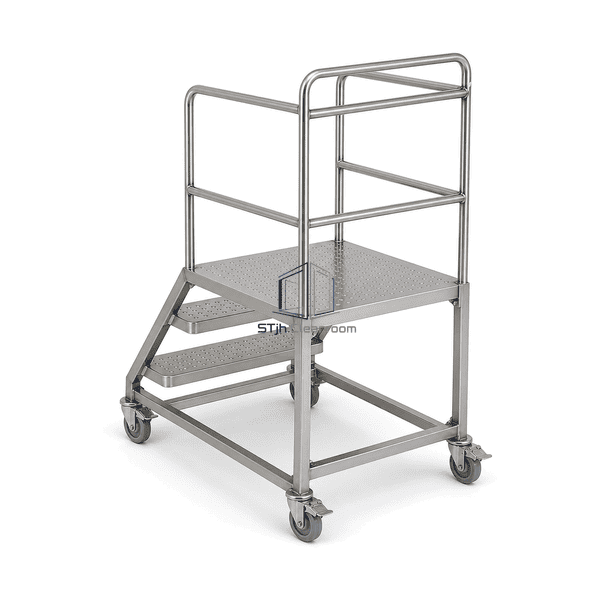

The stair stringers are welded to a rectangular rolling base and terminate at a rigid deck frame. Guardrail uprights transfer hand loads into the platform structure. Caster diameter, brake arrangement, platform height, tread width and finish are selected for floor condition, cleaning method and access task. The platform must be parked and brakes engaged before climbing.
| Core Material | 304 or 316L stainless steel frame, steps, platform and guardrails |
|---|---|
| Panel Thickness | 1.5–3.0 mm perforated tread and deck panels |
| Effective Width | 500–900 mm usable platform width |
| Maximum Length | Up to 1800 mm overall platform footprint length |
| Steel Facing Thickness | 1.5–2.5 mm exposed stainless deck surfaces |
| Core Density | 8000 kg/m³ nominal stainless steel density |
| Thermal Conductivity | Approximately 14.6–16.2 W/(m·K) at room temperature |
| Surface Finish | Fine-brushed, mechanically polished or electropolished stainless steel |
| Joint Type | Continuously welded rolling frame with fixed perforated steps, guardrails and swivel casters |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless steel, alternative platform heights, tread counts and widths, electropolished finish, conductive casters, four-wheel brakes, removable chain gate, toe boards and application-specific rail arrangements.
Planning a Cleanroom Mobile Step Platform specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
