Cleanroom Material Handling and Storage

Cleanroom Mobile Rack

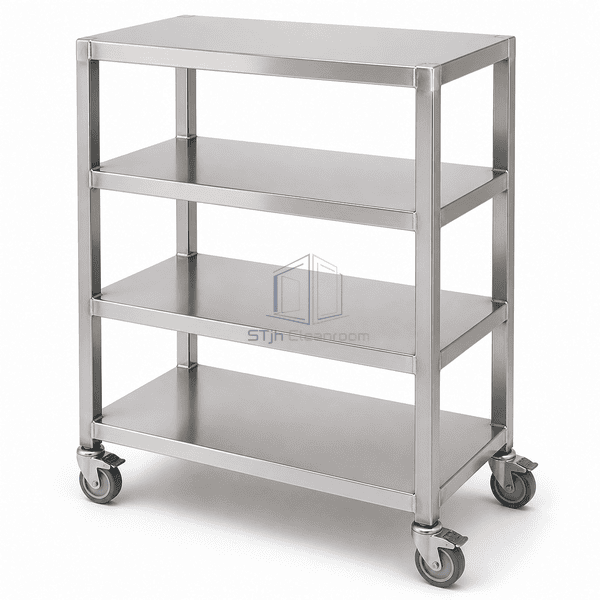

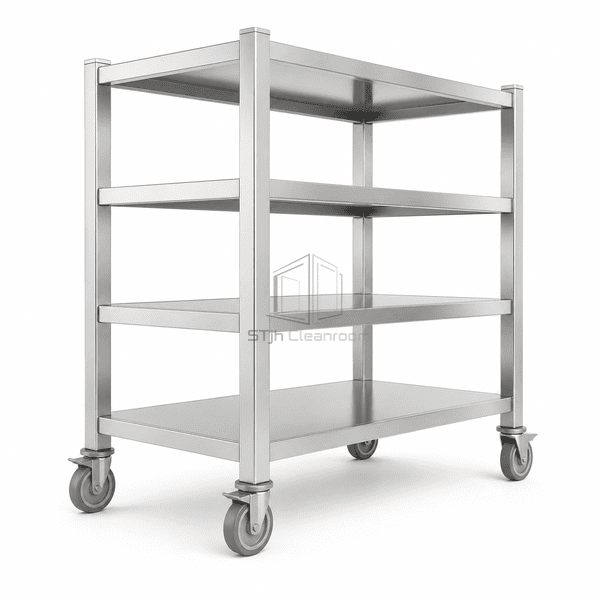

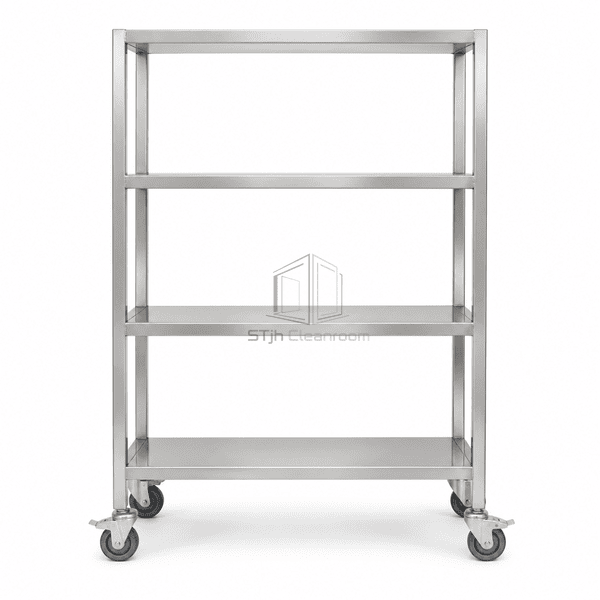

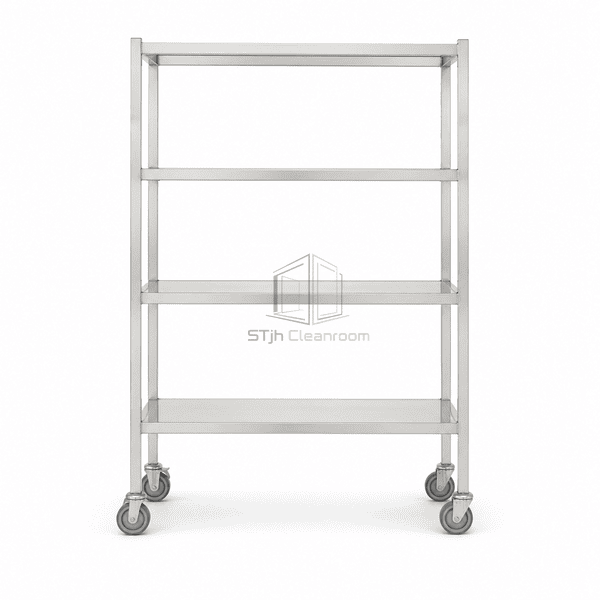

A mobile stainless shelving rack for flexible cleanroom storage and easier floor-area cleaning.

Four smooth cleanable stainless shelves
Fully welded hygienic frame
Mobile ESD-capable caster configuration

Request a Quote Browse Products

Product Introduction

Four solid shelves are continuously joined to a box-section stainless frame, avoiding loose modular clips and exposed ledges. Sealed casters let operators reposition the empty rack for cleaning or workflow changes.

Key Features

Solid shelves provide stable support for packaged supplies.

Welded joints minimize particle traps.

Stainless construction supports frequent wipe-down.

Braked swivel casters secure the rack after positioning.

Shelf spacing and overall dimensions are configurable.

Customer Product Concerns

Clean storage must allow sanitation access, resist corrosion and remain stable after repositioning.

Dust ledges at modular clipsContinuous welding removes loose shelf fittings.

Blocked floor cleaningCasters allow the empty rack to be moved.

Static-sensitive inventoryConductive caster configurations are available.

Rack driftBraked swivel casters secure its position.

Typical Applications

Sterile-area supplies, packaged components, cleanroom consumables and laboratory inventory.

Technical Parameters

Stainless grade, shelf type and caster conductivity are selected for cleanliness class, load and storage format.

Core Material	AISI 304 or 316L stainless steel frame and shelves
Panel Thickness	1.0–1.5 mm shelf sheet
Effective Width	600–1500 mm
Maximum Length	Up to 1800 mm
Steel Facing Thickness	1.0–1.5 mm
Core Density	7930–8000 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 14.6–16.2 W/(m·K) at room temperature
Surface Finish	Brushed, passivated or electropolished stainless steel
Joint Type	Continuously seam-welded box frame and shelf supports
Customization	Available based on the intended application and operating environment.

Available Options

304 or 316L steel, solid/perforated/slatted shelves, three to five tiers, conductive casters and custom dimensions.
