Cleanroom Furniture and Stainless Steel Products
Cleanroom Medicine Cabinet

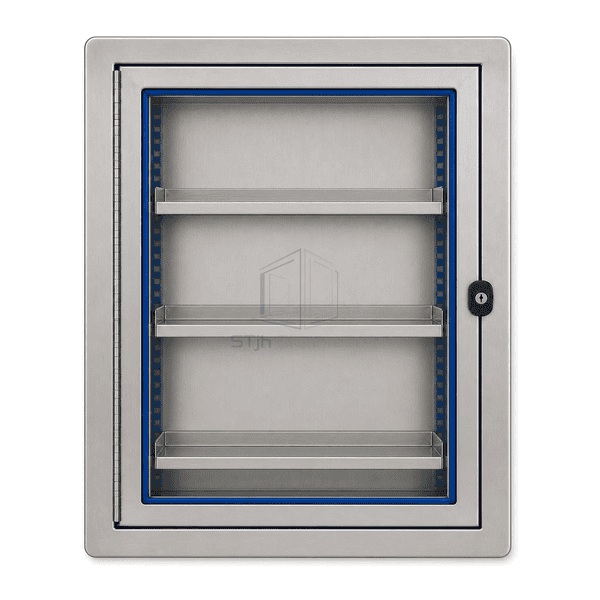

A compact recessed or wall-mounted Type 304 stainless cabinet that secures frequently used medicines behind one gasketed glazed door.
- Recessed hygienic mounting flange
- Single lockable glazed door
- Three adjustable stainless shelves
- Continuous blue silicone gasket
Product Introduction

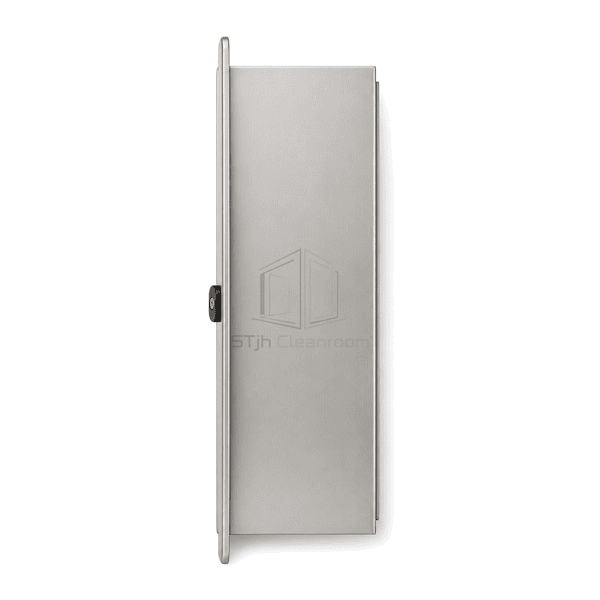

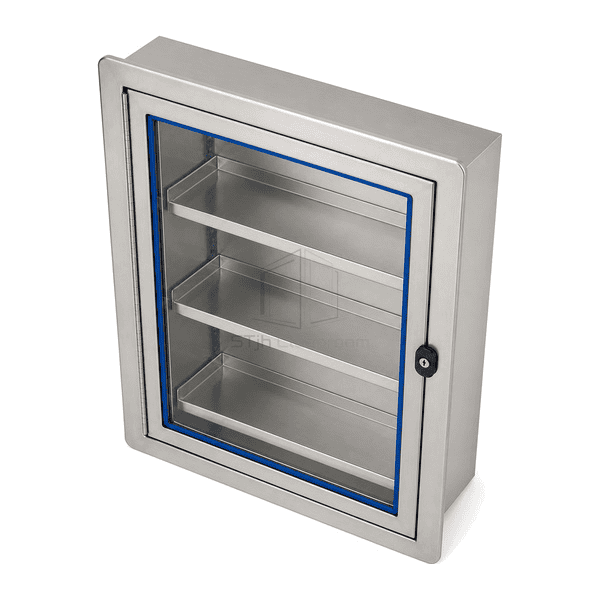

The cleanroom medicine cabinet provides shallow, lockable point-of-use storage without occupying floor space. Its Type 304 stainless box fits into a prepared wall opening or mounts through a sealed perimeter flange. One laminated-glass door gives a clear view of the three adjustable stainless shelves, helping staff identify stock before opening the cabinet. A continuous piano hinge supports the full door height, while a keyed compression lock pulls the blue silicone gasket evenly against the raised frame. Smooth shelf pans incorporate shallow turned-up edges to keep small packages from sliding into the door seal.
Key Features
One clear laminated-glass door displays package arrangement without exposing the stored contents.
Three stainless shelf pans move in small increments and use turned-up edges to retain boxes and vials.

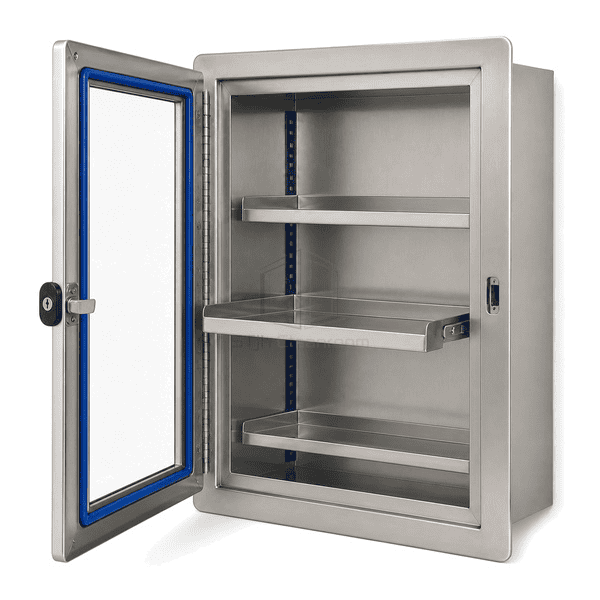

A full-height piano hinge and keyed compression lock keep the single door aligned against its continuous gasket.
Customer Product Concerns
Point-of-use medicines must be secure and easy to count without consuming valuable floor or bench area.
A freestanding cupboard creates a floor obstruction for a relatively small medicine inventory.The shallow recessed box uses otherwise unused wall depth and presents only a smooth perimeter flange.
Opening the door to count packages increases handling around the stored medicines.The clear laminated panel exposes the shelf layout while the keyed door stays closed.
Small boxes and vials can roll toward the opening when they share a flat shelf.Each adjustable stainless shelf includes a shallow retaining edge around the usable pan.
Narrow butt hinges and surface catches create several protruding wiping obstructions.A continuous hinge and flush compression lock concentrate the hardware along two defined cleanable edges.
Typical Applications
Cleanroom first-response medicine storageControlled clinic supply pointsPharmaceutical gowning-room consumablesMedical-device production welfare stationsLaboratory treatment-room storage
Technical Parameters
Typical configurable specifications for a wall-mounted cleanroom medicine cabinet are listed below.
| Core Material | Type 304 stainless steel recessed cabinet box with a laminated tempered-glass door and three stainless shelf pans |
|---|---|
| Panel Thickness | 0.8–1.2 mm cabinet box, mounting flange and door frame |
| Effective Width | 400–600 mm overall cabinet width |
| Maximum Length | 900 mm maximum overall cabinet height |
| Steel Facing Thickness | 0.8–1.2 mm Type 304 stainless box, frame and shelves |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Brushed No. 4 stainless with clear laminated glazing, blue silicone gasket and black keyed lock |
| Joint Type | Sealed recessed mounting flange with full-height piano hinge, gasket-compressed single door, keyed cam lock and slotted shelf supports |
| Customization | Available based on the intended application and operating environment. |
Available Options
Surface-mounted or recessed wall boxSolid stainless or clear glazed doorElectronic access lock with audit outputAdditional adjustable shelf pans
Planning a Cleanroom Medicine Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
