Cleanroom Material Handling and Storage

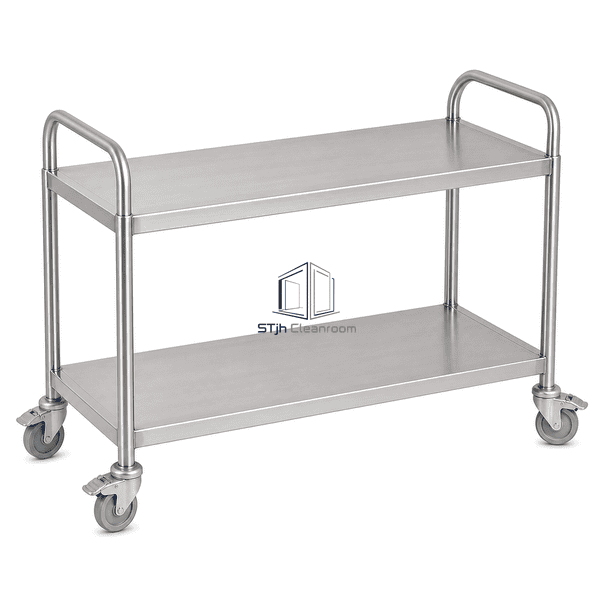

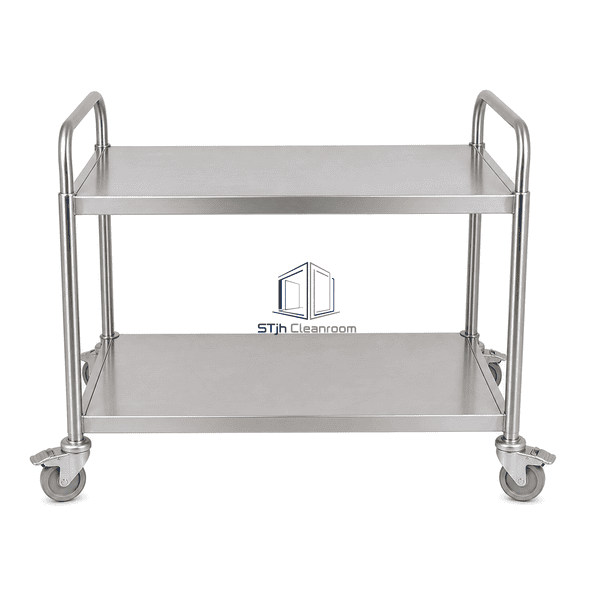

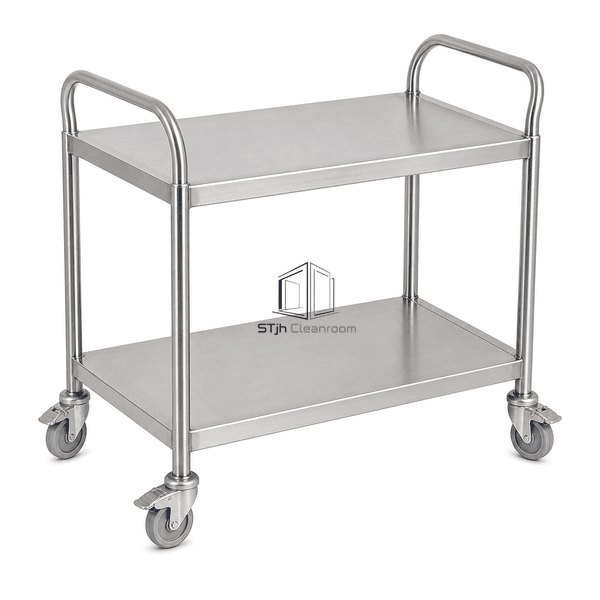

Cleanroom Material Trolley
A mobile two-shelf stainless steel trolley designed for controlled movement of tools, components and packaged materials in hygiene-sensitive production areas.
- Two open stainless steel shelves with raised retaining edges
- Rounded tubular push frame and tight-turn swivel casters
- Configurable shelf spacing, wheel compound and brake arrangement
Product Introduction
This cleanroom material trolley combines smooth stainless steel shelves, rounded tubular handles and cleanable open construction. Raised shelf edges help retain small loads during movement, while non-marking swivel casters support controlled manoeuvring through corridors and between workstations. Shelf count, overall dimensions, caster material and brake arrangement can be configured for the intended workflow.
Key Features
Two open shelves separate loads while keeping contents visible.
Rounded push handles avoid exposed sharp corners.
Swivel casters provide tight turning in constrained production aisles.

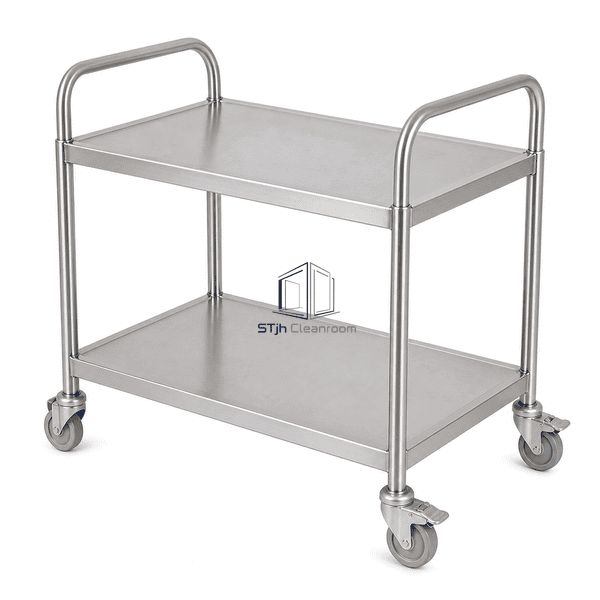

Available caster brakes help secure the trolley during loading.
Customer Product Concerns
Open material transfer requires separated load levels, accessible cleaning surfaces and controlled cornering without marking the cleanroom floor.
Particles collecting around jointsSmooth welded intersections and open access reduce difficult-to-clean crevices.
Loads shifting in transitRaised shelf rims help contain small containers and packaged parts.
Wheel marks or uncontrolled movementNon-marking caster options and wheel brakes support clean, stable handling.
Corrosion from frequent cleaningStainless steel construction is compatible with common controlled-area wipe-down routines when the selected grade matches the chemicals used.
Typical Applications
Suitable for transferring packaged components, utensils, tools and process supplies in pharmaceutical production, biotechnology facilities, medical-device assembly, laboratories and controlled electronics manufacturing.
Technical Parameters
Stainless grade, shelf spacing, rim geometry and caster selection can be matched to the carried materials, aisle constraints and routine cleaning chemistry.
| Core Material | 304 stainless steel tubular frame with solid stainless steel shelves |
|---|---|
| Panel Thickness | 1.0–1.5 mm shelf sheet |
| Effective Width | 500–700 mm |
| Maximum Length | Up to 1200 mm |
| Steel Facing Thickness | 1.0–1.5 mm |
| Core Density | 7930 kg/m³ nominal stainless steel density |
| Thermal Conductivity | Approximately 16.2 W/(m·K) at room temperature |
| Surface Finish | Brushed or electropolished cleanable stainless steel |
| Joint Type | Continuous welded tubular frame with radiused shelf seams |
| Customization | Available based on the intended application and operating environment. |
Available Options
Optional configurations include two or three shelves, 304 or 316L stainless steel, solid or perforated shelves, conductive casters, total-lock brakes, removable handles and custom shelf spacing.
Planning a Cleanroom Material Trolley specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
