Cleanroom Furniture and Stainless Steel Products

Cleanroom Laboratory Island Bench

A freestanding double-sided cleanroom bench that organizes two work zones around one sealed central utility and shelf spine.

Two independent work faces
Sealed central service spine
Height-adjustable upper shelves
Removable utility access panels

Request a Quote Browse Products

Product Introduction

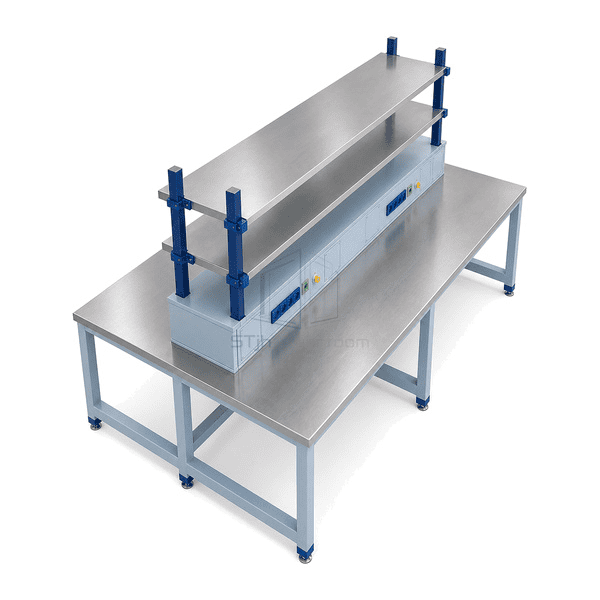

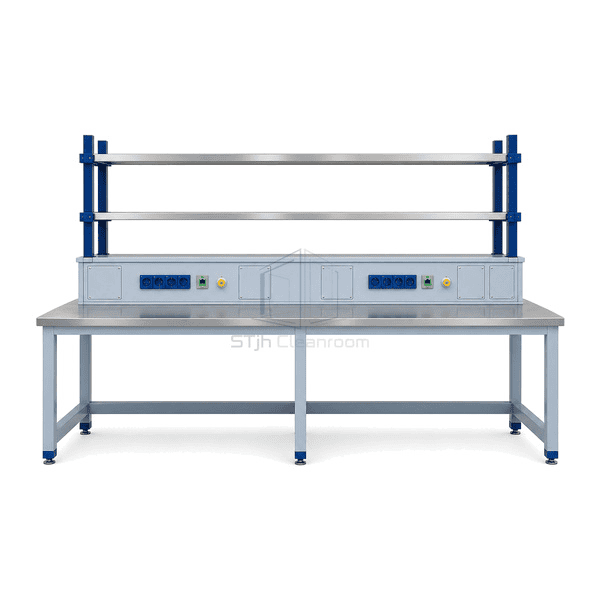

The cleanroom laboratory island bench creates two opposing work areas within one freestanding furniture run. Brushed stainless work surfaces meet a sealed central service spine that carries covered power, data and process connections above the active work zones. Double-sided upper shelves place shared supplies within reach without stacking them on the bench. Removable spine panels open from either side for service, while the support frame and kick spaces remain accessible for floor cleaning.

Key Features

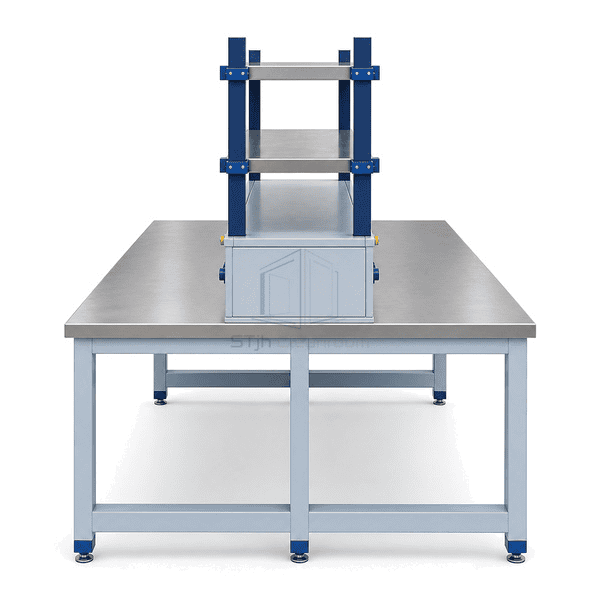

Back-to-back work surfaces support two operator flows without duplicating the central utility structure.

A sealed raised spine separates service connections from both active work zones.

Shared upper shelves adjust vertically without drilling or modifying the work surfaces.

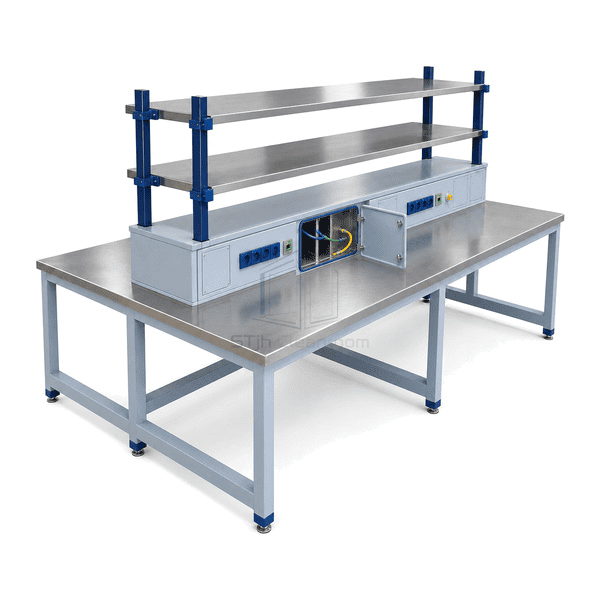

Side-removable access panels expose utilities without dismantling either bench face.

Customer Product Concerns

Two-sided cleanroom laboratories need shared services without forcing operators to cross work zones or run utilities across open floors.

Separate benches duplicate service drops and consume the centre aisle.One central spine supplies two opposing stainless work surfaces from a shared structure.

Loose power and data cables cross the worktop between operators.Covered outlets and internal routing keep each side's connections within its own rear service zone.

Shared consumables are stacked on both benches and block usable space.Double-sided adjustable shelves place common supplies above the centre line.

Servicing a central utility chase interrupts both sides of the island.Segmented removable panels expose only the required service bay from the nearest side.

Typical Applications

Pharmaceutical sample preparationMedical-device assembly cellsClean analytical laboratoriesBiotechnology process supportShared quality-control work areas

Technical Parameters

Typical configurable specifications for a double-sided cleanroom island bench are listed below.

Core Material	Twin Type 304 stainless steel work surfaces on sealed modular frames with a central stainless service spine
Panel Thickness	1.2–1.5 mm stainless work surfaces with reinforced underside
Effective Width	1500–1800 mm overall double-sided bench depth
Maximum Length	3600 mm
Steel Facing Thickness	1.0–1.5 mm work surfaces and removable service-spine panels
Core Density	7900–8000 kg/m³ for Type 304 stainless steel surfaces
Thermal Conductivity	14–16 W/(m·K) for Type 304 stainless steel
Surface Finish	Brushed stainless steel with radiused worktop edges and powder-coated blue-gray support frames
Joint Type	Back-to-back modular frames locked to a sealed central service spine with removable access panels
Customization	Available based on the intended application and operating environment.

Available Options

Single or double upper-shelf tiersCovered power data and process-gas modulesIntegrated sink or equipment cut-outsAll-stainless or powder-coated support frames

Planning a Cleanroom Laboratory Island Bench specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
