Cleanroom Furniture and Stainless Steel Products
Cleanroom Instrument Cart

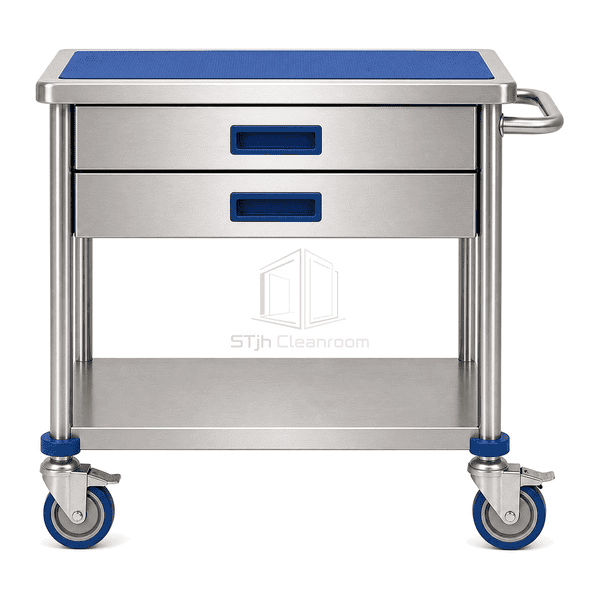

A compact Type 304 stainless instrument cart with two ball-bearing drawers, upper and lower marine-edge shelves, a removable blue silicone work mat and four swivel casters.
- Two full-extension instrument drawers
- Removable blue silicone work mat
- Upper and lower marine-edge shelves
- Compact four-caster footprint
Product Introduction

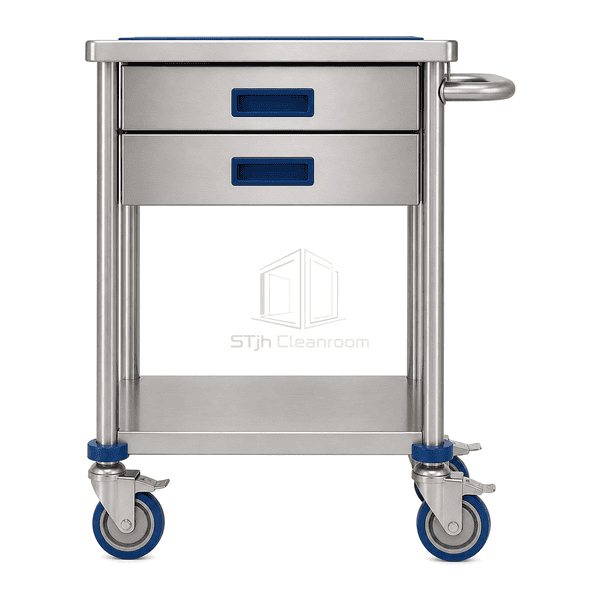

The cleanroom instrument cart keeps frequently used measuring tools organized at the point of work without using the volume of a full storage cabinet. Two shallow drawers run on enclosed stainless ball-bearing slides beneath a marine-edge top, and removable blue dividers separate probes, gauges and hand tools. A blue silicone mat protects sensitive instruments from the hard stainless surface. The lower solid shelf carries boxed accessories, while a rounded side handle and four 100 mm swivel casters allow the compact cart to move alongside process equipment.
Key Features

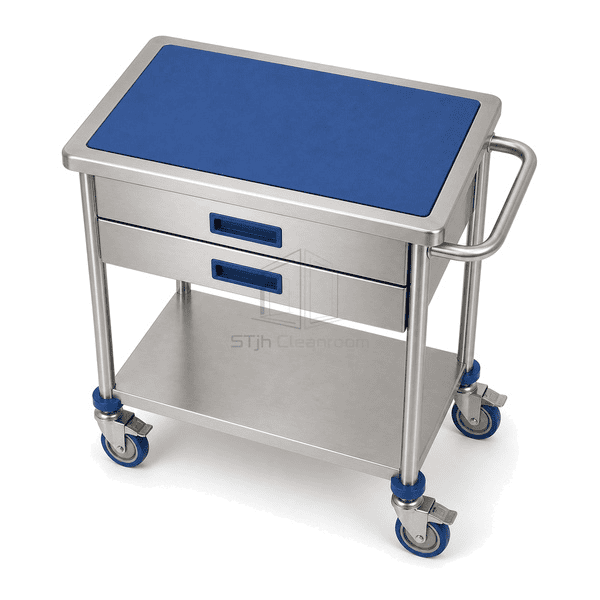

A removable blue silicone mat cushions gauge bodies and lifts out for separate washing.
The lower marine-edge shelf carries accessory cases while remaining open to visual inspection.
A narrow frame and side push handle position instruments beside equipment without occupying the operator aisle.
Customer Product Concerns
Portable measurement work needs shallow organized storage and a protected landing surface without allowing small tools to roll, collide or disappear inside a deep cabinet.
Delicate gauges slide against a bare steel worktop as the cart moves.The removable silicone mat provides a compliant high-friction landing area.
Small probes become tangled when stored together in one deep drawer.Two shallow drawers use removable dividers to separate instruments by function.
A top-heavy cart shifts while an operator records a measurement.A low solid shelf lowers stored accessory weight and two caster brakes stabilize the footprint.

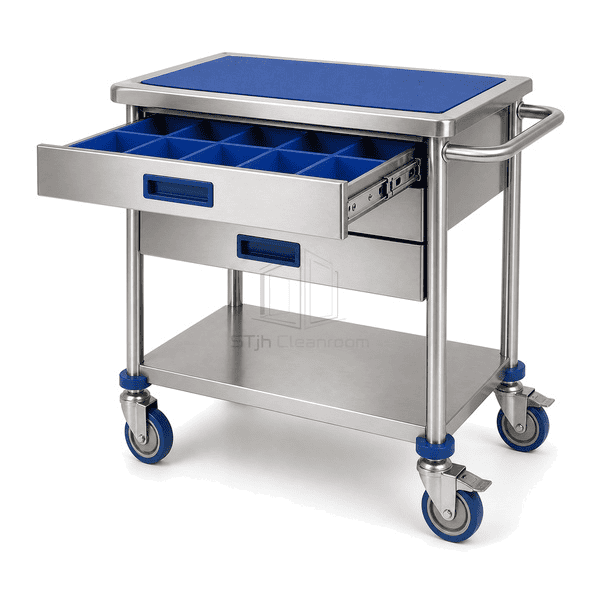

Exposed conventional drawer slides collect residue along lubricated recesses.Enclosed stainless slide housings shield the bearing path and remove independently for service.
Typical Applications
Cleanroom inspection instrument stagingCalibration tool transportBioprocess sensor handlingMedical-device test stationsLaboratory sampling support
Technical Parameters
Typical configurable specifications for a compact stainless cleanroom instrument cart are listed below.
| Core Material | Type 304 stainless frame, shelves and drawer bodies with blue silicone top mat and polymer drawer dividers |
|---|---|
| Panel Thickness | 1.2 mm marine-edge shelves and drawer panels |
| Effective Width | 700 mm usable upper instrument surface |
| Maximum Length | 800 mm maximum overall cart length including side push handle |
| Steel Facing Thickness | 1.2 mm Type 304 shelf and drawer sheet; 1.5 mm tube wall |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Satin-brushed stainless body with blue silicone work mat, blue drawer dividers and non-marking caster treads |
| Joint Type | Welded tubular frame with enclosed full-extension drawer slides, marine-edge shelves and plate-mounted casters |
| Customization | Available based on the intended application and operating environment. |
Available Options
Instrument rail and hooksLockable drawer stackHeight-adjustable monitor armConductive top mat and grounding lead
Planning a Cleanroom Instrument Cart specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
