Personnel and Material Decontamination Equipment
Cleanroom Hygiene Completion Turnstile

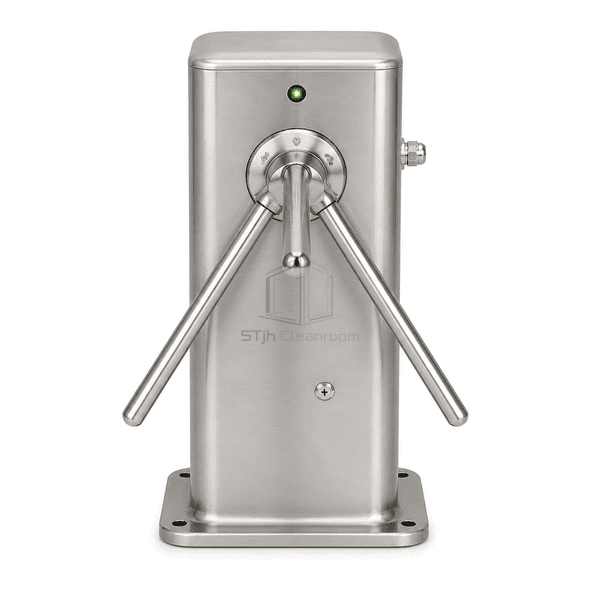

A stainless steel turnstile that permits one entry only when connected hygiene equipment returns its completed-cycle signal.
- External hygiene-completion input
- Single-person controlled passage
- Sealed stainless drive housing
- Emergency free egress
Product Introduction
The Cleanroom Hygiene Completion Turnstile is the physical gate installed after a hand, footwear or gowning hygiene step. It does not evaluate the hygiene process itself: entry release is given only when the connected hygiene equipment returns its configured completion signal. The barrier then allows one controlled passage before returning to the locked state; its stainless steel housing and rounded forms are suited to frequent cleaning.
Key Features

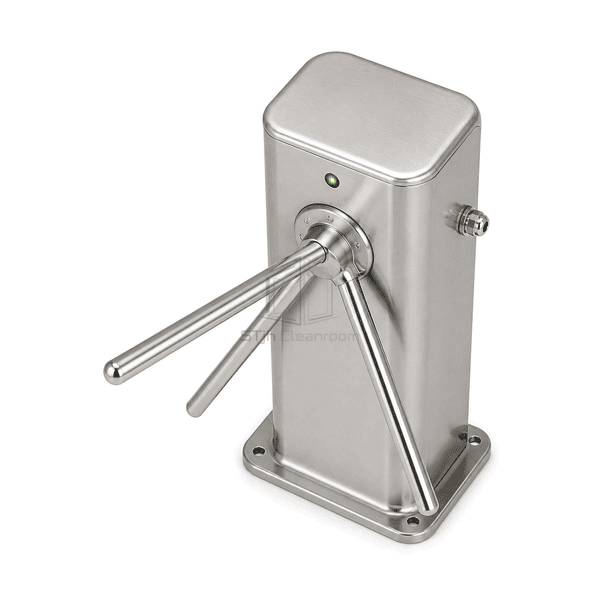

One authorised release permits one controlled rotation or passage before relocking.
A visual status indication at the gate does not replace the required hygiene-completion input.

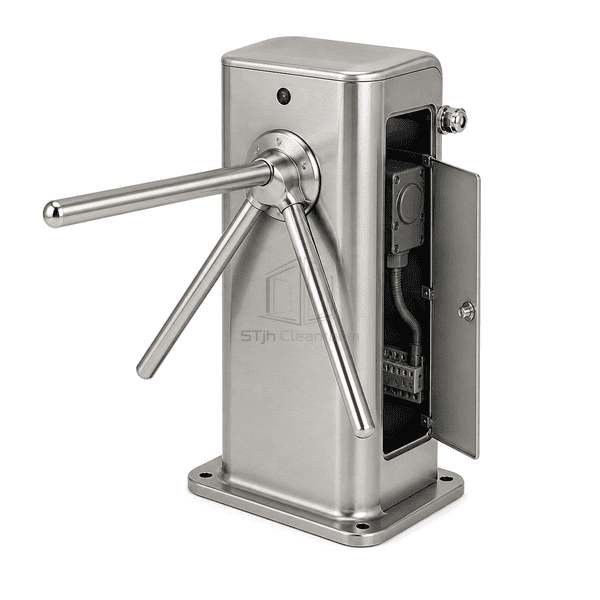

A sealed stainless steel drive housing protects the mechanism from routine cleaning residue.

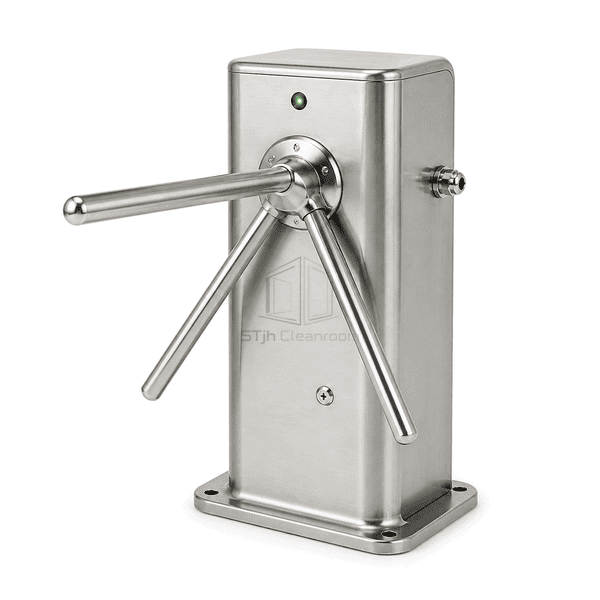

Emergency free-egress input can release the barrier independently of the entry sequence.
Customer Product Concerns
A barrier that opens for a person without a returned hygiene-completion signal cannot enforce the intended physical sequence.
Several people can follow one completed hygiene cycle through an open entry.The barrier releases for a single controlled passage and then relocks.
A turnstile may open before the hygiene device has completed its programmed step.The release input is accepted only after the connected hygiene equipment returns its completion signal.
Exposed gate mechanisms collect cleaning residue in a hygiene lane.A sealed rounded stainless steel housing separates the drive from the passage area.
A locked entry barrier could obstruct emergency movement out of the area.A dedicated emergency input enables immediate free egress.
Typical Applications
Cleanroom hygiene airlocksFood production entrancesPharmaceutical changing roomsMedical manufacturing access pointsControlled laboratory personnel gates
Technical Parameters
Barrier type, passage direction and the compatible hygiene-completion interface are selected around the installed entry sequence.
| Core Material | SUS304 frame with sealed engineering-polymer bearings and drive components |
|---|---|
| Panel Thickness | 1.5–2.0 mm stainless steel drive housing |
| Effective Width | 500–700 mm clear passage |
| Maximum Length | 800–1300 mm overall barrier length |
| Steel Facing Thickness | 1.5–2.0 mm SUS304 |
| Core Density | 1150–1400 kg/m³ for engineering-polymer drive components |
| Thermal Conductivity | 0.20–0.35 W/(m·K) for engineering-polymer drive components |
| Surface Finish | Brushed SUS304 with rounded arms and sealed control pedestal |
| Joint Type | Welded floor-mounted frame with gasketed drive enclosure and modular barrier arms |
| Customization | Available based on the intended application and operating environment. |
Available Options
Tripod or swing barrierEntry-only or bidirectional travelHygiene-equipment completion relayDrop-arm emergency mechanism
Planning a Cleanroom Hygiene Completion Turnstile specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
