Cleanroom Furniture and Stainless Steel Products
Cleanroom Garment Rack
A freestanding electropolished Type 304 stainless rack with an open-wire top shelf, indexed hanger rail and fifteen closed-loop hangers for orderly full-length cleanroom apparel storage.
- Fifteen indexed hanger positions
- Closed-loop stainless hangers
- Open-wire overhead shelf
- Electropolished Type 304 frame
Product Introduction

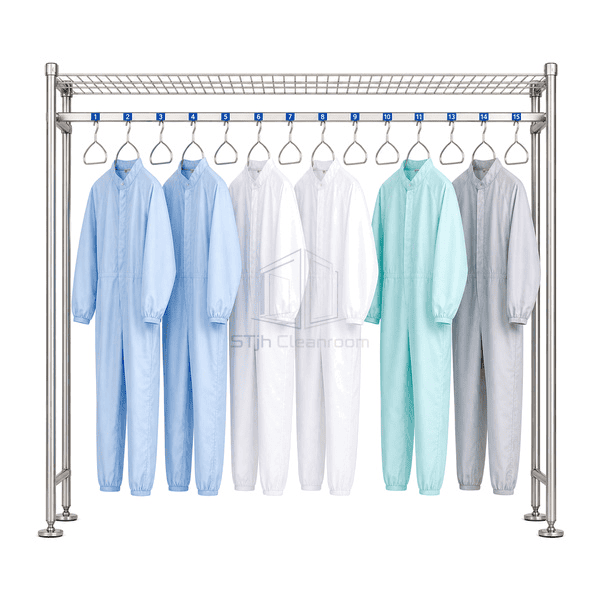

The cleanroom garment rack stores full-length coveralls, frocks and laboratory coats on fifteen closed-loop stainless hangers. A formed rail indexes each hanger at 76 mm centers so garments remain separated instead of sliding together. The overhead open-wire shelf holds lightweight packaged hoods or garment bags without forming a broad airflow obstruction. Electropolished Type 304 tubular uprights, welded cross members and covered leveling feet provide a freestanding structure whose floor area and garment spacing remain visible during housekeeping.
Key Features
Closed-loop electropolished hangers remain captured on the rail while garments are removed or returned.
The open-wire top shelf provides separate storage for sealed hoods and garment packs without covering the hanging zone.

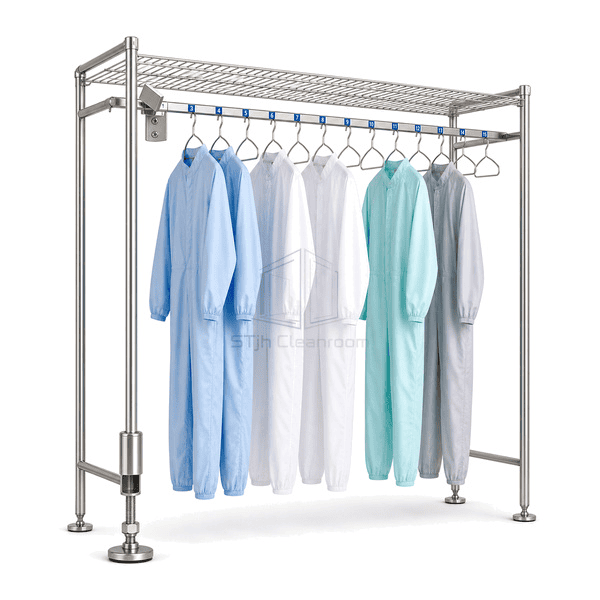

Threaded leveling feet with smooth covers stabilize the tall rack and leave the floor-cleaning perimeter accessible.
Customer Product Concerns
Reusable cleanroom apparel needs defined separation, retained hangers and an open freestanding structure that remains orderly during frequent shift changes.
Loose hangers slide together and allow adjacent clean garments to overlap.Fifteen indexed rail positions hold the captured hangers at regular 76 mm intervals.
Removable hangers disappear or fall onto the floor when operators pull garments quickly.Closed-loop stainless hangers remain mechanically retained on the gowning rail.
Packaged hoods and garment bags occupy benches or become mixed with hanging coveralls.A full-width open-wire top shelf creates a separate visible storage level above the apparel.
Tall freestanding racks rock on imperfect resin or vinyl flooring.Four independently adjustable feet level the frame without closing the cleanable floor clearance.
Typical Applications
Full-length coverall storage in personnel airlocksReusable frock staging in pharmaceutical gowning roomsLaboratory coat organization outside controlled suitesMedical-device clean apparel holdingSemiconductor change-room garment separation
Technical Parameters
Typical configurable specifications for a fifteen-position freestanding cleanroom garment rack are listed below.
| Core Material | Type 304 stainless tubular frame with open-wire top shelf, slotted hanger rail, fifteen closed-loop hangers and covered leveling feet |
|---|---|
| Panel Thickness | 1.5 mm formed hanger rail and shelf perimeter sections |
| Effective Width | 1220 mm overall garment rack width |
| Maximum Length | 1880 mm maximum overall height including leveling feet |
| Steel Facing Thickness | 1.5 mm Type 304 stainless tubular wall thickness |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Uniform electropolished Type 304 frame, wire shelf, hanger rail and closed-loop hangers |
| Joint Type | Fully welded tubular frame with indexed hanger capture rail, removable top shelf and threaded covered leveling feet |
| Customization | Available based on the intended application and operating environment. |
Available Options
Double-sided hanger railMobile 50 mm cleanroom castersWall or floor anchor bracketsNumbered blue hanger-position tags
Planning a Cleanroom Garment Rack specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
