Cleanroom Cleaning, Disinfection and Sterilization
Cleanroom Garment Dryer

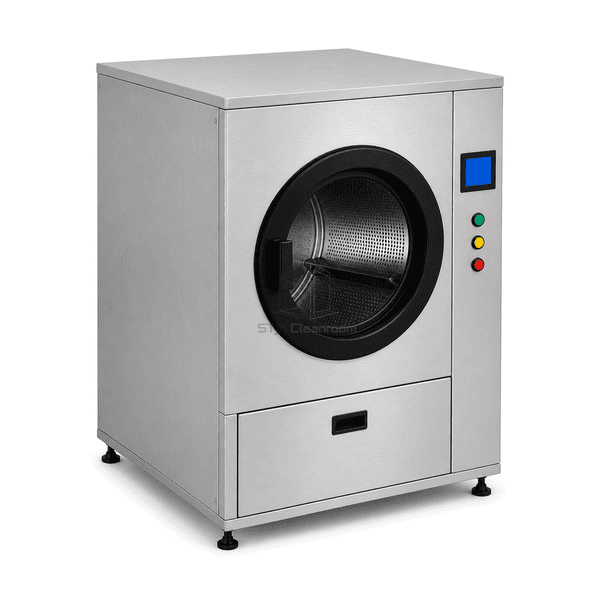

A stainless industrial tumble dryer with controlled airflow, reversing drum action, and moisture-based endpoints for reusable cleanroom garments.
- Filtered, temperature-controlled airflow protects technical textiles
- Reversing stainless drum promotes uniform low-tangle drying
- Moisture sensing reduces unnecessary heat exposure
Product Introduction
The cleanroom garment dryer is designed for controlled drying of washed coveralls, hoods, overshoes, and compatible textile accessories. Stainless load-contact surfaces, a sealed door, reversing drum, accessible lint filter, and programmable controls support repeatable laundry operation. Final cleanliness still depends on upstream washing, dryer location, filtration configuration, and protected post-dry handling.
Key Features
Reversing rotation for reduced tangling
Adjustable temperature and airflow profiles
Residual-moisture sensing and timed modes
Filtered process-air inlet option
Accessible multi-stage lint filtration
Controlled cool-down before unloading
Large gasketed door with safety interlock
Customer Product Concerns
Excessive temperature and overdrying can damage fibers, closures, and conductive features. Poor airflow distribution can leave damp areas, while inaccessible lint accumulation creates housekeeping and maintenance concerns.
Can heat damage cleanroom garments?Recipe-based temperature limits, moisture sensing, and controlled cool-down reduce unnecessary thermal exposure.
How is drying made uniform?Reversing drum action, defined load ratios, and controlled airflow separate garments and distribute heated air through the load.

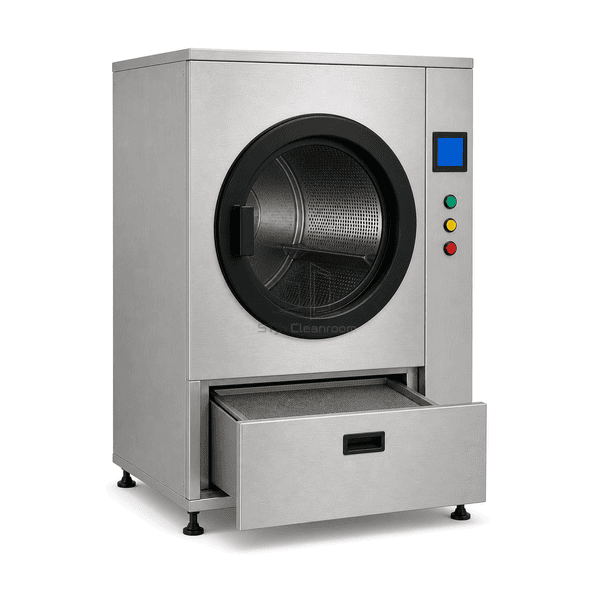

Is lint management accessible?A removable front filter drawer provides a clear inspection and cleaning point without dismantling the drum enclosure.
Can the dryer support a clean laundry route?Stainless cleanable surfaces, filtered inlet-air options, and placement on the processed side reduce post-wash environmental exposure.
Typical Applications
Pharmaceutical cleanroom laundriesSemiconductor garment processingMedical-device production supportBiotechnology controlled facilitiesElectronics cleanroom operationsTechnical textile service centers
Technical Parameters
Conditioned air passes through a rotating perforated drum and garment load before lint filtration and exhaust or recirculation. Programmable temperature, drum direction, airflow, cool-down, and moisture endpoint settings allow the drying profile to follow garment care requirements.
| Core Material | Stainless-steel drum and load-contact parts with reinforced steel frame |
|---|---|
| Panel Thickness | 30–50 mm insulated enclosure panels |
| Effective Width | 600–1000 mm drum and loading-face width |
| Maximum Length | 900–1500 mm overall equipment depth |
| Steel Facing Thickness | 1.0–2.0 mm stainless-steel facing |
| Core Density | 40–60 kg/m³ acoustic and thermal insulation where fitted |
| Thermal Conductivity | 0.035–0.045 W/(m·K) for insulated enclosure sections |
| Surface Finish | Brushed stainless fascia with smooth perforated stainless drum |
| Joint Type | Gasketed interlocked load door with sealed air duct flanges and removable filter connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
10–50 kg nominal dry-load capacitiesElectric, steam, or heat-pump heatingHEPA-filtered makeup airExhaust or partial recirculation configurationResidual-moisture controlDrum speed controlData logging and recipe managementFull stainless external panels
Planning a Cleanroom Garment Dryer specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
