Cleanroom Furniture and Stainless Steel Products
Cleanroom File Cabinet

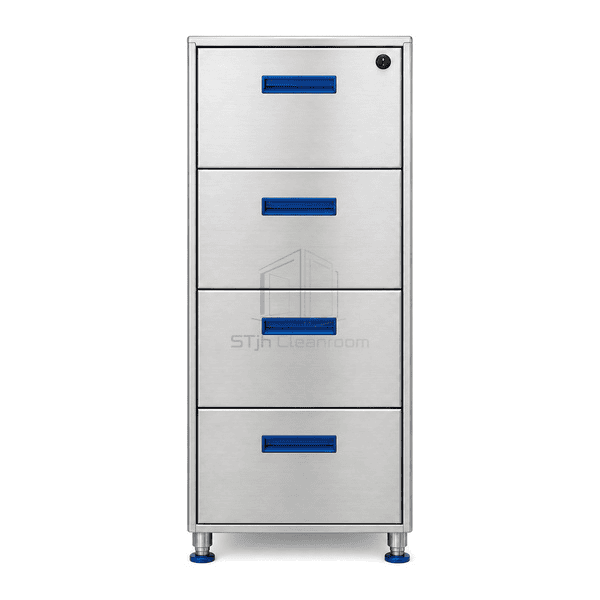

A four-drawer Type 304 stainless filing cabinet with enclosed full-extension runners, adjustable hanging-file rails and one-drawer anti-tilt control.
- Four full-extension file drawers
- A4 and Letter hanging-file rails
- One-drawer anti-tilt interlock
- Central gang lock
Product Introduction

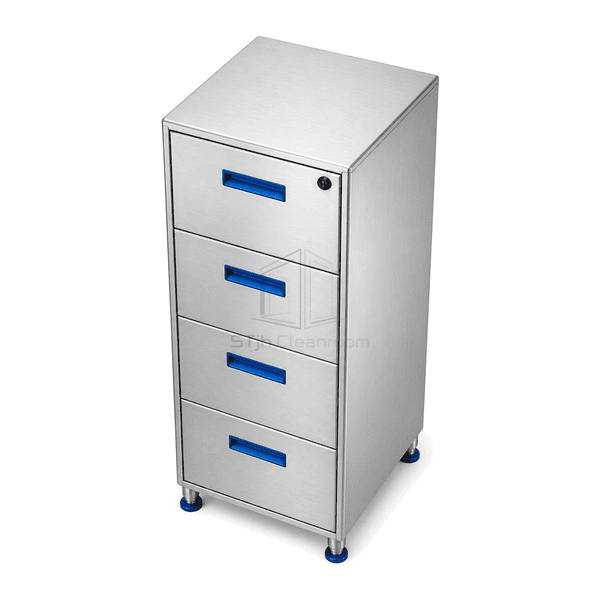

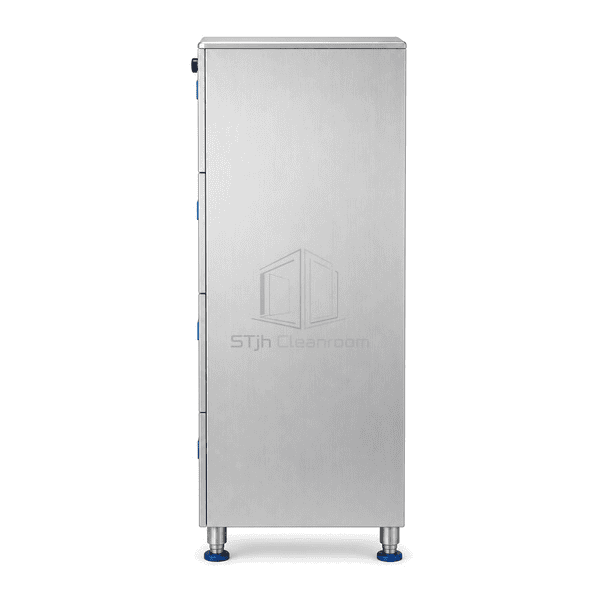

The cleanroom file cabinet stores controlled paper records in four equal-height Type 304 stainless drawers. Each drawer travels on enclosed full-extension runners and contains movable rails that support A4, Letter or Foolscap hanging folders. A mechanical interlock permits only one drawer to extend at a time, reducing the forward overturning moment of the tall narrow cabinet. The central gang lock secures all drawers with one key, while recessed blue label pulls keep identification visible without adding loose adhesive labels. Four leveling feet support the welded cabinet clear of the finished floor.
Key Features

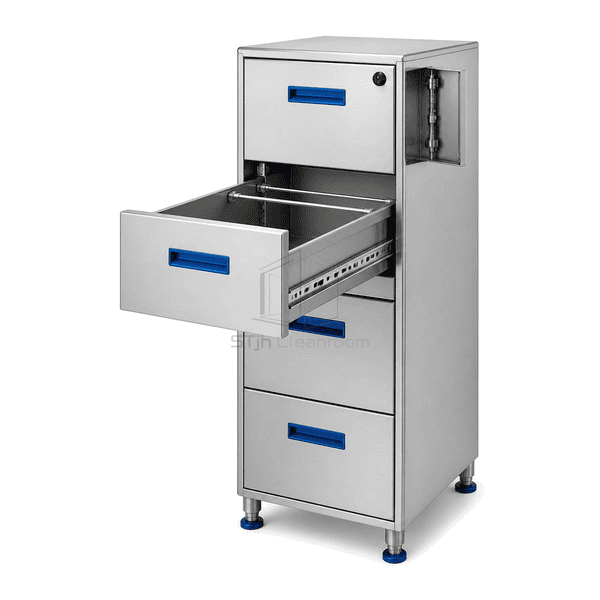

Movable internal rails adapt each drawer to common hanging-folder widths and prevent files from slumping when the drawer is partly filled.
The anti-tilt mechanism blocks the other three drawers after one drawer begins to travel.
A single gang lock secures the full drawer stack, and recessed blue label pulls identify each record group.
Customer Product Concerns
Paper records need dense organized storage, but a tall file cabinet must remain stable and cleanable during frequent drawer access.
Mixed folder sizes collapse or lean when conventional drawers lack adjustable suspension rails.Movable stainless rails hold A4, Letter and Foolscap hanging folders at the correct spacing.
Opening several loaded upper drawers together can destabilize a narrow filing cabinet.The mechanical anti-tilt interlock releases one drawer at a time and blocks the remaining runners.
Separate drawer locks require multiple keys and allow part of the record set to remain unsecured.One central gang lock drives a vertical locking bar across all four drawers.
Protruding handles and paper labels collect residue along the busiest face of the cabinet.Recessed blue label pulls combine the handhold and protected identification recess in one wipeable front detail.
Typical Applications
Controlled batch-record storageQuality-system document filingCleanroom maintenance record archivesLaboratory logbook organizationMedical-device traveler storage
Technical Parameters
Typical configurable specifications for a four-drawer stainless cleanroom file cabinet are listed below.
| Core Material | Type 304 stainless steel welded carcass with four stainless filing drawers, adjustable hanging-file rails and enclosed runners |
|---|---|
| Panel Thickness | 1.0–1.2 mm cabinet body and drawer panels |
| Effective Width | 460–500 mm overall cabinet width |
| Maximum Length | 1330 mm maximum overall cabinet height |
| Steel Facing Thickness | 1.0–1.2 mm Type 304 stainless carcass and drawer fronts |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Brushed No. 4 stainless with cobalt-blue recessed label pulls and black central key lock |
| Joint Type | Welded cabinet body with four full-extension enclosed drawer runners, one-drawer anti-tilt interlock, hanging-file rails and gang locking bar |
| Customization | Available based on the intended application and operating environment. |
Available Options
Two-, three- or four-drawer cabinet heightsA4, Letter, Legal or Foolscap folder railsKeyed-different or master-key gang lockFixed leveling feet or mobile lockable base
Planning a Cleanroom File Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
