Cleanroom Curtain

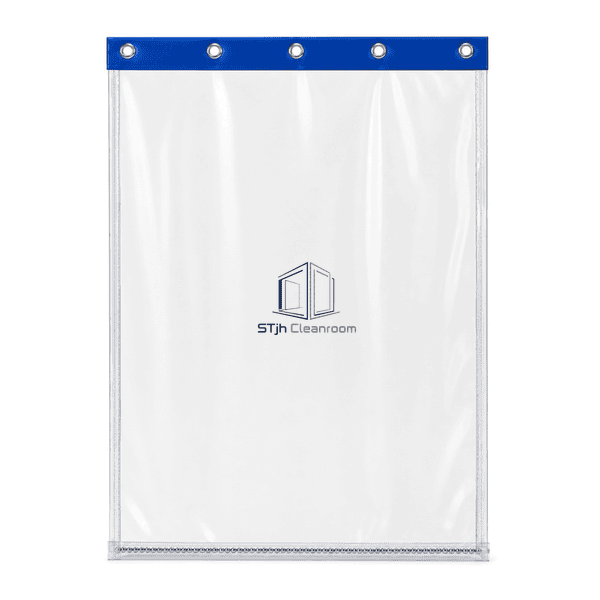

Clear flexible PVC cleanroom curtain panel with a reinforced hanging header, sealed edges and a weighted lower pocket for softwall separation.

Clear flexible PVC maintains sightlines across separated work zones
Reinforced hanging header supports repeated installation and removal
Weighted lower pocket steadies the panel under controlled airflow

Request a Quote Browse Products

Product Introduction

The Cleanroom Curtain forms a transparent, wipeable boundary around controlled work areas without the footprint of a rigid wall. A double-polished flexible PVC sheet is finished with heat-sealed side edges, a reinforced hanging header and a weighted bottom pocket. Adjacent panels can be overlapped to reduce open seams while preserving quick personnel access and clear visibility between zones.

Key Features

Transparent panel preserves supervision and ambient light transmission

Smooth PVC surface can be wiped during routine area cleaning

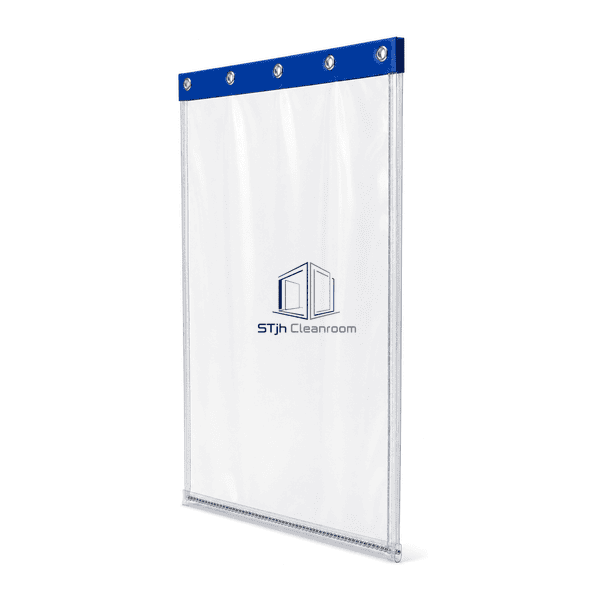

RF-welded edge construction avoids exposed cut-film margins

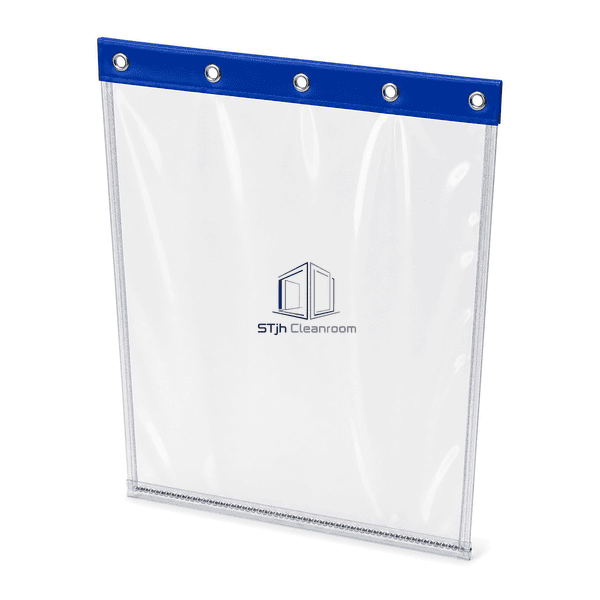

Reinforced top band distributes load around the suspension points

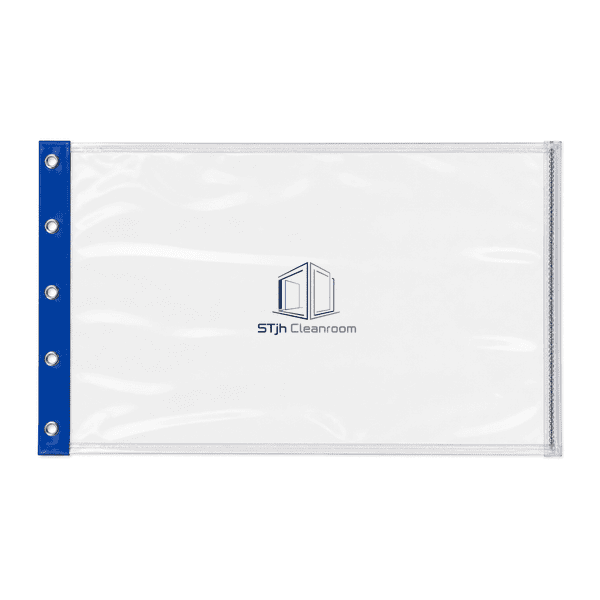

Encapsulated lower chain limits flutter without a bulky floor rail

Customer Product Concerns

Softwall performance depends on correct overlap, stable hanging geometry and compatible cleaning chemistry. Gaps, curled edges or damaged suspension points can weaken the intended airflow boundary.

Curtain seams may open when panel overlap is insufficient.Size the panels with a defined overlap and verify their resting position after installation.

Air movement can lift a lightweight lower edge away from its position.Use a continuous weighted bottom pocket suited to the expected air velocity.

Harsh solvents can cloud, harden or extract plasticizer from flexible PVC.Select an approved neutral cleaner and test chemical compatibility before broad use.

Concentrated loading around the header can tear an unsupported sheet.Specify a welded reinforced header with evenly distributed suspension points.

Typical Applications

For perimeter walls on modular softwall cleanrooms, local laminar-flow work zones, equipment isolation, temporary process separation, gowning-area partitions and controlled manufacturing cells.

Technical Parameters

The ranges below describe clear flexible-PVC curtain panels commonly used for modular softwall enclosures and local process separation. Finished width, drop, overlap and suspension details can be adjusted to the opening and cleaning method.

Core Material	Clear double-polished flexible PVC sheet with PVC-reinforced header and weighted lower pocket
Panel Thickness	0.5-1.0 mm flexible PVC film
Effective Width	1200-1370 mm nominal finished panel width
Maximum Length	6000 mm finished curtain drop
Steel Facing Thickness	0 mm; no steel facing on the flexible panel
Core Density	1220-1300 kg/m³ flexible PVC
Thermal Conductivity	Approximately 0.16 W/(m·K) for flexible PVC
Surface Finish	Clear double-polished, smooth wipeable PVC with a colored reinforced header
Joint Type	RF-welded perimeter hems with eyelet suspension, panel overlap and weighted bottom pocket
Customization	Available based on the intended application and operating environment.

Available Options

0.5 mm or 1.0 mm clear PVC filmCustom panel width, drop and overlap allowanceClear, frosted or UV-filtering visual finishColored reinforced top header for zone identificationEyelet, hook-bead, round-bead or sliding-track suspensionWeighted chain pocket or plain sealed lower hem
