Cleanroom Furniture and Stainless Steel Products
Cleanroom Computer Workstation
A cleanable digital work station that integrates a monitor, keyboard and computer hardware without sacrificing the usable stainless work surface.
- Sealed stainless work surface
- Adjustable monitor support
- Retractable keyboard tray
- Protected underbench CPU rack
Product Introduction

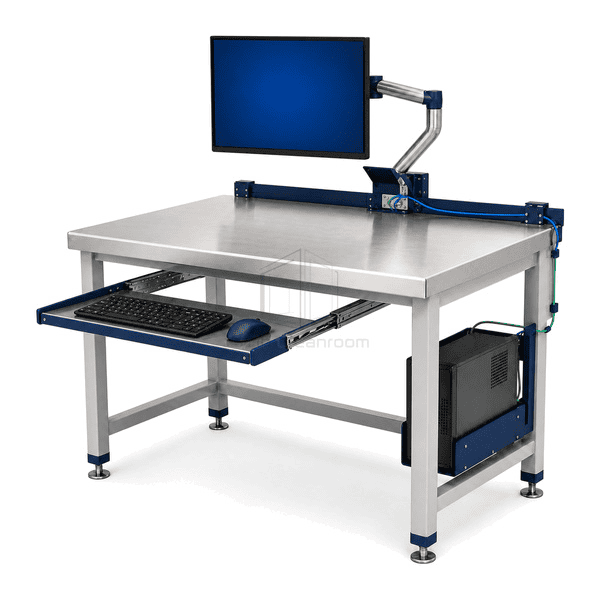

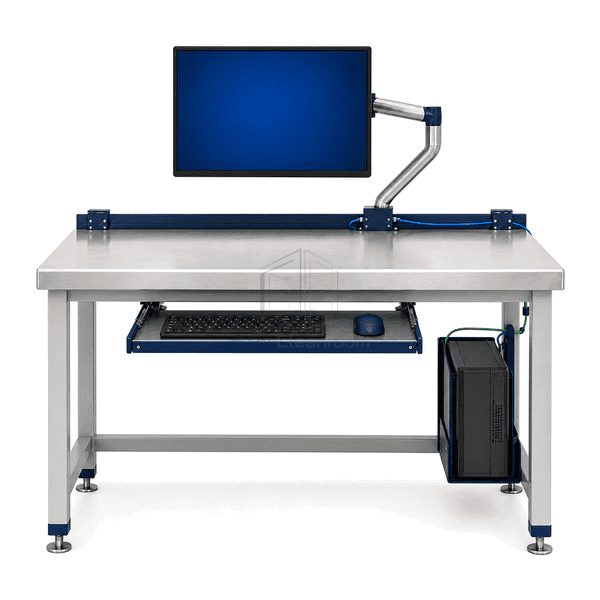

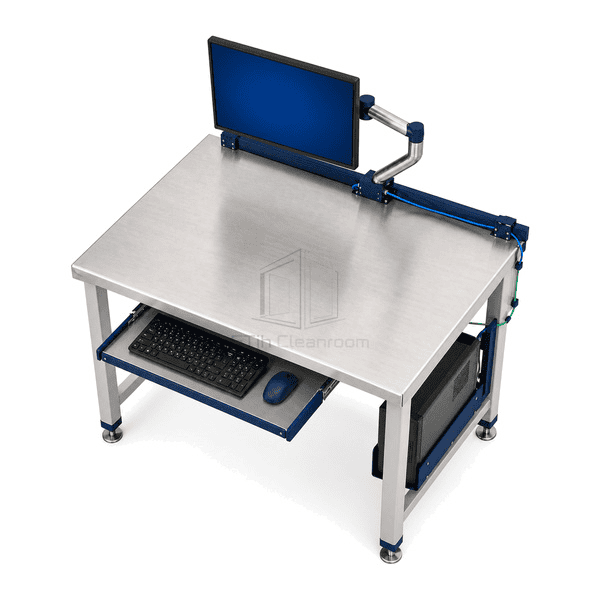

The cleanroom computer workstation combines a fully encased Type 304 stainless work surface with a rigid, sealed powder-coated frame. A rear accessory rail carries the monitor arm above the bench, while the keyboard retracts beneath the front edge when it is not in use. The computer tower is supported in an open-sided underbench rack rather than standing on the floor, keeping service cables organized and preserving access for routine cleaning. Separate equipment mounts allow the screen, keyboard and CPU to be adjusted without drilling uncontrolled openings through the work surface.
Key Features
A retractable keyboard platform protects the input device between tasks while maintaining a natural operator reach.

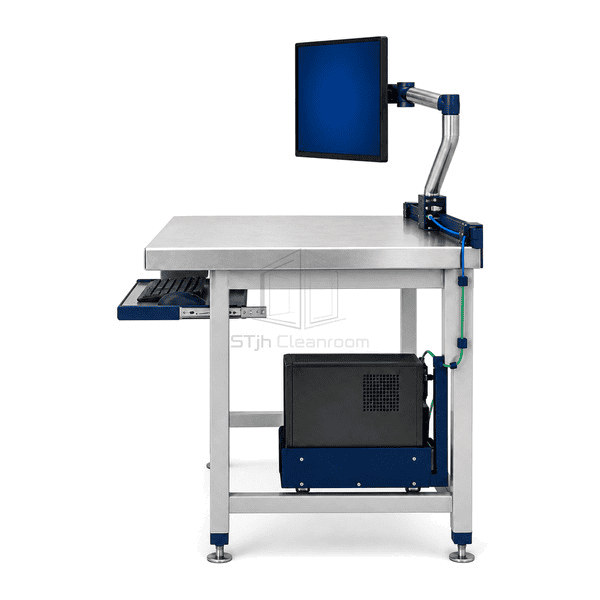

The suspended CPU rack keeps computer hardware clear of the floor and leaves ventilation and service panels accessible.
A rear cable route separates power and data leads from the front operator area instead of allowing loose loops across the bench.
Customer Product Concerns
Conventional office desks introduce loose hardware, floor-level computer towers and unmanaged cables into controlled work areas.
A monitor base and full-size keyboard consume the surface needed for paperwork and product handling.The raised monitor arm and retractable keyboard tray recover the central stainless work zone.
A computer tower placed on the floor obstructs cleaning and is exposed to accidental contact.The suspended CPU rack keeps the tower off the floor while retaining open access to its ventilation and service side.
Loose power, network and peripheral cables cross the operator area and form difficult-to-clean loops.A defined rear cable route carries separate power and data leads toward the CPU without crossing the main work surface.
Computer accessories are frequently improvised onto a bench with clamps and penetrations that do not match the furniture.One registered accessory rail accepts the monitor, keyboard and cable hardware as an integrated workstation assembly.
Typical Applications
Electronic batch-record entryClean manufacturing production terminalsLaboratory information-system accessBarcode and label verificationIn-process inspection data capture
Technical Parameters
Typical configurable specifications for a cleanroom computer workstation are listed below.
| Core Material | Type 304 stainless steel work surface on a sealed powder-coated steel frame with stainless and aluminum equipment mounts |
|---|---|
| Panel Thickness | 25–35 mm fully encased work-surface assembly |
| Effective Width | 600–750 mm work-surface depth |
| Maximum Length | 1800 mm workstation length |
| Steel Facing Thickness | 1.2–1.5 mm Type 304 stainless work-surface skin and CPU-rack panels |
| Core Density | 7900–8000 kg/m³ for the Type 304 stainless work-surface skin |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Brushed No. 4 stainless top with light-gray and blue cleanroom powder-coated support components |
| Joint Type | Bolted rear accessory rail with a sealed monitor arm, retractable keyboard slide and suspended CPU cradle |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single or dual articulated monitor armsLockable ventilated CPU enclosureLeveling feet or locking cleanroom castersIntegrated power, network and barcode-scanner mounts
Planning a Cleanroom Computer Workstation specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
