Cleanroom Furniture and Stainless Steel Products
Cleanroom Chair

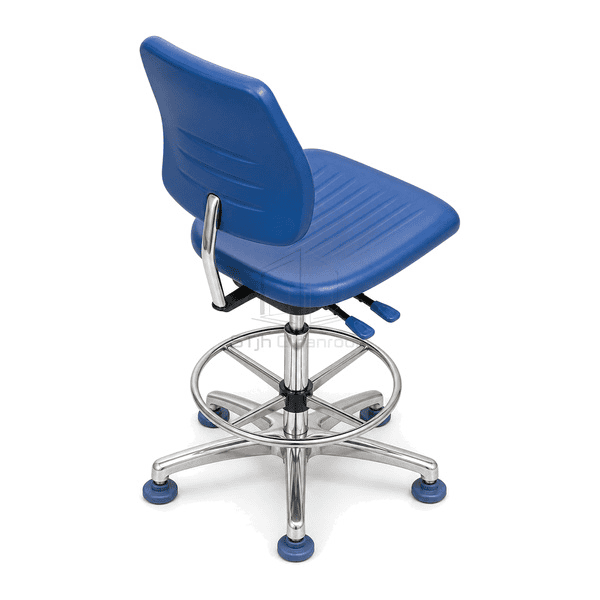

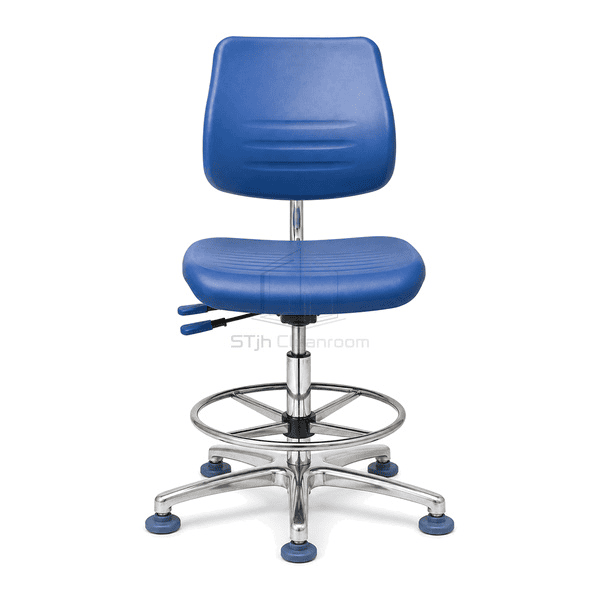

A height-adjustable cleanroom chair with a blue self-skinned polyurethane seat and backrest, sealed control surfaces, polished five-star base and stable non-marking glides.
- Self-skinned polyurethane seat and back
- Capped pneumatic height control
- Independent backrest adjustment
- Polished five-star base with glides
Product Introduction
The cleanroom chair combines a molded blue polyurethane seat and shaped backrest with a capped pneumatic column and polished aluminum five-star base. Self-skinned surfaces avoid stitched upholstery seams and expose smooth radiused edges for wipe-down. Separate under-seat levers adjust seat height and backrest position, while a circular stainless footring supports bench-height work. Non-marking glides provide a stable standard configuration for seated precision tasks where uncontrolled chair movement is undesirable.
Key Features

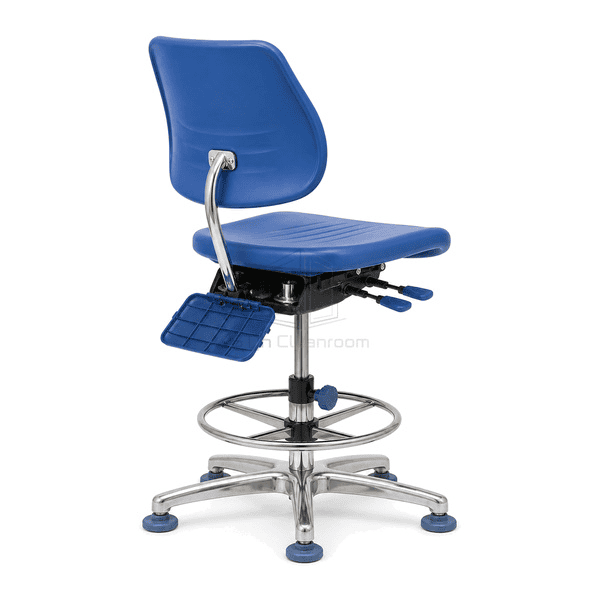

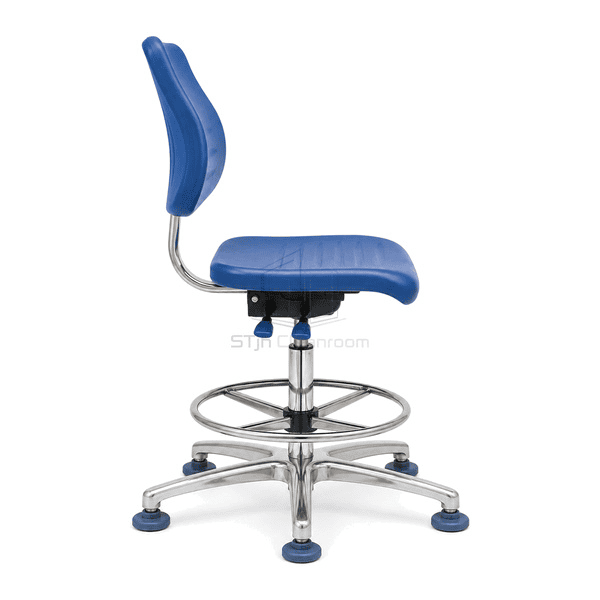

A capped gas-lift column changes working height while shielding the moving pneumatic assembly.
Independent back-height and back-angle controls place lumbar support without adding bulky upholstered mechanisms.
The polished five-star base, adjustable footring and non-marking glides support stable bench-height positioning.
Customer Product Concerns
Cleanroom operators need adjustable support without stitched coverings, exposed foam or uncontrolled rolling around a precision workstation.
Fabric seams and exposed cushion undersides are difficult to wipe and can release fibres.Molded self-skinned polyurethane encloses the seat and back in continuous non-fabric surfaces.
A fixed chair height forces technicians to lift their shoulders at different bench levels.The capped pneumatic column provides a 440–620 mm seat-height range for desk and bench tasks.
One-piece seating does not place back support correctly for different users.Separate back-height and back-angle adjustments position the shaped support independently of the seat.
Free-rolling casters allow the chair to drift during microscope or hand-assembly work.Five non-marking cleanroom glides create a stable footprint in the standard configuration.
Typical Applications
Cleanroom inspection benchesPharmaceutical packaging workstationsOptical assembly stationsMedical-device production seatingControlled laboratory instrument work
Technical Parameters
Typical configurable specifications for a non-ESD polyurethane cleanroom chair are listed below.
| Core Material | Blue self-skinned polyurethane seat and backrest on a polished aluminum five-star base with capped pneumatic column |
|---|---|
| Panel Thickness | 38 mm nominal molded seat thickness |
| Effective Width | 470 mm usable seat width |
| Maximum Length | 1020 mm maximum overall height with the backrest raised |
| Steel Facing Thickness | 2.0 mm stainless footring tube wall thickness |
| Core Density | 400–550 kg/m³ for self-skinned molded polyurethane |
| Thermal Conductivity | 0.035–0.055 W/(m·K) for molded polyurethane seating |
| Surface Finish | Medium-blue integral-skin polyurethane with polished aluminum base and brushed stainless footring |
| Joint Type | Tapered gas-lift socket, sealed under-seat control plate, clamped adjustable backbar and five replaceable glides |
| Customization | Available based on the intended application and operating environment. |
Available Options
Low, medium or high gas-lift rangePolyurethane resistance castersBlack or light-gray polyurethaneArmrest-free seat with no footring
Planning a Cleanroom Chair specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
