Cleanroom Lighting and Electrical Equipment

Cleanroom CCTV Camera

A sealed stainless dome camera that provides network video without exposed fans, rough castings or open cable connections.

Electropolished Stainless Housing
Sealed Clear Dome
PoE Network Connection
Low-Profile Ceiling Mount

Request a Quote Browse Products

Product Introduction

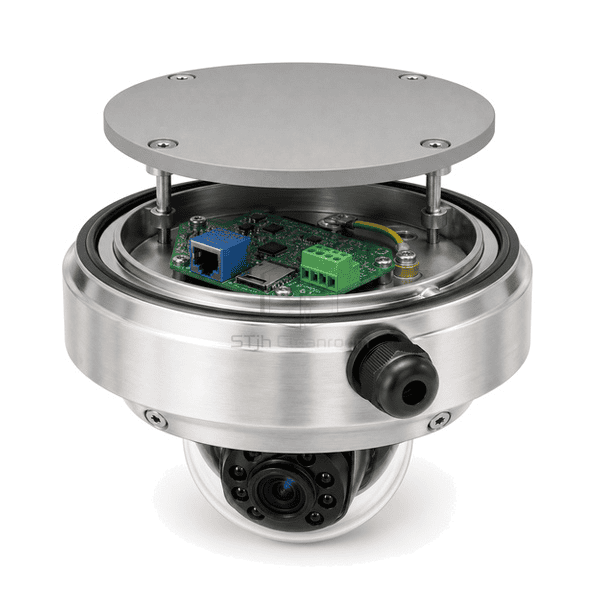

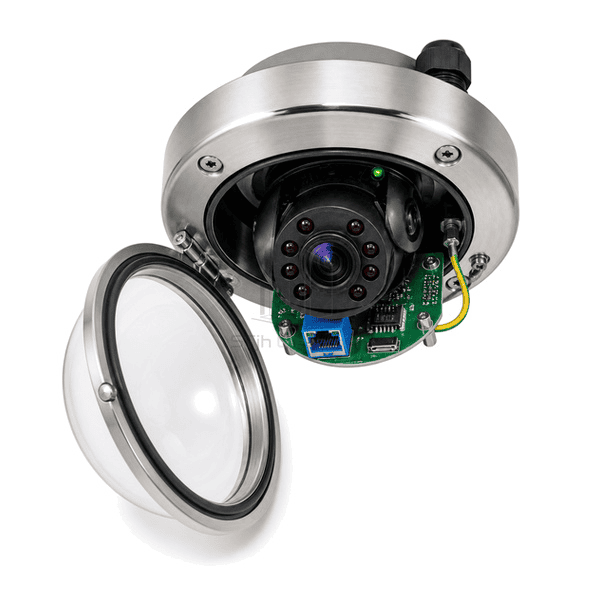

The cleanroom camera encloses its sensor, lens and processor within a 316L stainless body and hard-coated transparent dome. PoE supplies both power and data through one rear gland or conduit entry. A low-profile ceiling or wall base covers the mounting cutout, while the smooth corrosion-resistant exterior tolerates repeated cleaning around the surveillance point.

Key Features

The stainless shell resists corrosion from common controlled-area cleaning routines.

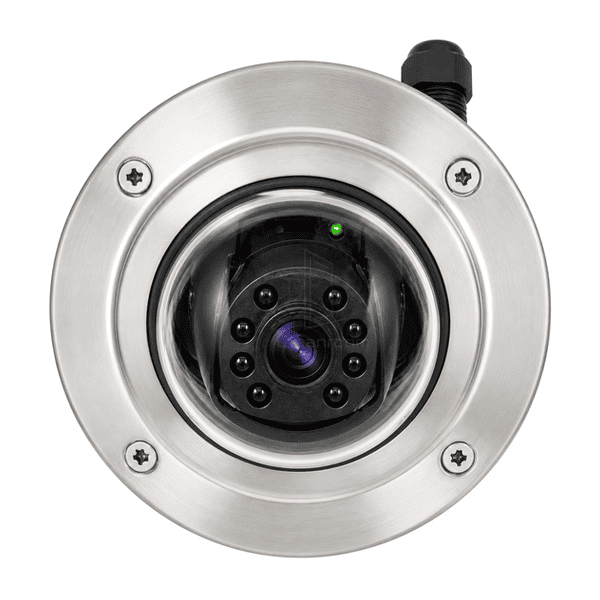

A clear sealed dome protects lens adjustment without an open optical cavity.

PoE reduces separate power and network penetrations.

A compact fixed-dome profile avoids projecting pan-and-tilt mechanisms.

Optional edge storage can retain video during temporary network interruptions.

Customer Product Concerns

Video monitoring must preserve image clarity while the housing, optical window and network cable remain sealed and cleanable.

A painted camera housing corrodes under repeated cleaning chemicals.Electropolished 316L stainless provides a more durable exposed shell.

Multiple cable entries complicate the ceiling penetration.PoE carries power and data through one sealed connection.

Cleaning haze reduces image quality through a scratched cover.A hard-coated smooth dome protects the optical path and supports gentle wiping.

A network outage creates gaps in recorded evidence.Local edge storage retains video until connectivity is restored.

Typical Applications

Cleanroom process observationAirlock monitoringMaterial transfer supervisionCritical equipment recording

Technical Parameters

Typical configurable construction ranges for a cleanroom CCTV camera are listed below.

Core Material	SUS316L camera housing with polycarbonate dome, image sensor, fixed or varifocal lens and PoE electronics
Panel Thickness	70-140 mm complete dome-camera depth
Effective Width	120-220 mm housing diameter
Maximum Length	Up to 260 mm overall camera dimension
Steel Facing Thickness	1.5-3.0 mm stainless housing wall and mounting base
Core Density	Approximately 7900-8000 kg/m³ for SUS316L housing material
Thermal Conductivity	14-16 W/(m·K) for the stainless housing
Surface Finish	Electropolished or fine-brushed stainless with clear hard-coated dome and black internal lens mask

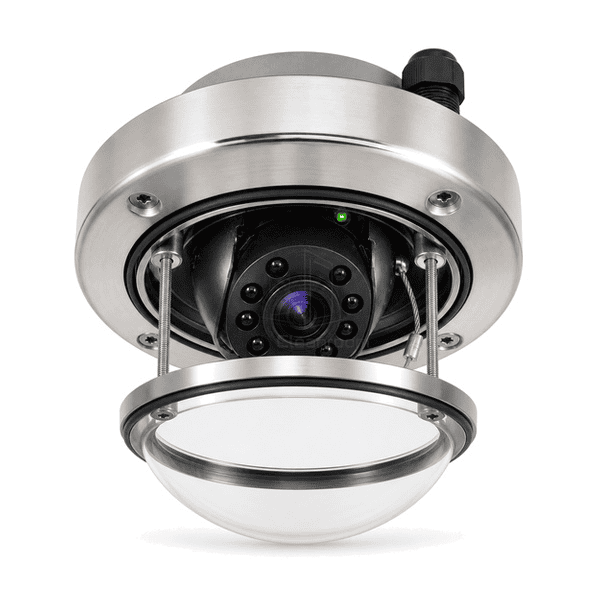

Joint Type	Gasketed dome-to-base seal with captive stainless screws and rear PoE cable gland or conduit hub
Customization	Available based on the intended application and operating environment.

Available Options

Fixed or varifocal lensStandard or panoramic field of viewInfrared illumination with edge storageWall, ceiling or pendant mount

Planning a Cleanroom CCTV Camera specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
