Cleanroom Belt Conveyor

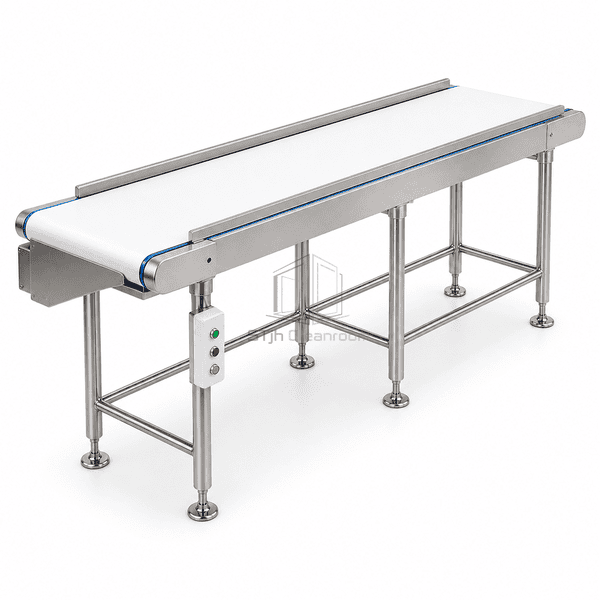

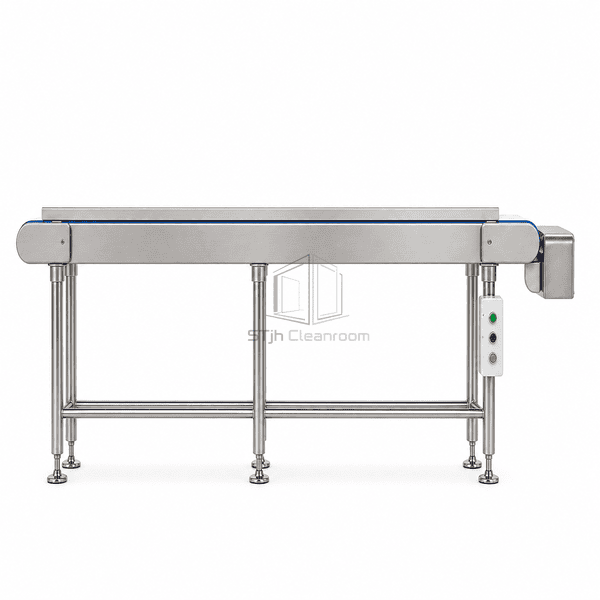

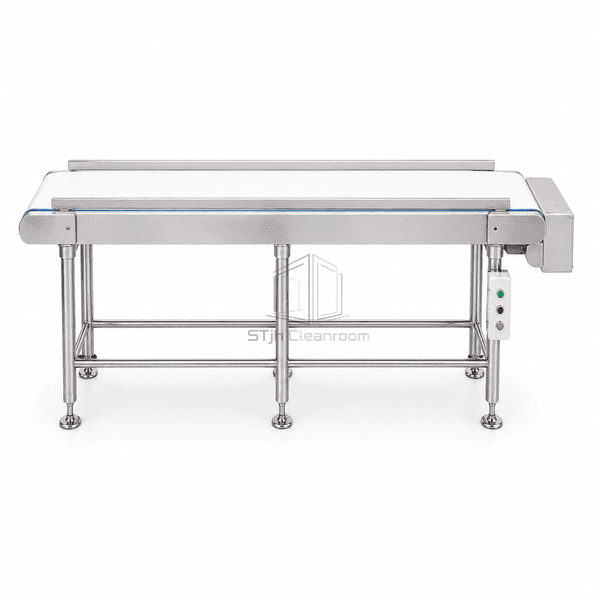

A stainless cleanroom belt conveyor with a sealed-edge polyurethane belt, enclosed drive and adjustable low-crevice support frame.

Sealed-edge homogeneous belt supports low-particle transport

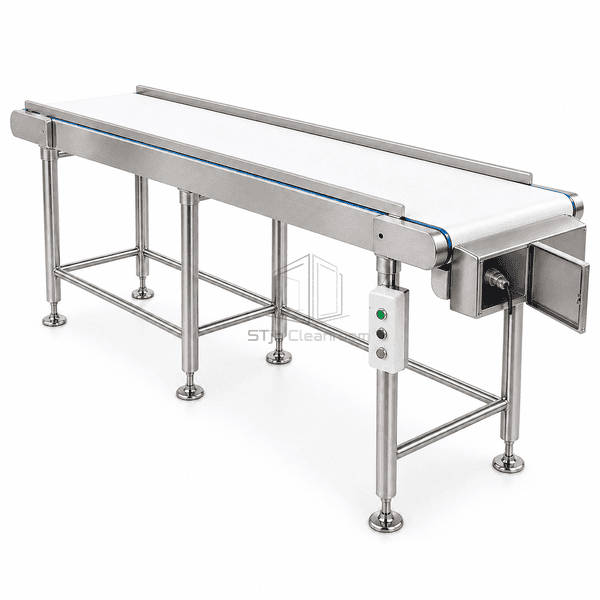

Enclosed drum drive removes exposed transmission components
Open stainless frame provides straightforward cleaning access

Request a Quote Browse Products

Product Introduction

This conveyor combines a homogeneous polyurethane belt with smooth stainless guides, a cleanable slider bed and a sealed drum-motor drive. The open tubular base permits access around support members, while enclosed controls and concealed cables keep the working area orderly.

Key Features

Sealed belt edges reduce exposed reinforcement and fraying.

Smooth jacket drum motor contains gears, bearings and lubricant.

Stainless slider bed supports stable, low-vibration transport.

Adjustable feet align transfer height with adjacent machinery.

Simple guide rails can be configured around each load format.

Customer Product Concerns

Ordinary belt conveyors can introduce fraying edges, exposed gear drives and difficult-to-clean support cavities into sensitive production areas.

Belt-edge particle generationA homogeneous belt with sealed blue edges limits exposed fibers.

Lubricant or wear debris near productThe drive mechanism is enclosed inside the drum housing.

Residue under the conveyorThe open tubular base remains accessible for routine cleaning.

Poor machine-to-machine alignmentThreaded leveling feet set the required transfer height.

Typical Applications

Clean transfer of packaged devices, trays, optical parts, electronics assemblies and closed pharmaceutical containers between processing stations.

Technical Parameters

Working width, length, belt compound, speed and guide spacing are selected for the carried component and cleaning regime. Low-wear belt support and sealed drive construction minimize avoidable particle sources near the product path.

Core Material	Type 304 stainless frame with homogeneous polyurethane belt and sealed stainless drum motor
Panel Thickness	2.0–3.0 mm frame wall and drive-cover sections
Effective Width	300–800 mm belt working width
Maximum Length	Up to 6000 mm per conveyor module
Steel Facing Thickness	1.5–2.5 mm side frame and control enclosure
Core Density	7930 kg/m³ nominal stainless steel density
Thermal Conductivity	Approximately 16.2 W/(m·K) at room temperature
Surface Finish	Fine-brushed or electropolished stainless steel with matte sealed-edge belt
Joint Type	Bolted modular frame with continuous slider bed, sealed drum drive and adjustable guide rails
Customization	Available based on the intended application and operating environment.

Available Options

Antistatic belt compounds, vacuum extraction, variable speed, sensors, indexing controls, removable guides, knife-edge transfers and custom heights.
