Cleanroom Material Handling and Storage

Cleanroom AMR

A hygienic stainless cleanroom autonomous mobile robot with 360-degree sensing, dynamic navigation and a modular payload interface.

Autonomous mapping adapts routes around changing cleanroom traffic
Encapsulated stainless platform protects sensors and drive components
Modular flat top accepts application-specific payload interfaces

Request a Quote Browse Products

Product Introduction

This AMR uses a smooth encapsulated body, lidar and stereo vision to localize within the facility and plan around obstacles. A flat six-point top interface accepts carts, racks or process modules, while sealed drives, protected sensors and inductive charging support automated clean-area logistics.

Key Features

Dynamic path planning responds to temporary route obstructions.

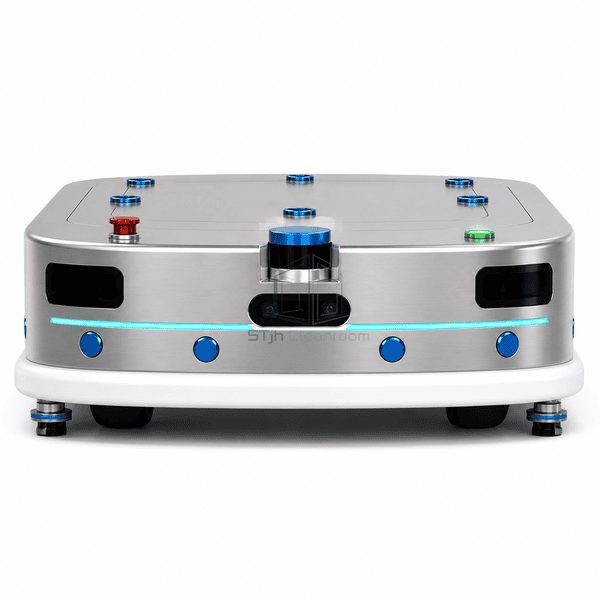

Lidar, stereo vision and safety laser fields provide layered perception.

Encapsulated stainless panels tolerate routine cleanroom wipe-down.

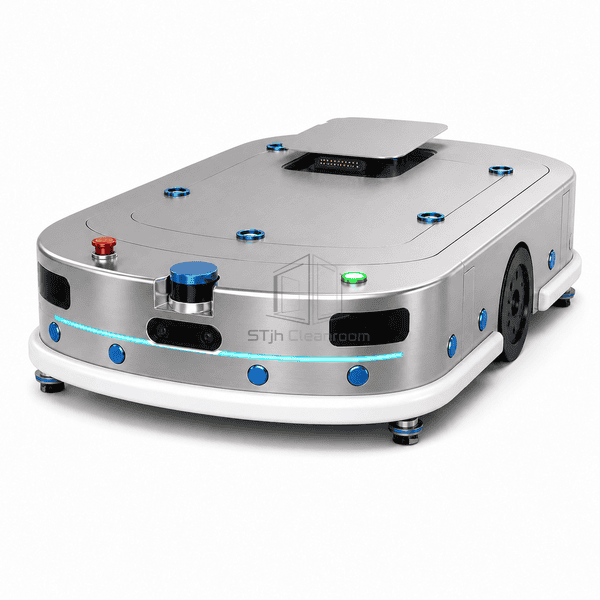

Six-point top interface supports interchangeable payload modules.

Inductive charging avoids exposed charging contacts.

Customer Product Concerns

Fixed guided routes can become inefficient when operators, carts or temporary equipment change the available travel path.

Blocked planned routeThe AMR maps obstacles and selects an available path within configured rules.

Blind spots near personnelLidar, stereo vision, safety windows and ultrasonic sensors provide overlapping detection.

Different transport tasksThe flat six-point interface accepts task-specific top modules.

Exposed charging hardwareInductive charging transfers power without open electrical contacts.

Typical Applications

Autonomous movement of clean carts, material racks, sample carriers and modular process payloads in pharmaceutical, biotech, medical-device and semiconductor facilities.

Technical Parameters

Navigation maps, safety zones, payload adapter and fleet rules are configured for the facility. Sensor placement, body sealing and modular connections minimize exposed components while retaining service access.

Core Material	Type 316L stainless encapsulated body with lidar, stereo camera and electric battery drive
Panel Thickness	2.0–3.0 mm external body and service panels
Effective Width	600–1000 mm modular top interface width
Maximum Length	Up to 1600 mm vehicle length
Steel Facing Thickness	1.5–2.5 mm
Core Density	8000 kg/m³ nominal 316L stainless steel density
Thermal Conductivity	Approximately 14.6 W/(m·K) at room temperature
Surface Finish	Fine-brushed and passivated stainless steel with sealed high-tech polymer bumper
Joint Type	Gasketed modular body with recessed sensor windows, sealed drive modules and six-point top interface
Customization	Available based on the intended application and operating environment.

Available Options

Cart docking, roller tops, lift modules, robotic arms, ESD configuration, fleet management, facility-system interfaces and VHP-resistant component packages.
