Industry-Specific Cleanroom Equipment

Chemical Supply Cabinet

A chemical-resistant cleanroom cabinet that organizes reagent containers within ventilated compartments, adjustable shelving and an integral spill-retention base.

Corrosion-Resistant Enclosure
Ventilated Storage
Integral Spill Sump
Visible Secured Inventory

Request a Quote Browse Products

Product Introduction

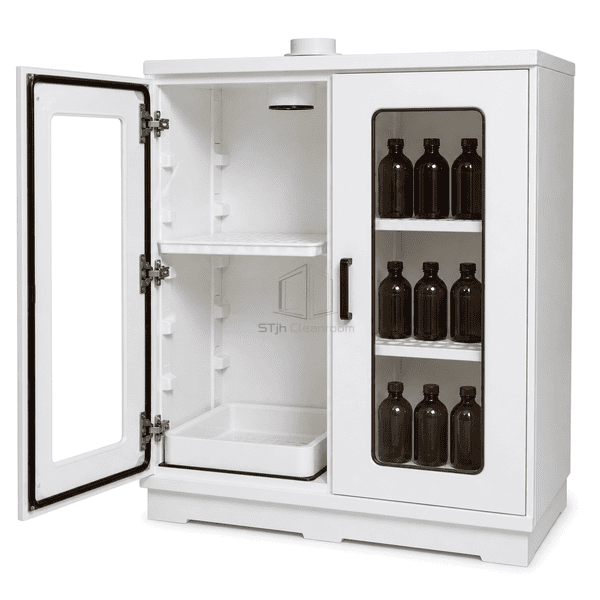

The chemical supply cabinet uses welded polypropylene construction and corrosion-resistant hardware to store compatible process liquids near controlled production areas. Transparent static-dissipative windows provide inventory visibility without opening the doors, while adjustable perforated shelves permit airflow around containers. An integral lower sump contains incidental drips, and the cabinet may connect to facility exhaust or a selected recirculating filter module.

Key Features

Polypropylene enclosure and shelves tolerate frequent wipe-down and a broad range of compatible chemicals.

Perforated adjustable shelves maintain organized storage while supporting cabinet airflow.

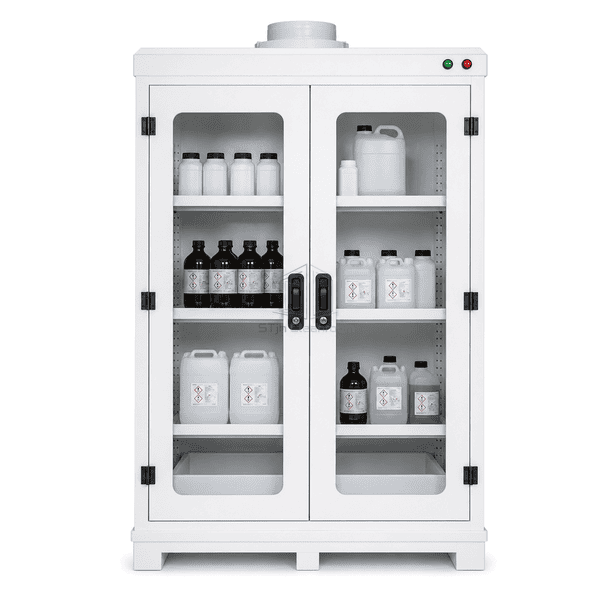

Clear static-dissipative windows reduce unnecessary door opening and particle attraction.

Raised thresholds and a removable lower sump contain incidental liquid leakage.

Customer Product Concerns

Chemical containers in clean areas require compatible surfaces, controlled ventilation and rapid visibility of leaks or inventory condition.

Corrosive residues damage painted or plated storage hardware.Polypropylene panels and stainless corrosion-resistant hinges reduce flaking and chemical attack.

Opening opaque doors repeatedly disrupts cabinet conditions.Transparent static-dissipative windows allow visual inventory checks with doors closed.

Small container leaks can spread beneath the cabinet.An integral removable sump and raised front lip retain incidental spills for controlled cleanup.

One fixed shelf layout wastes capacity across different bottle sizes.Adjustable perforated shelves can be repositioned to suit the stored container range.

Typical Applications

Semiconductor process chemical storageCleanroom reagent stagingLaboratory corrosive-material storagePrecision manufacturing supply areas

Technical Parameters

Typical construction values for a ventilated cleanroom chemical supply cabinet are listed below.

Core Material	Welded chemical-resistant polypropylene with static-dissipative PVC viewing panels
Panel Thickness	8-15 mm polypropylene panels
Effective Width	650-1600 mm cabinet width
Maximum Length	Up to 1800 mm multi-compartment cabinet length
Steel Facing Thickness	1.0-1.5 mm stainless steel hinge and shelf-support components
Core Density	900-920 kg/m³ for polypropylene construction sheet
Thermal Conductivity	0.20-0.24 W/(m·K) for polypropylene construction
Surface Finish	Smooth natural-white polypropylene with clear static-dissipative viewing panels
Joint Type	Hot-gas welded cabinet seams with gasketed self-closing doors, adjustable shelf rails and flanged exhaust connection
Customization	Available based on the intended application and operating environment.

Available Options

Facility-ducted or filtered recirculating ventilationSingle or independently divided compartmentsHEPA and selected activated-carbon modulesLocking doors, casters and adjustable stands
