Industry-Specific Cleanroom Equipment

Aseptic Material Transfer Cart

A mobile HEPA-filtered stainless cart that maintains a protected enclosure around sterile materials while they move between cleanroom processing steps.

Mobile HEPA Protection
Gasketed Glass Door
Three Perforated Shelves
Cleanroom Swivel Casters

Request a Quote Browse Products

Product Introduction

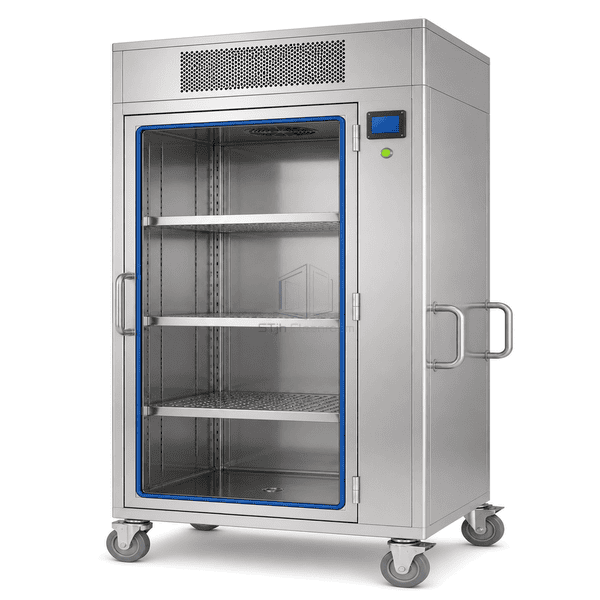

The aseptic material transfer cart combines a sealed stainless cabinet with a compact fan-filter module that delivers filtered air through the storage zone. Three perforated shelves allow circulation around trays and components, while the clear gasketed door limits exposure during movement. Cleanroom casters, rear push handles and onboard controls support controlled transfers between filling, preparation and staging areas.

Key Features

Overhead filtered airflow purges particles from the enclosed storage zone.

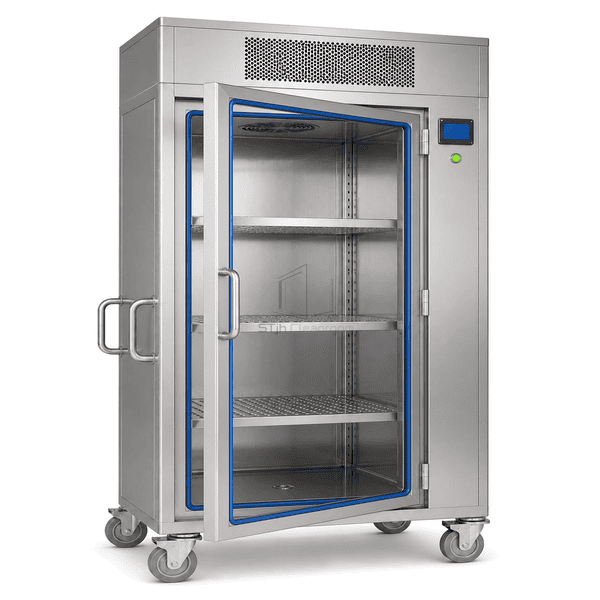

A blue silicone gasket seals the full-height glass access door.

Three removable perforated shelves support airflow around different load heights.

Four swivel casters and rear handles provide controlled cleanroom maneuvering.

Customer Product Concerns

Unprotected carts expose sterilized components to room particles and turbulent air while materials move between controlled operations.

Sterile loads can collect particles during corridor transfer.The enclosed cabinet and filtered airflow maintain a protected local environment around the load.

Solid shelves obstruct air circulation around stacked trays.Perforated shelf decks distribute airflow through all three storage levels.

Opening a large door can make cleaning and inspection awkward.The single clear door provides full-height access and direct visual confirmation of the interior.

Conventional wheels can shed particles or be difficult to steer.Cleanroom-compatible swivel casters and rigid push handles improve controlled movement.

Typical Applications

Sterile component transportAseptic filling-line replenishmentVial and syringe tray movementCleanroom staging between process rooms

Technical Parameters

Typical configurable construction values for a mobile aseptic transfer cart are listed below.

Core Material	316L stainless-steel cabinet with safety-glass door, silicone gasket and HEPA fan module
Panel Thickness	30-60 mm cabinet and airflow plenum sections
Effective Width	600-1000 mm usable shelf width
Maximum Length	Up to 1400 mm overall cart length including handles
Steel Facing Thickness	1.0-1.5 mm stainless cabinet skin and shelf construction
Core Density	7950-8050 kg/m³ for stainless-steel construction
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Satin or electropolished stainless surfaces with perforated shelf decks
Joint Type	Continuously sealed cabinet seams with gasketed hinged glass door and removable shelf supports
Customization	Available based on the intended application and operating environment.

Available Options

Horizontal or vertical unidirectional airflowBattery or facility-power operationAlternative shelf count and spacingPressure, airflow and battery-status monitoring
