Aseptic Isolator

A closed stainless barrier system that combines HEPA-controlled airflow, glove access, decontamination and sealed transfer interfaces for critical aseptic operations.

Closed Aseptic Barrier
HEPA Unidirectional Airflow
Automated H2O2 Cycle
Validated Transfer Interfaces

Request a Quote Browse Products

Product Introduction

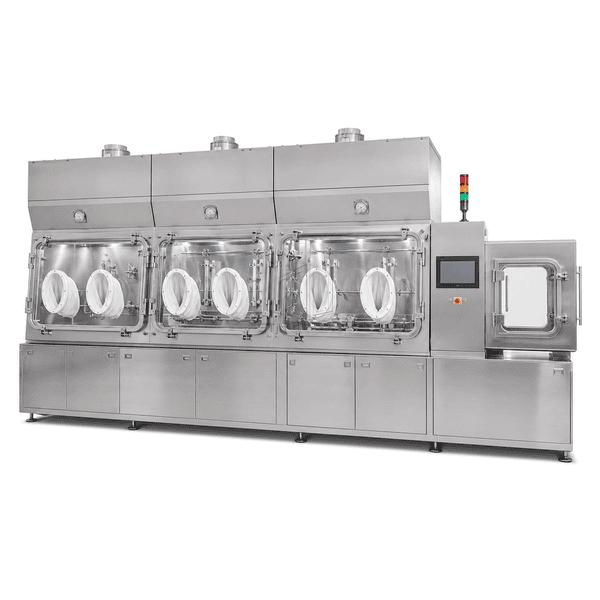

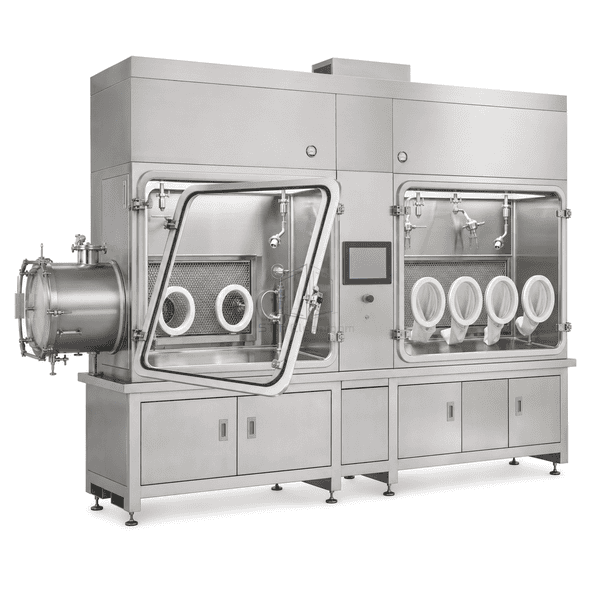

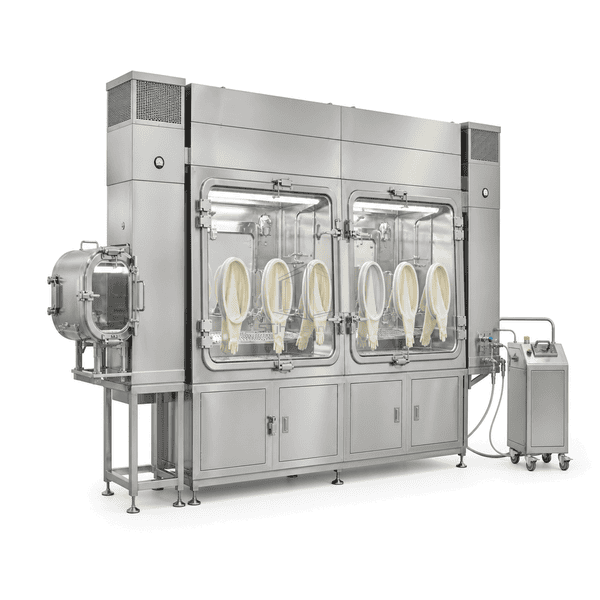

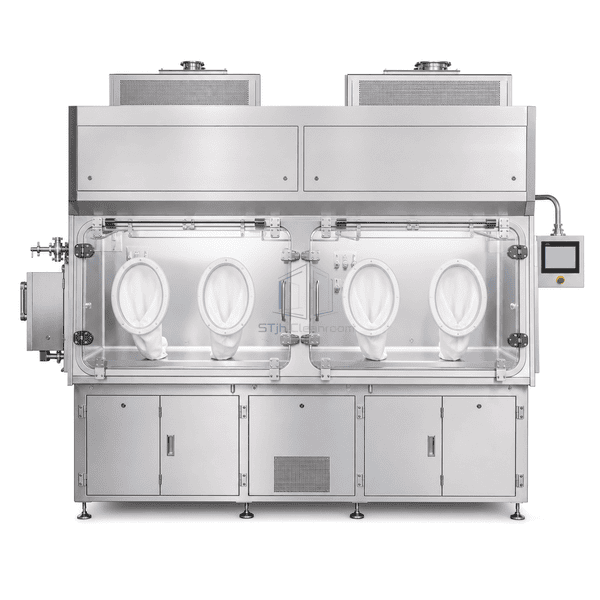

The aseptic isolator separates critical pharmaceutical work from the surrounding room through a welded stainless enclosure, gasketed viewing panels and glove access. Integrated HEPA supply and return paths maintain controlled airflow and pressure, while a hydrogen-peroxide decontamination circuit treats exposed chamber surfaces between operations. Rapid-transfer ports or a side airlock introduce components without opening the main process zone.

Key Features

Welded 316L stainless chamber provides a smooth cleanable product-contact environment.

HEPA-filtered supply and distributed returns establish stable airflow across the work zone.

Integrated vaporized hydrogen-peroxide distribution supports repeatable chamber decontamination.

Glove ports and sealed transfer interfaces reduce direct operator intervention in the aseptic space.

Customer Product Concerns

Open operator intervention and uncontrolled material transfer create contamination pathways in critical sterile processing steps.

Direct operator contact threatens first-air protection around exposed product.A closed barrier and fixed glove access separate operators from the critical work zone.

Complex chamber surfaces are difficult to decontaminate reproducibly.Distributed H2O2 injection and monitored cycle parameters treat the sealed internal volume.

Incoming tools can carry contamination into the main chamber.A dedicated transfer airlock or rapid-transfer port isolates and decontaminates material entry.

Pressure or airflow drift may go unnoticed during processing.Integrated monitoring tracks pressure, airflow and filter condition with visible alarms.

Typical Applications

Aseptic filling and stopperingSterile formulation and connectionsCell and gene therapy processingSterile component preparation and transfer

Technical Parameters

Typical construction values for a modular pharmaceutical aseptic isolator are listed below.

Core Material	316L stainless steel process chamber with tempered safety glass and CSM or EPDM glove sleeves
Panel Thickness	40-80 mm double-skin enclosure panels
Effective Width	1200-3200 mm working chamber width
Maximum Length	Up to 6000 mm modular isolator length
Steel Facing Thickness	1.2-1.5 mm stainless inner and outer skins
Core Density	80-140 kg/m³ for sealed mineral-fiber or aluminum honeycomb panel infill
Thermal Conductivity	0.038-0.055 W/(m·K) for insulated panel infill
Surface Finish	Brushed or satin 316L stainless steel with radiused internal corners
Joint Type	Continuously welded chamber seams with gasketed view doors, clamped HEPA housings and sealed RTP or airlock interfaces
Customization	Available based on the intended application and operating environment.

Available Options

Positive-pressure aseptic or negative-pressure aseptic-toxic configurationIntegrated H2O2 generator and catalystRapid transfer port or decontamination airlockSCADA, particle monitoring and environmental sensors
