Industry-Specific Cleanroom Equipment

Animal Bedding Disposal Station

A mobile vivarium refuse workstation that draws room air into a shielded dumping opening while used cage bedding passes through a stainless chute into a removable bag or collection bin.

Negative-Pressure Dump Opening
Single-Pass HEPA Exhaust Path
Bag or Bin Collection Interface
Mobile Four-Caster Base

Request a Quote Browse Products

Product Introduction

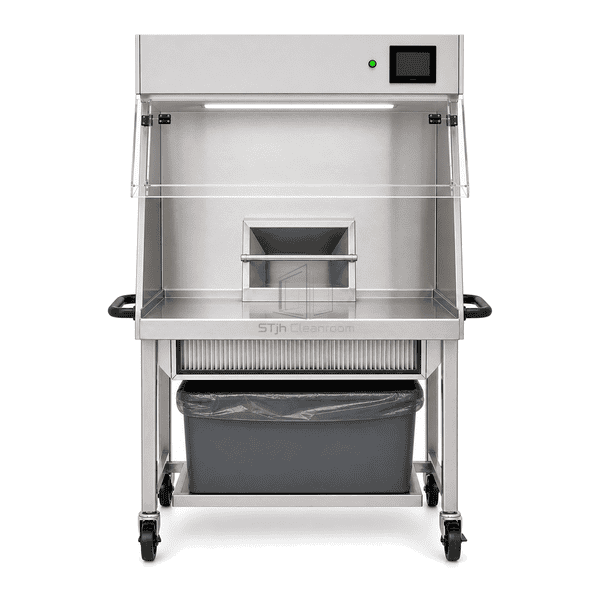

The Animal Bedding Disposal Station is built for the dirty side of a laboratory-animal cage-processing workflow. One wide front opening sits behind a hinged clear polycarbonate shield, giving the operator direct access to a brushed AISI 304 work zone without creating a clean-air animal-handling area. Used bedding is knocked from a cage at the horizontal stainless bar and directed through one square funnel into the waste connection below. Air drawn inward at the opening passes through a removable pleated prefilter before reaching the single top HEPA-and-blower compartment. A compact black controller, green status indicator and concealed white LED task light support routine operation, while four stainless legs, two side handles and four lockable castors allow the station to be positioned at the cage-wash receiving area. The illustrated unit has no operator service outlet and is not presented as a cage-changing station or biological safety cabinet.

Key Features

The open-front exhaust arrangement pulls dust away from the operator at the point where soiled bedding is tipped, without adding a supply-air diffuser or sterile work-zone claim.

A square stainless funnel and transverse bang bar guide refuse into one removable lower collection interface while reducing scattered material across the work tray.

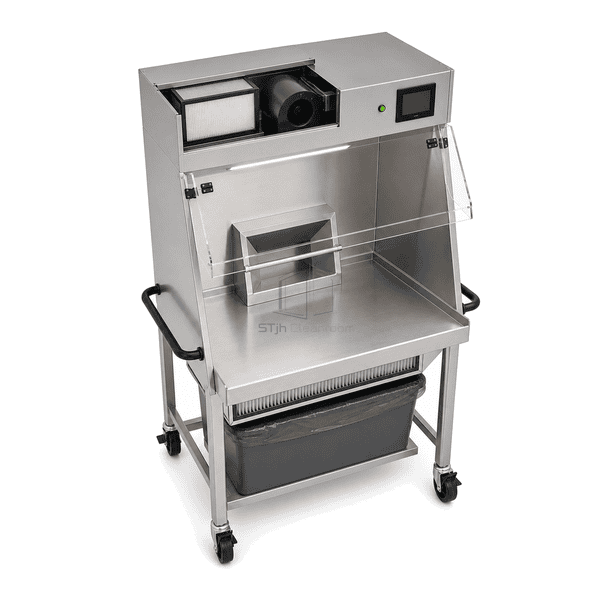

The accessible pleated prefilter captures coarse bedding dust ahead of the upper HEPA cartridge, separating routine first-stage service from the blower compartment.

A clear hinged shield, integral task lighting, side push handles and a four-caster base preserve visibility and mobility around the dirty-cage processing route.

Customer Product Concerns

Emptying used cages can release light bedding dust and allergens while also creating spills, odors and awkward waste-bag changes around the cage-wash area.

Dumping dry bedding through an uncontained opening can direct airborne dust back toward the operator.The shielded front opening and single-pass exhaust route draw room air inward across the dumping zone before the air reaches the prefilter and HEPA stage.

Loose material can collect across a flat bench or miss the waste container during repeated cage emptying.The raised square funnel and stainless bang bar define a direct drop path from the cage into the lower bag or bin interface.

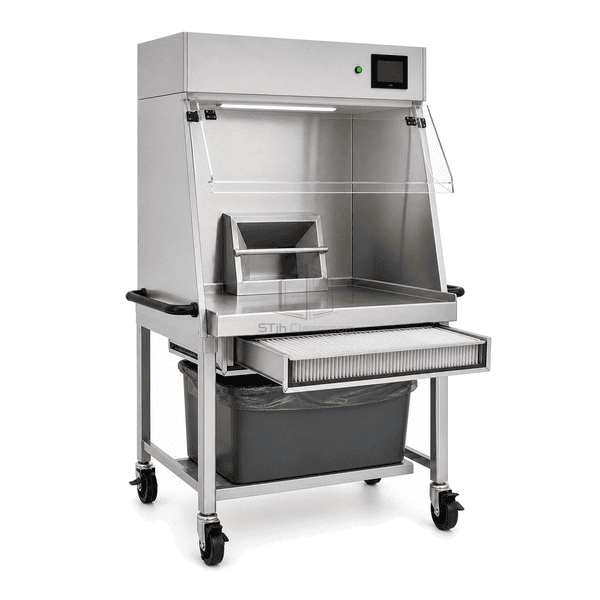

Coarse bedding particles can load an expensive final filter prematurely.A removable pleated prefilter is positioned beneath the work tray so larger dust can be captured and serviced before the upper HEPA cartridge.

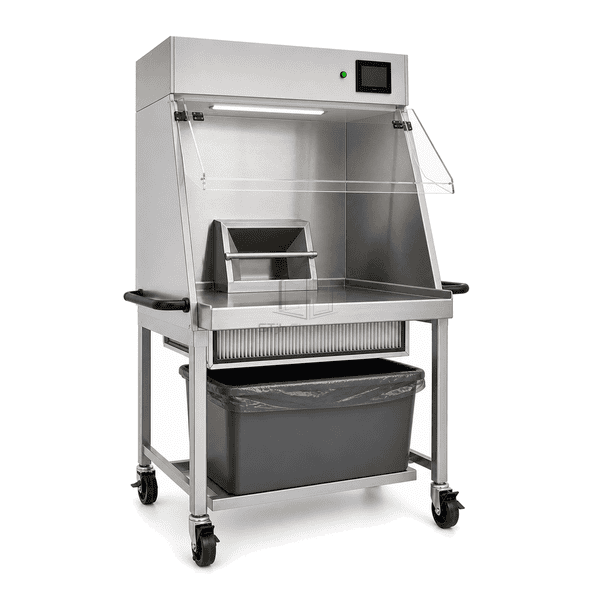

Waste containers are difficult to remove when the chute and base frame leave too little service clearance.The open four-leg base provides a straight withdrawal path for the single collection bin or bag support while lockable castors hold the station during the change.

Typical Applications

Dirty-side disposal of wood-chip, cellulose or corncob bedding from compatible rodent cagesVivarium cage-wash receiving areas where used litter is removed before washingAnimal holding facilities that need a mobile refuse point for scheduled cage sanitationResearch support rooms requiring bagged or bin-based collection beneath a filtered dump opening

Technical Parameters

Typical configurable construction values for the illustrated mobile animal-bedding disposal station are listed below.

Core Material	AISI 304 stainless-steel work zone, chute and mobile base with a powder-coated steel upper module, clear polycarbonate shield and polymer waste container
Panel Thickness	1.0-1.2 mm nominal stainless-steel work-zone and lower-base panels
Effective Width	1178 mm nominal clear work-zone width for the illustrated four-foot configuration
Maximum Length	Up to 2342 mm assembled overall height with the adjustable mobile base
Steel Facing Thickness	1.0-1.2 mm nominal AISI 304 stainless work-zone, tray and chute facing
Core Density	7900-8000 kg/m³ for representative AISI 304 stainless-steel components
Thermal Conductivity	15 W/(m·K) for representative AISI 304 stainless steel at room temperature
Surface Finish	Neutral silver brushed stainless work surfaces, light-gray powder-coated upper housing, colorless clear shield, dark-gray waste bin, black controls and castors, green status light and white LED
Joint Type	Single front negative-pressure opening above a removable tray and square drop chute, with one lower bag or bin connection, one prefilter drawer and one upper HEPA-blower module
Customization	Available based on the intended application and operating environment.

Available Options

Telescoping manual or powered height-adjustable baseProject-selected bag support or removable wheeled collection binDownstream activated-carbon module for odor-control requirementsRegional electrical configuration and facility exhaust connection arrangement
