Cleanroom Equipment Spare Parts

Air Shower Light

A slim recessed LED fixture that provides even chamber illumination with a cleanable stainless trim and diffused face.

Low-Profile Recessed Body
Frosted Uniform Diffuser
Stainless Trim Ring
Spring-Clip Installation

Request a Quote Browse Products

Product Introduction

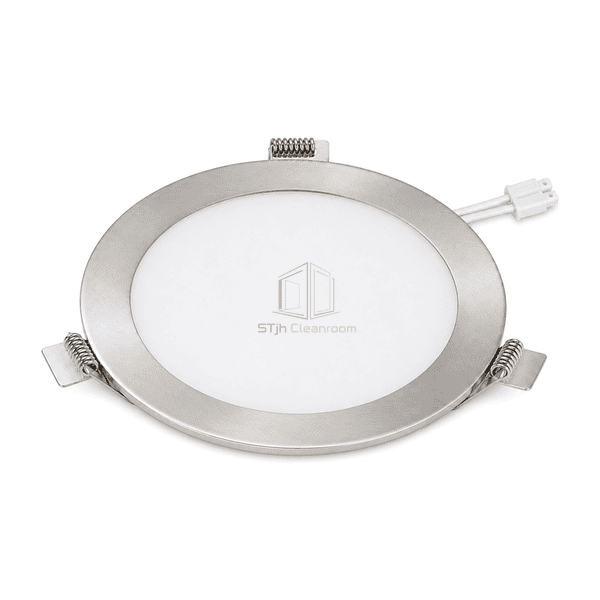

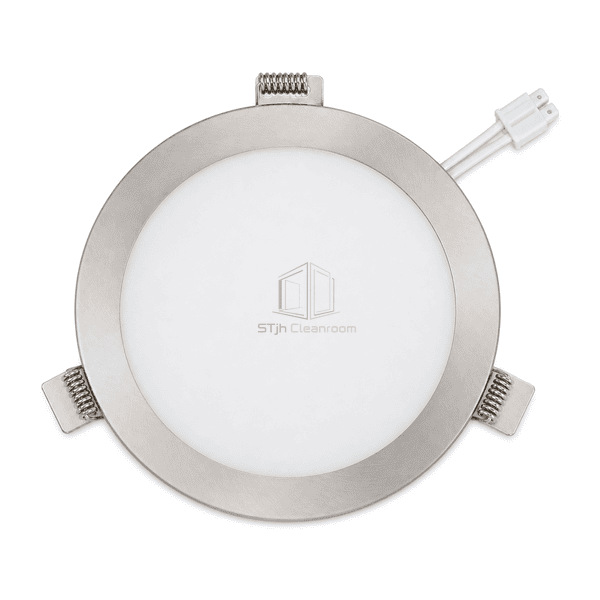

The air shower light is a compact recessed LED fixture used to illuminate the chamber without projecting bulky hardware into the cleaning zone. Its frosted diffuser softens point-source glare, while the stainless trim provides a durable wipe-clean exposed edge. Three spring clips secure the light within the ceiling cutout and a short plug lead supports quick electrical replacement. Selection should match cutout diameter, available ceiling depth, supply arrangement, light color and cleaning requirements.

Key Features

The frosted diffuser distributes light across the chamber with reduced glare.

A slim recessed profile minimizes projections inside the air shower.

Three spring clips retain the fixture evenly around the ceiling opening.

The stainless trim ring provides a cleanable exposed surface that matches chamber interiors.

Customer Product Concerns

A replacement light must fit the existing cutout while providing uniform illumination and maintaining a clean chamber-facing surface.

A mismatched cutout diameter prevents secure recessed installation.Trim, body and spring-clip geometry are matched to the existing ceiling opening.

Exposed LED points cause glare in a compact reflective chamber.The opal diffuser blends the light into a broad, comfortable luminous surface.

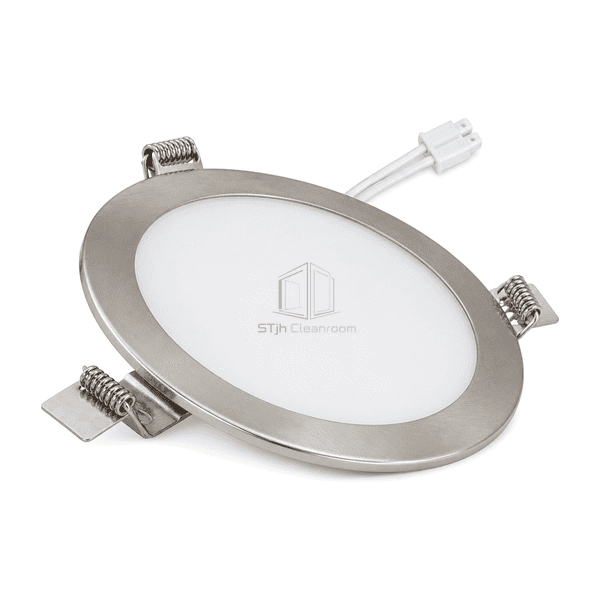

Loose fittings vibrate during high-velocity blower cycles.Three evenly spaced spring clips provide balanced retention around the fixture.

Difficult wiring increases downtime during lamp replacement.A short two-core lead and plug connector simplify connection to the chamber circuit.

Typical Applications

Personnel air shower chamber lightingMaterial air shower illuminationCleanroom vestibule ceiling lightsAir shower LED replacement and upgrades

Technical Parameters

Typical construction and dimensional ranges for recessed air shower LED lights are shown below.

Core Material	LED light board with opal polymer diffuser and stainless-steel trim ring

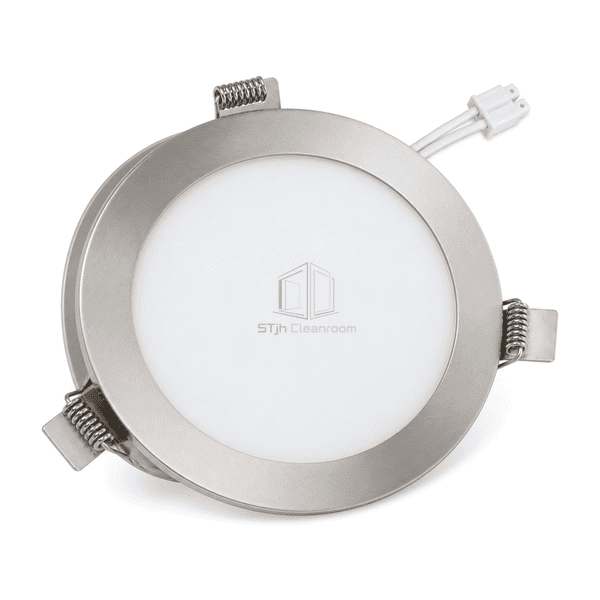

Panel Thickness	15-35 mm nominal recessed fixture depth
Effective Width	100-220 mm nominal trim diameter
Maximum Length	Up to 280 mm overall span including extended spring clips
Steel Facing Thickness	0.6-1.0 mm stainless-steel trim thickness
Core Density	7900-8000 kg/m³ for stainless-steel trim components
Thermal Conductivity	14-16 W/(m·K) for stainless-steel trim components
Surface Finish	Fine satin stainless trim with smooth opal-white diffuser
Joint Type	Recessed circular body retained by three spring clips with two-pin plug connection
Customization	Available based on the intended application and operating environment.

Available Options

Alternative trim and cutout diametersNeutral- or cool-white light colorMatched low-voltage inputCustom lead and connector length

Planning a Air Shower Light specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
