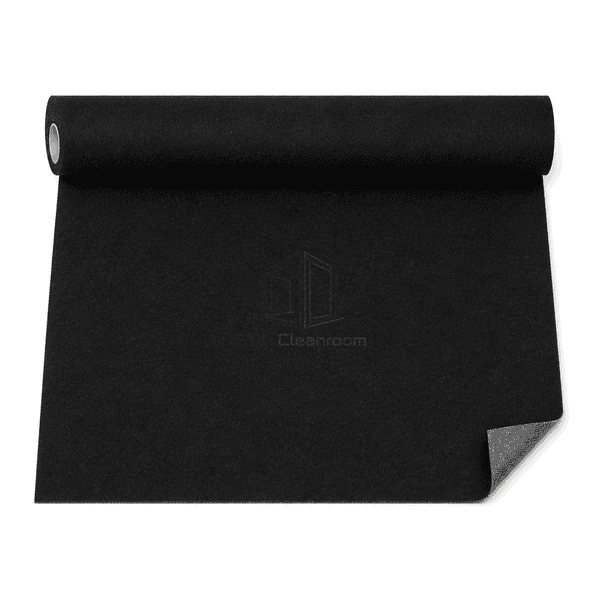

Three-quarter view of black activated carbon filter media roll

Air Filters and Chemical Filtration

Activated Carbon Air Filter Media

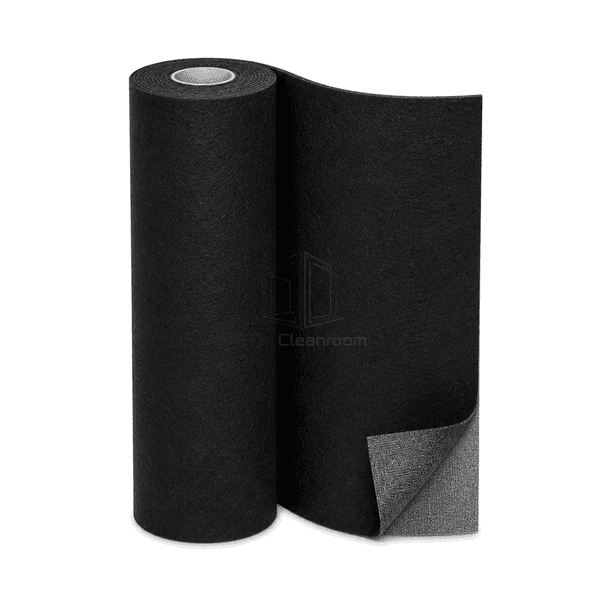

A black activated-carbon-loaded nonwoven or reticulated foam supplied in rolls for pleated, panel and combination odour-control filters.

High Carbon Loading
Flexible Roll Format
Low-Level VOC Adsorption
Pleating and Lamination Ready

Request a Quote Browse Products

Product Introduction

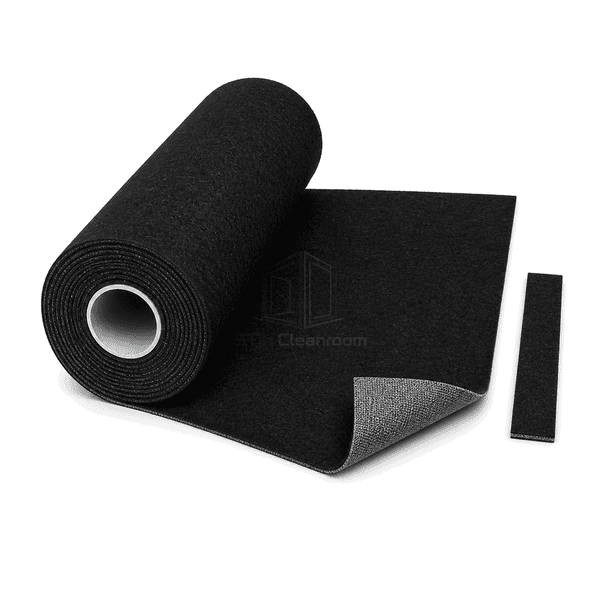

Activated carbon filter media fixes fine carbon particles to a polyester nonwoven, polyurethane foam or composite support. The open support distributes airflow through the adsorbent layer while minimizing loose carbon carryover during cutting and pleating. It is used for light-duty odour and VOC polishing where a deep granular bed is unnecessary or space is limited. The material can be laminated to particle-filter media to create a combined dust-and-gas filter.

Key Features

Uniform carbon distribution avoids weak strips across the web.

A flexible support allows cutting, pleating and frame lamination.

Bonded carbon reduces dust release compared with loose granules.

Combination laminates can provide particulate and odour control in one shallow element.

Customer Product Concerns

Thin carbon media must balance adsorbent loading, airflow resistance, flexibility and carbon-dust control.

A low carbon loading reaches breakthrough after a short odour event.Basis weight and carbon add-on are selected for the available depth and service interval.

Loose black dust contaminates the downstream face.Bonded particles and a protective scrim retain carbon during conversion and use.

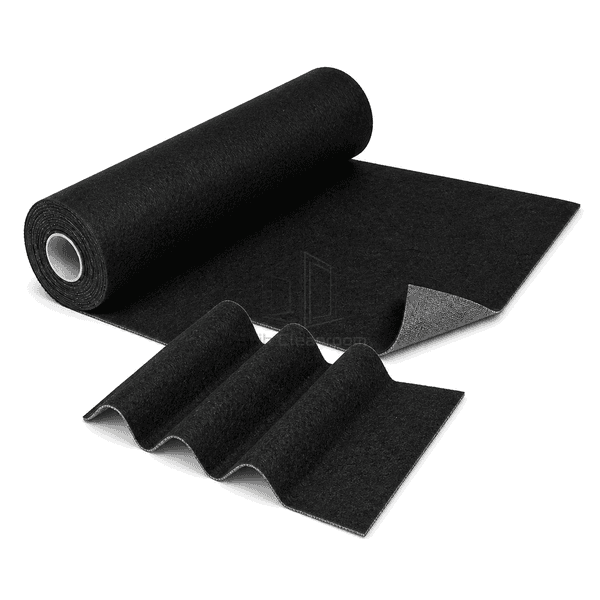

Heavy media cracks when folded into a pleat.A flexible nonwoven or foam carrier supports the carbon through forming operations.

A separate odour stage will not fit the existing filter track.Carbon media can be laminated to a particle web and installed in a shallow combination filter.

Typical Applications

Pleated carbon panel filtersHVAC odour-control padsAir purifier replacement mediaElectronics cabinet filtersLight-duty VOC polishing

Technical Parameters

Representative physical ranges for activated-carbon air-filter media are shown below.

Core Material	Activated-carbon-loaded polyester nonwoven, polyurethane foam or multilayer composite
Panel Thickness	1.0–20.0 mm media thickness
Effective Width	500–2000 mm usable roll width
Maximum Length	Up to 50000 mm roll length depending on thickness and core size
Steel Facing Thickness	0.40–0.80 mm perforated or expanded-metal support facing for framed carbon-media elements
Core Density	80–450 kg/m³ apparent composite density
Thermal Conductivity	0.04–0.12 W/(m·K) through the porous carbon composite
Surface Finish	Uniform black carbon-loaded face with optional low-dusting protective scrim
Joint Type	Continuous bonded web for cutting, pleating, laminating or perimeter framing
Customization	Available based on the intended application and operating environment.

Available Options

Nonwoven, foam or composite carrierDifferent carbon basis weightsParticle-filter combination laminateCustom rolls and die-cut sheets

Planning a Activated Carbon Air Filter Media specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
