أدوات اختبار الغرفة النظيفة والتحقق من صحتها
الموجات فوق الصوتية دي المياه ضباب
A mobile ultrasonic fogger that atomizes DI, ultrapure or WFI water into a clean visible mist for repeatable airflow mapping in controlled environments.
- Clean high-purity water tracer.
- Adjustable ultrasonic fog delivery.
- Drainable stainless mobile system.
مقدمة المنتج

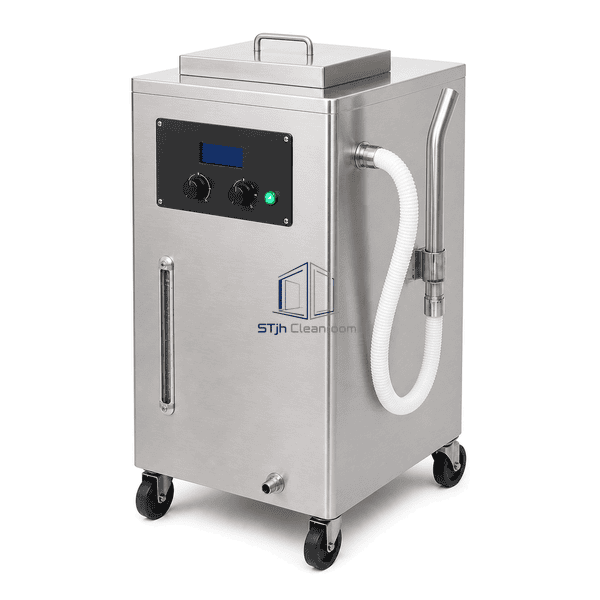

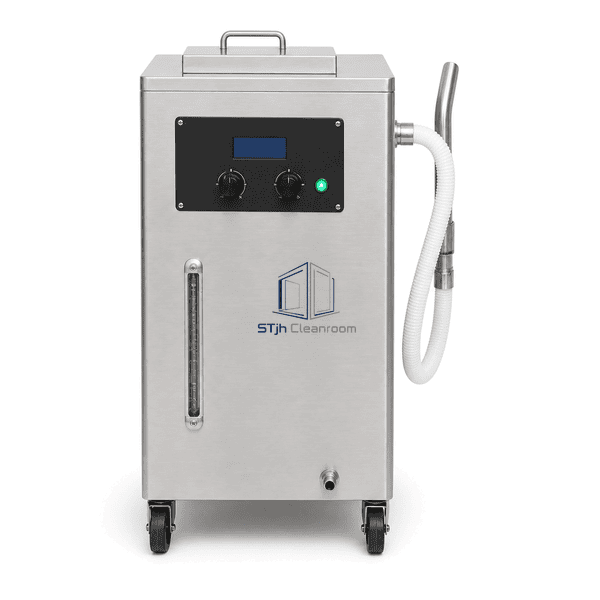

The system combines a stainless water reservoir, submerged ultrasonic transducers and a regulated carrier-air path to generate dense water-only fog without combustion or oil residue. Separate output and delivery controls help technicians match fog volume and exit velocity to the airflow under observation. A flexible sanitary hose carries mist from the mobile base to interchangeable study outlets.
الخصائص الرئيسية
Ultrasonic atomization produces a dense visible mist without heating fuel.
Independent fog-volume and carrier-air adjustment supports delicate flow studies.
Stainless water-contact surfaces facilitate draining and routine cleaning.

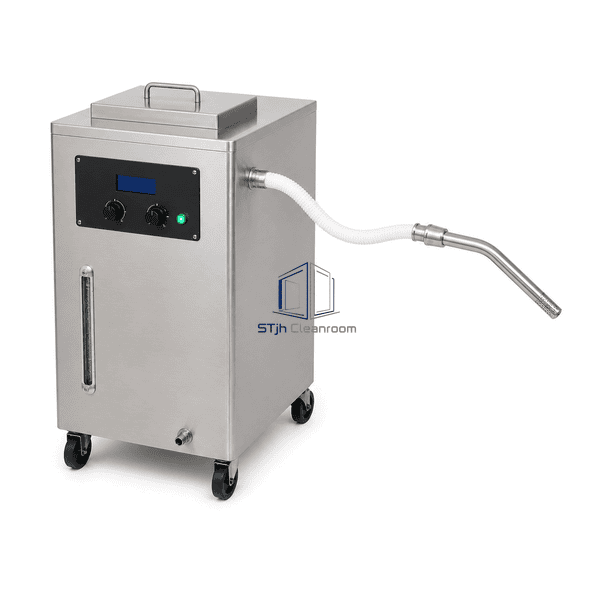

Flexible hose separates the generator from the actual observation point.
Mobile enclosure protects the reservoir and controls during facility work.
مخاوف المنتج للعملاء
A dependable airflow study requires visible, repeatable fog that can follow low-velocity cleanroom patterns without introducing oily residue or an uncontrolled high-energy jet.
Tracer residue can complicate cleaning after a visualization study.The ultrasonic system atomizes suitable high-purity water without oil-based smoke fluid.
Excessive discharge velocity can distort low-speed cleanroom airflow.Separate fog-density and carrier-air controls allow a gentler delivery setting.
A water system can retain moisture between study sessions.Accessible stainless water-contact surfaces and a dedicated drain support controlled emptying and drying.
The generator cannot always stand beside the camera view.A flexible delivery hose positions only the compact outlet within the test area.
تطبيقات نموذجية
Pharmaceutical cleanroom smoke studiesUnidirectional airflow mappingHEPA supply-pattern visualizationIsolator and filling-line airflow studiesContainment and migration-path observation
المعلمات الفنية
Typical ultrasonic DI-water fogger construction is outlined below; transducer capacity, reservoir volume and delivery accessories can be configured for the study area.
| المواد الأساسية | Ultrasonic transducer bank, 316L stainless water reservoir, polymer delivery hose and regulated blower |
|---|---|
| سمك اللوحة | Typically 1.0-1.5 mm for enclosure and reservoir panels |
| العرض الفعال | Approximately 300-500 mm across the mobile cabinet |
| الحد الأقصى الطول | Approximately 450-700 mm for cabinet; delivery hose typically 2000-5000 mm |
| الصلب يواجه سمك | Typically 1.0-1.5 mm for stainless cabinet and water-contact reservoir |
| الكثافة الأساسية | Approximately 7950-8000 kg/m³ for 316L stainless steel |
| الموصلية الحرارية | Approximately 14-16 W/(m·K) for 316L stainless steel |
| إنهاء السطح | Brushed or electropolished stainless body with dark control panel, clear level indicator and white hose |

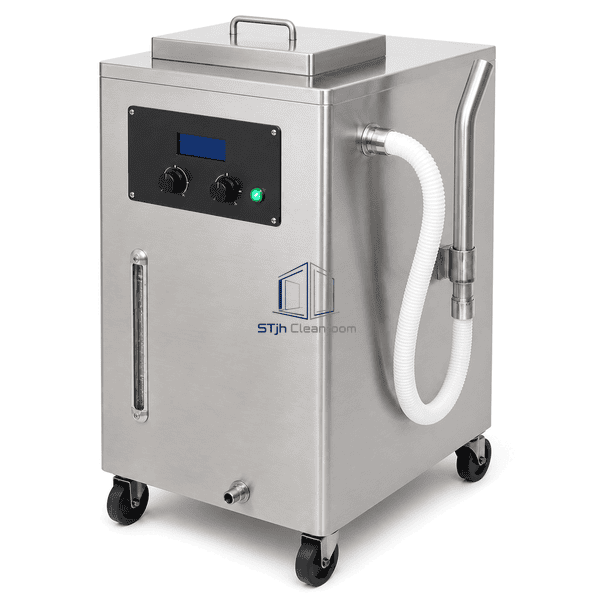

| نوع المشترك | Sealed reservoir lid, drain fitting and quick-connect sanitary fog outlet |
| التخصيص | متوفر على أساس التطبيق المقصود وبيئة التشغيل. |
الخيارات المتاحة
Multiple transducer capacitiesStraight or perforated fog outletExtended sanitary delivery hoseجهاز التحكم عن بعدFog illumination moduleTransport and storage cover
Planning a Ultrasonic DI Water Fogger specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
