Personal und Material Dekontamination Ausrüstung
Personal Staubentfernung Cabinet
An enclosed workwear dust-removal cabinet that pairs directional air jets with extraction to collect dust released from industrial garments.
- Full-Height Extraction
- Directed Garment Jets
- Negative-Pressure Cabinet
- External Filter Service
Produkteinführung
The personnel dust-removal cabinet is designed for workers leaving dusty process areas rather than for standard cleanroom entry alone. Inside the compact enclosure, directional jets loosen powder from workwear while a broad extraction face draws the released material immediately toward staged collection filters. Maintaining negative pressure helps reduce dust escape when the cleaning cycle ends and the door is opened.
Key Features

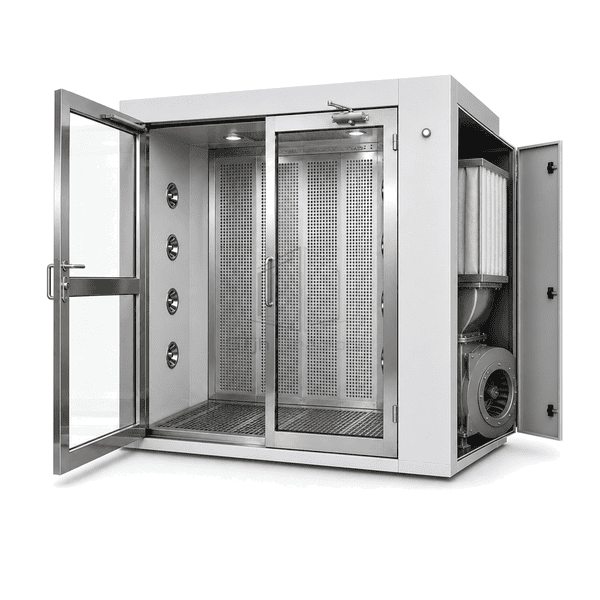

Directional jets move contamination toward the extraction side rather than around the cabinet.
Negative pressure helps limit visible dust leakage at the door opening.
Staged collection filters can separate coarse and fine dust loads.

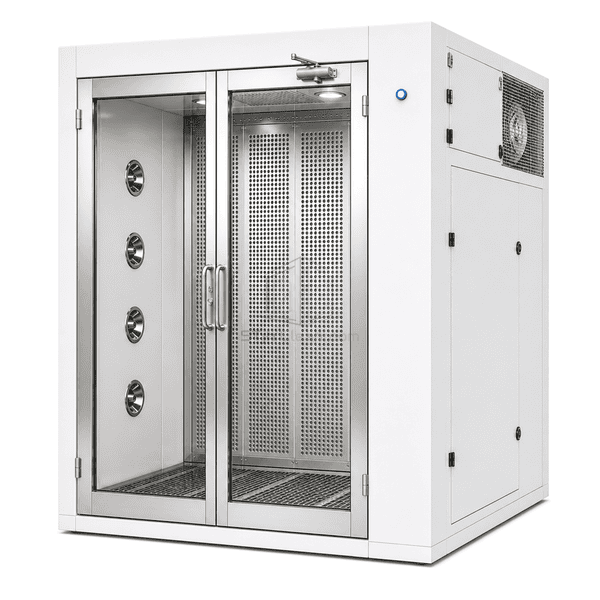

External filter cassettes keep routine service on the dirty side of the cabinet.
Kunden Produktbedenken
Heavily contaminated workwear needs capture at the moment it is disturbed so that the changing room does not become the dust collection area.
Cleaning jets remove dust but spread it through the cabinet.A broad extraction wall creates a directed airflow path from the jets to the filter bank.
Fine powder escapes when the door opens.The cabinet can maintain negative pressure and continue extraction briefly after the jet cycle.
Small filters clog quickly under industrial dust loading.Large staged collection filters separate coarse material before the finer downstream stage.
Filter change exposes staff to captured dust.Gasketed external cassettes provide access from the service side of the enclosure.
Typische Anwendungen
Powder-processing exitsComposite workshopsMineral and ceramic productionIndustrial coating areas
Technische Parameter
Representative construction ranges for an industrial personnel dust-removal cabinet are listed below.
| Core Material | Reinforced steel de-dusting cabinet with directional air jets, full-height extraction plenum and staged cartridge or panel filters |
|---|---|
| Panel Dicke | 50 mm acoustic and dust-tight enclosure panels |
| Effektive Breite | 900-1200 mm clear operator standing width |
| Maximale Länge | Up to 1600 mm compact cabinet depth |
| Stahl facing Dicke | 1.2-1.5 mm formed steel with abrasion-resistant internal liners |
| Kerndichte | 60-80 kg/m³ acoustic mineral-fibre panel infill |
| Thermische Leitfähigkeit | 0.035-0.042 W/(m·K) for the acoustic insulated enclosure |
| Oberfläche Finish | Durable light-grey powder coating with stainless high-wear and extraction surfaces |
| Gemeinsamer Typ | Dust-tight flanged panel seams with gasketed external filter cassettes and sealed service doors |
| Customisierung | Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung. |
Verfügbare Optionen
Cartridge or panel collection filtersCompressed-air or blower-driven jetsExtraction purge delayStainless internal wear liner
Planning a Personnel Dust-Removal Cabinet specification?
Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
