أبواب الغرف النظيفة ونوافذ وأنظمة التشابك
دوي غرف الأبحاث انزلاق الباب

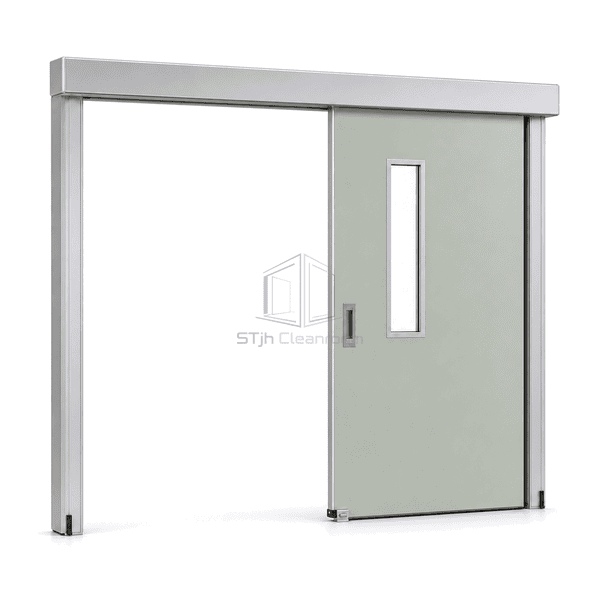

A manually operated 50 mm insulated sliding leaf suspended from an enclosed overhead track, giving wide cleanroom access without occupying a swing arc.
- No Swing Arc Required
- Enclosed Overhead Track
- Threshold-Free Floor
- Manual Low-Force Operation
مقدمة المنتج

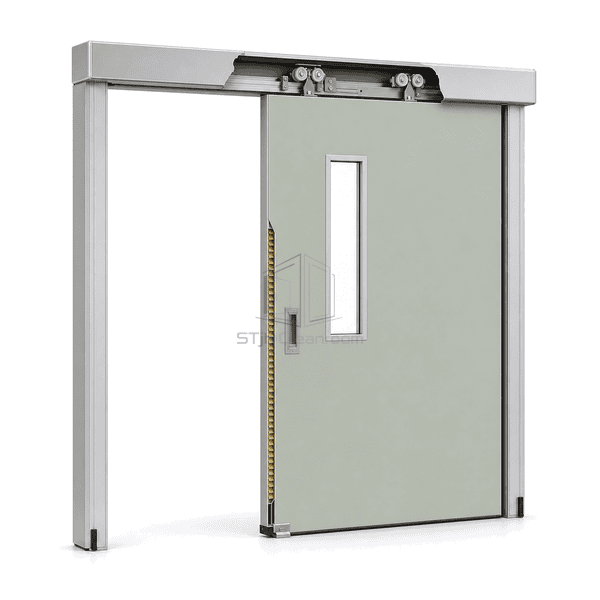

The Manual Cleanroom Sliding Door carries a rock-wool-cored leaf on sealed trolley assemblies inside an accessible overhead rail cover. The leaf moves parallel with the wall and is guided at floor level without a full-length dirt-catching track. An edge-mounted pull and recessed closing handle keep the face clear, while the perimeter seal meets the frame when the leaf reaches its closed position.
الخصائص الرئيسية
Overhead trolleys carry the door weight without a continuous floor track.
An accessible sloped track cover shields rollers from room-side contamination.
Rock-wool infill adds stiffness and acoustic mass to the sliding leaf.
Manual operation remains available without electrical power or control sensors.
مخاوف المنتج للعملاء
Manual sliding doors solve space conflicts but must remain easy to move, accessible for roller maintenance and free from floor-level contamination traps.
A swing leaf collides with equipment or blocks a narrow corridor.The sliding leaf travels parallel to the partition and keeps the approach zone open.
A floor track traps residue and obstructs carts.Overhead suspension uses only a compact floor guide outside the primary passage line.
Heavy manual doors accelerate quickly and strike the end stop.Precision rollers and optional soft-close damping control travel near each end position.
Enclosed rollers become difficult to inspect and clean.A removable sloped hood provides service access without dismantling the wall frame.
تطبيقات نموذجية
Narrow cleanroom corridorsEquipment transfer openingsLaboratory rooms with limited swing clearanceCold and controlled production roomsClean utility access
المعلمات الفنية
Representative dimensions for a manually operated cleanroom sliding doorset are listed below.
| المواد الأساسية | High-density mineral wool |
|---|---|
| سمك اللوحة | 50 mm sliding door leaf |
| العرض الفعال | 750-1600 mm clear opening |
| الحد الأقصى الطول | 2400 mm maximum leaf height |
| الصلب يواجه سمك | 0.8-1.0 mm coated steel leaf skins |
| الكثافة الأساسية | 96-120 kg/m³ mineral wool |
| الموصلية الحرارية | 0.035-0.045 W/(m·K) typical mineral-wool range |
| إنهاء السطح | Pre-coated or powder-coated smooth steel with aluminum edge frame |

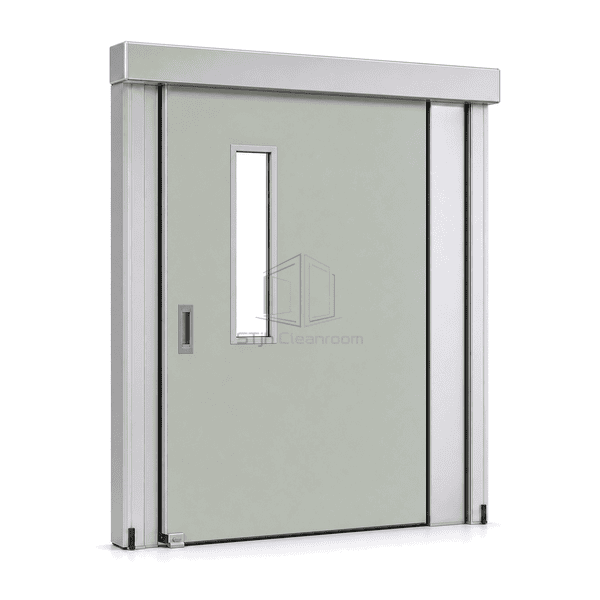

| نوع المشترك | Overhead trolley rail with floor guide and EPDM leaf-edge seal |
| التخصيص | متاح بناءً على التطبيق المقصود وبيئة التشغيل |
الخيارات المتاحة
Soft-close end dampingFlush vision panelStainless track coverInterlock-ready magnetic lock
Planning a Manual Cleanroom Sliding Door specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
