ملابس الغرف النظيفة، PPE والمواد الاستهلاكية
مساحات الغرف النظيفة
Precision cleanroom swabs with a thermally bonded knitted-polyester head and rigid polypropylene handle for controlled cleaning of slots, sensors and small components.
- Knitted polyester head reaches narrow equipment surfaces without exposed adhesive
- Thermally bonded construction limits contaminating components
- Rigid polypropylene handle provides accurate pressure and placement control
مقدمة المنتج

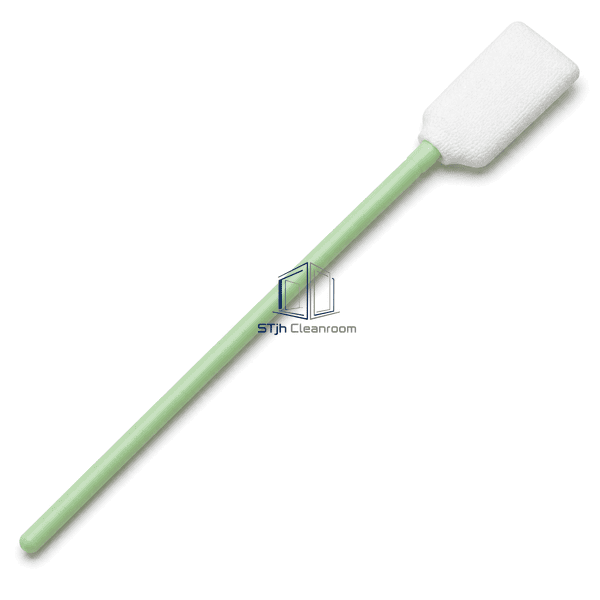

Cleanroom Swabs combine a low-lint continuous-filament polyester head with a smooth polypropylene handle. Thermal bonding secures the fabric without exposed glue or metal staples. The rectangular head offers flat wiping faces and defined edges for cleaning recessed equipment features, while the long rigid handle keeps fingers away from the contact area.
الخصائص الرئيسية
Rectangular head provides broad faces and controlled corner access
Thermal bond avoids exposed adhesive at the working end
Polypropylene handle is lightweight, rigid and chemically compatible
Several head geometries and handle lengths can match equipment features
مخاوف المنتج للعملاء
Small slots, optical recesses and sensor surfaces are difficult to clean with a full-size wipe. An unsuitable swab can leave cotton fibers, adhesive residue or excessive solvent in the feature.
Fibrous heads may shed into narrow assemblies.Use a knitted continuous-filament polyester head for critical surfaces.
Exposed glue can soften in common cleaning solvents.Select thermally bonded head construction without exposed adhesive.
A flexible handle may not deliver controlled wiping pressure.Match polypropylene handle stiffness and length to the reach required.
The wrong head size may miss corners or become trapped in a recess.Choose head width, thickness and profile from the actual feature geometry.
تطبيقات نموذجية
Used for cleaning print heads, optical components, grooves, validation points, disk-drive assemblies, sensors, sampling ports and other small equipment features in semiconductor, pharmaceutical, electronics and medical-device facilities.
المعلمات الفنية
The following ranges cover common rectangular-head polyester cleanroom swabs. Final head dimensions, handle length, cleanliness and packaging depend on the equipment geometry, solvent and contamination-control plan.
| المواد الأساسية | Knitted continuous-filament polyester head with polypropylene handle |
|---|---|
| سمك اللوحة | 3–8 mm |
| العرض الفعال | 3–17 mm |
| الحد الأقصى الطول | 165 mm |
| الصلب يواجه سمك | 0 mm; no steel facing used |
| الكثافة الأساسية | 60–100 kg/m³ apparent head density |
| الموصلية الحرارية | 0.04–0.10 W/(m·K), assembly dependent |
| إنهاء السطح | White low-lint knitted head with smooth light-green handle |
| نوع المشترك | Thermally bonded head-to-handle neck |
| التخصيص | متوفر على أساس التطبيق المقصود وبيئة التشغيل. |
الخيارات المتاحة
Rectangular, pointed or paddle headSeveral head widths and thicknessesFlexible or rigid polypropylene handleAlternative handle lengthsCleanroom bagged or double-bagged supplyDry or pre-saturated format
Planning a Cleanroom Swabs specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
