Sistemas de pared y techo de sala limpia
Panel de sala limpia aislado EPS

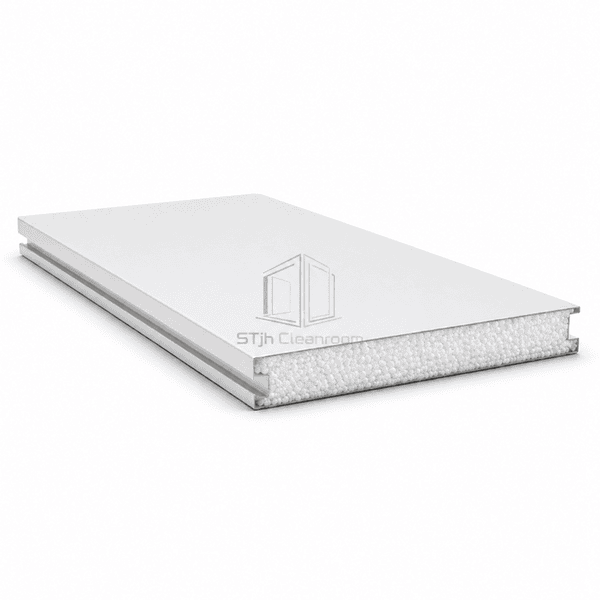

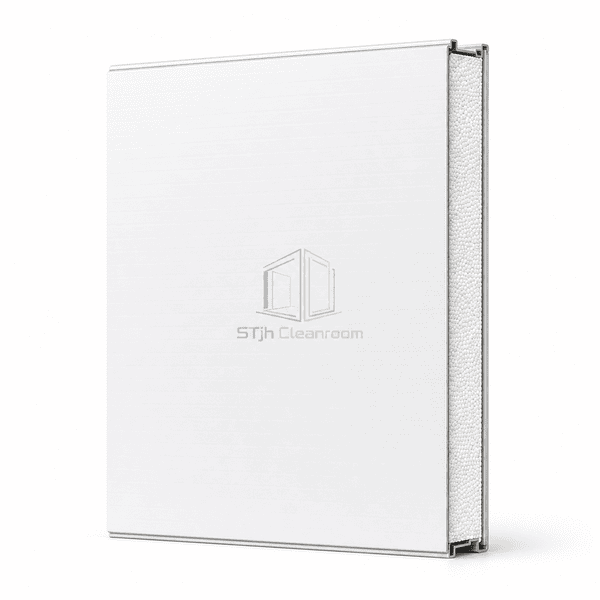

A lightweight and economical sandwich panel with an expanded-polystyrene core between coated steel facings, intended for dry general-purpose cleanroom walls and ceilings where moderate insulation and fast installation are required.
- Lightweight EPS Core
- Economical Insulation
- Smooth Steel Surfaces
- Fast Modular Installation
Introducción del producto

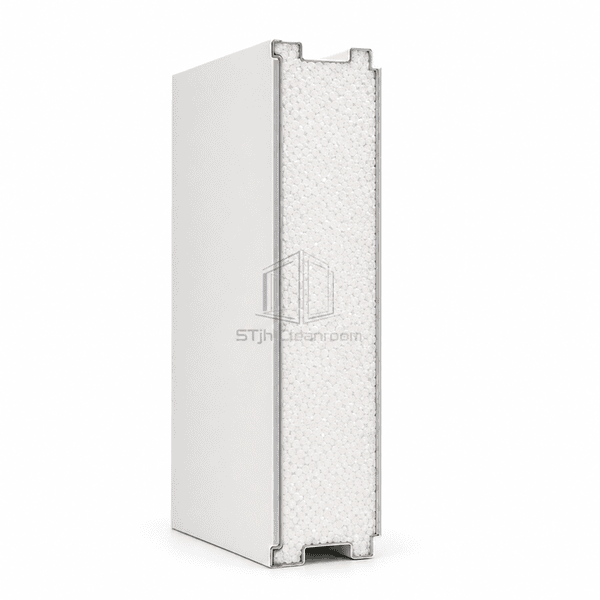

EPS Insulated Cleanroom Panels use molded expanded-polystyrene blocks bonded between profiled galvanized steel skins. The low-density core keeps panels light and delivers useful thermal separation for general indoor controlled areas. Smooth outer facings create the cleanable surface, while shaped joints align modules and reduce open gaps. EPS is best used where severe heat exposure, aggressive wash-down and high structural loading are not governing requirements. With protected edges and suitable reinforcement around openings, it provides a cost-efficient enclosure for many dry manufacturing and support spaces.
Características clave
Large modules can be positioned quickly with modest lifting equipment.
Bonded steel skins add surface rigidity and protect the cellular foam core.

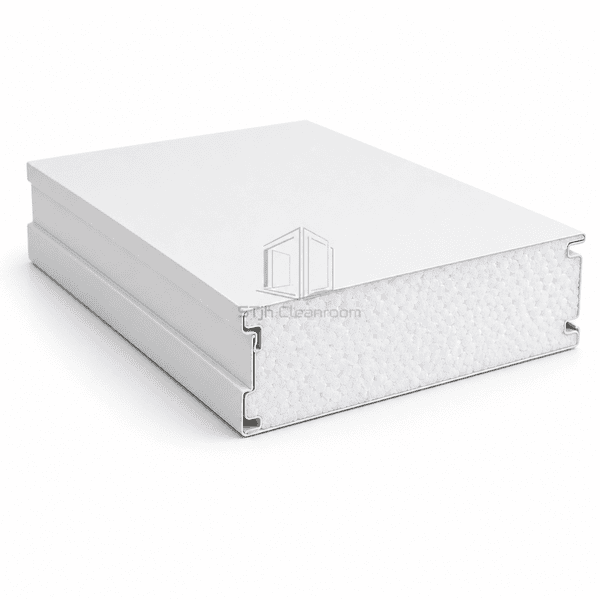

Factory-formed joints create predictable alignment across long interior wall runs.
The straightforward panel structure supports economical replacement and room reconfiguration.
Preocupaciones del producto del cliente
Correct use depends on protecting the foam, controlling heat exposure, reinforcing fixtures and keeping water out of panel edges.
EPS can be damaged when an exposed edge is struck or abraded.Metal closure profiles protect every perimeter and service opening from direct impact.
A lightweight core does not safely carry heavy wall-mounted equipment by itself.Solid inserts or independent supports transfer concentrated loads away from the foam.
High-temperature areas can exceed the suitable service range of EPS.EPS panels are assigned to ordinary dry interiors while mineral or PIR cores serve higher-risk zones.
Poor joint sealing allows moisture to enter and reduces thermal consistency.Continuous gaskets or sealant close the tongue-and-groove interface along its full length.
Aplicaciones típicas
General electronics assembly roomsDry packaging and inspection areasControlled warehouses and support corridorsTemporary cleanroom partitionsNon-wash-down laboratory support spaces
Parámetros técnicos
The following values represent common EPS cleanroom panel manufacturing ranges.
| Materiales Core | Flame-retardant expanded polystyrene foam |
|---|---|
| Panel de espesor | 50, 80, 100, 120, 150 or 200 mm |
| Ancho efectivo | 950, 1050 or 1130 mm |
| Longitud máxima | 10000 mm |
| Acero frente a espesor | 0,40 - 0,60 mm |
| Densidad Core | 12.5–20 kg/m³ |
| Conductividad térmica | 0.038–0.045 W/(m·K) |
| Superficie acabada | Polyester- or food-safe coated galvanized steel |
| Tipo conjunto | Visible or concealed interlocking joint with sealant |
| Customization | Disponible según la aplicación prevista y el entorno operativo |
Opciones disponibles
Food-safe surfaceLocal fixture reinforcementAlternative modular widthCustom dry-area wall and ceiling modules
Planning a EPS Insulated Cleanroom Panel specification?
Envíenos sus dimensiones, condiciones de instalación, objetivos de rendimiento y acabado superficial requerido.
