أبواب الغرف النظيفة ونوافذ وأنظمة التشابك
غرفة نظيفة عالية السرعة لفة الباب
A compact fast-cycling roll-up door that limits open time and seals the curtain edges inside low-friction guides to support cleanroom pressure control.
- Pharmaceutical Airlock Service
- PVC-Coated Polyester Fabric
- Antistatic Curtain Option
- Stainless Housing Option
مقدمة المنتج
The Cleanroom High-Speed Roll-Up Door uses a flexible PVC-coated polyester curtain, slim side columns and a compact overhead drum. The curtain edges travel inside continuous low-friction guides that resist pressure-induced deflection and reduce leakage. Fast opening shortens air exchange during personnel or material transfer, while the soft curtain and wireless safety edge reduce impact risk. A self-reinserting edge design can restore the curtain to its guides after a minor collision.
الخصائص الرئيسية

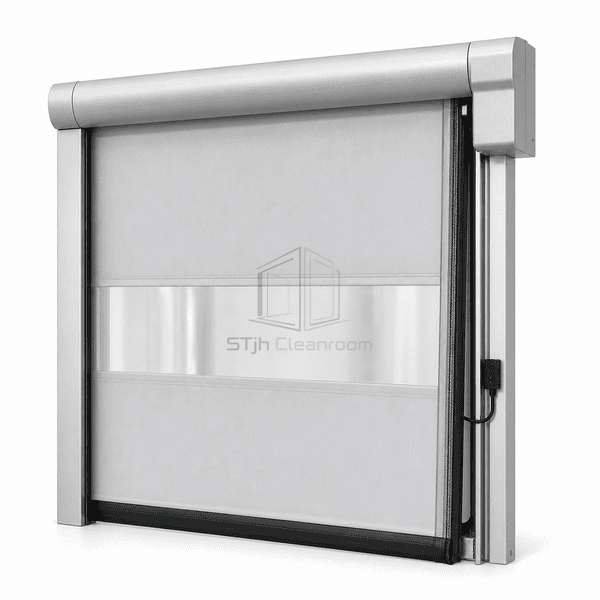

Captured flexible curtain edges help the opening resist both positive and negative room pressure.

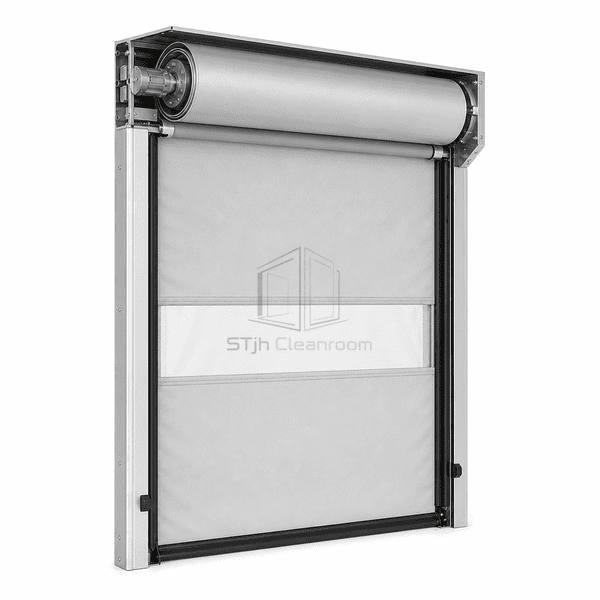

Compact side guides and an in-drum drive conserve wall space in narrow airlocks.
Soft bottom edge and photoelectric protection monitor the closing path without a rigid bottom beam.
Self-reinserting curtain construction limits downtime after incidental impact.
مخاوف المنتج للعملاء
Slow doors allow excessive conditioned air to escape during every transfer.High opening speed and automatic timing minimize the interval between room separation cycles.
A flexible curtain can balloon or pull away under differential pressure.Captured curtain edges and pressure-resistant fabric stabilize the opening perimeter.
Forklift contact can remove a conventional curtain from service.A break-away, self-reinserting edge arrangement can restore normal travel after minor impact.
Exposed mechanical parts create difficult clean-down areas.Smooth curtain faces and optional stainless covers enclose the drive and side-guide assemblies.
تطبيقات نموذجية
Pharmaceutical cleanroom airlocksBiotechnology production suitesElectronics clean manufacturingMedical-device material transfer routesControlled packaging and compounding rooms
المعلمات الفنية
| المواد الأساسية | PVC-coated high-tenacity polyester fabric with flexible edge reinforcement |
|---|---|
| سمك اللوحة | 1.2–1.5 mm flexible curtain |
| العرض الفعال | 1000–4000 mm clear opening |
| الحد الأقصى الطول | Up to 4000 mm clear opening height |
| الصلب يواجه سمك | Not applicable to the curtain; frame and covers typically use 1.5–3.0 mm steel |
| الكثافة الأساسية | Approximately 1200–1400 kg/m³ for the flexible PVC compound |
| الموصلية الحرارية | Approximately 0.14–0.17 W/(m·K) for flexible PVC; not intended as an insulated barrier |
| إنهاء السطح | Smooth antistatic-capable PVC curtain with galvanized, powder-coated or stainless-steel structure |
| نوع المشترك | Roll-up curtain captured in continuous low-friction side guides with sealed header and flexible bottom edge |
| التخصيص | متوفر على أساس التطبيق المقصود وبيئة التشغيل. |
الخيارات المتاحة
Stainless-steel side columns and header coversTransparent vision stripInterlock-ready control interfaceAntistatic curtain formulation
Planning a Cleanroom High-Speed Roll-Up Door specification?
أرسل لنا الأبعاد الخاصة بك، شروط التثبيت، أهداف الأداء والتشطيب السطحي المطلوب.
