Laminar Flow und Containment Equipment
Single-Operator Laminar Flow Clean Bench (Einzelbetreiber Laminar Flow Clean Bench)
A compact one-person clean bench sized around a centered working position for routine non-hazardous preparation, inspection and assembly.
- Centered One-Person Zone
- Compact Laboratory Footprint
- Low-Glare Task Lighting
- Front Service Access
Produkteinführung

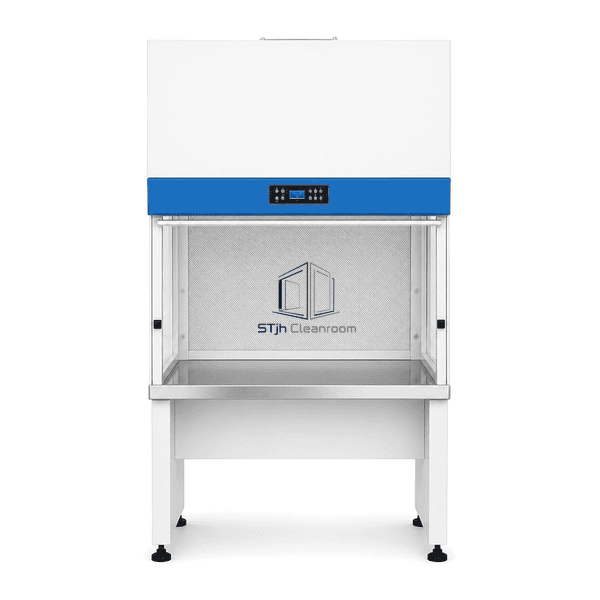

This model narrows the filtered work zone to the natural reach envelope of one seated or standing operator. The centered sash opening, lighting and control panel reduce unnecessary cabinet width while retaining a full stainless work surface. The fan-filter section is accessible from the front or top so the unit can be installed against a wall. Its clean-air zone is intended for non-hazardous product protection in laboratories and small production rooms.
Key Features
A compact base fits between standard laboratory casework modules.
The controller and pressure display remain within easy reach without entering the clean zone.

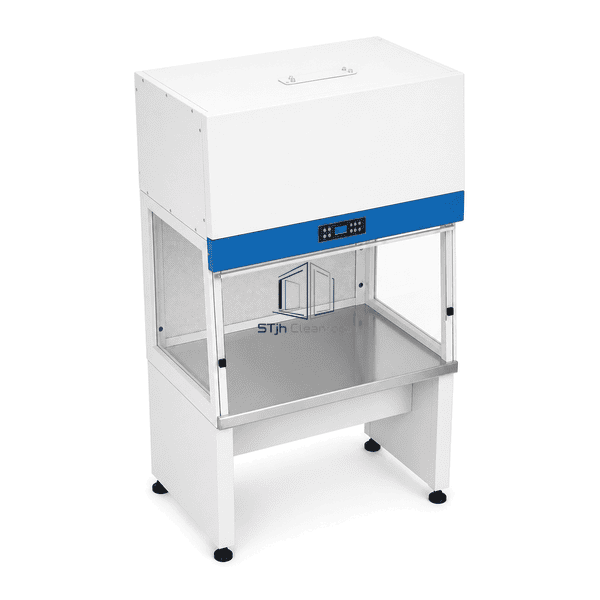

A one-piece stainless work tray reduces seams beneath small components.

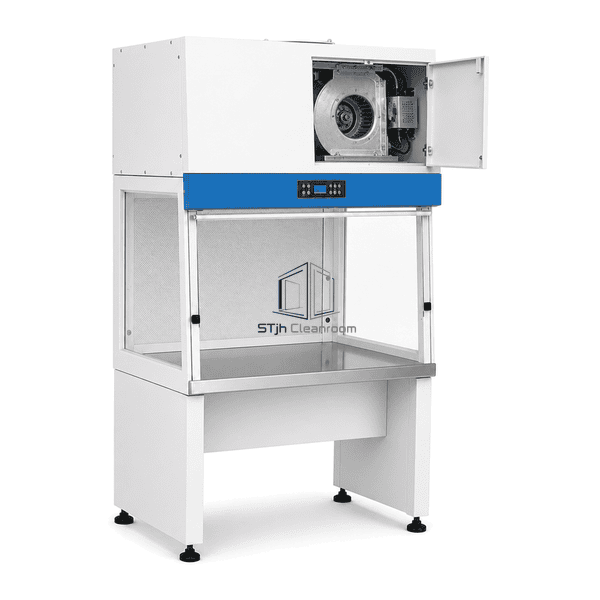

Front-access service panels permit filter and electrical checks where rear clearance is limited.
Kunden Produktbedenken
Small laboratories need a protected work zone without paying for unused width or losing access to routine service points.
A wide two-person bench wastes valuable laboratory wall space.The cabinet width is matched to a single centered operator position.
Controls mounted inside the work zone interrupt clean handling.External front controls keep operating adjustments outside the protected surface.

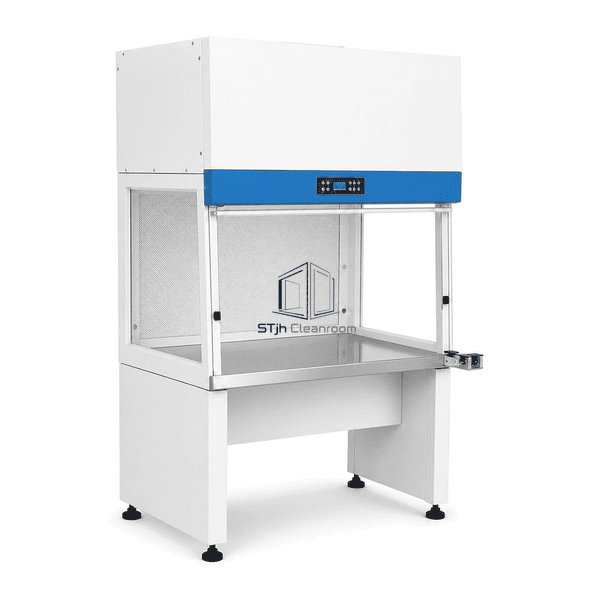

Small parts disappear into segmented worktop joints.A one-piece lift-out tray provides a continuous handling surface.
Rear service access is impossible against fixed casework.The fan, filter gauge and electrical components can be reached from the front or top.
Typische Anwendungen
Small-batch device assemblyMicroscope sample setupNon-hazardous media preparationClean component inspection
Technische Parameter
Typical configurable construction ranges for a one-person laminar flow clean bench are listed below.
| Core Material | SUS304 one-piece work tray with powder-coated steel cabinet and acoustic mineral-fibre lining |
|---|---|
| Panel Dicke | 25-40 mm double-wall cabinet sections |
| Effektive Breite | 700-1000 mm clear working width |
| Maximale Länge | Up to 2100 mm overall freestanding height |
| Stahl facing Dicke | 0.8-1.0 mm outer steel; 1.0-1.2 mm SUS304 inner liner |
| Kerndichte | 60-100 kg/m³ acoustic mineral-fibre lining |
| Thermische Leitfähigkeit | 0.036-0.046 W/(m·K) for the acoustic lining |
| Oberfläche Finish | White epoxy-polyester cabinet finish with brushed stainless work tray |
| Gemeinsamer Typ | Sealed folded cabinet joints with a lift-out work tray and clamped filter gasket |
| Customisierung | Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung. |
Verfügbare Optionen
Sitting or standing base heightManual front sashIntegrated power socketsLeft or right service utility panel
Planning a Single-Operator Laminar Flow Clean Bench specification?
Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
