Complete enclosed powder containment booth with gasketed access doors

Laminar Flow und Containment Equipment

Geschlossener Pulver Containment Booth

A fully enclosed negative-pressure booth that separates manual powder work from the surrounding room through gasketed access, monitored airflow and staged filtration.

Fully Enclosed Process Zone
Gasketed Access Doors
Monitored Negative Pressure
Contained Filter Change Options

Bitte senden Sie eine Anfrage. Browse Produkte

Produkteinführung

This booth adds full walls and gasketed doors around a powder-handling process that requires greater separation than an open downflow enclosure. Filtered supply and extracted return air maintain the selected negative pressure while operators work inside the stainless-lined room. Personnel and material access can be separated, and view panels allow observation from outside. The booth configuration, decontamination method and filter-change arrangement are chosen for the actual powder and operating procedure.

Key Features

Sealed walls and doors establish a defined pressure boundary around the process.

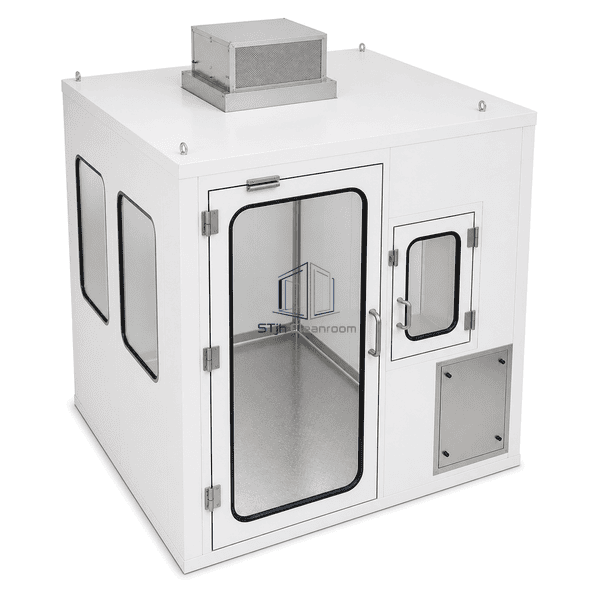

Separated personnel and material openings can reduce crossing traffic.

External view panels permit supervision without opening the booth.

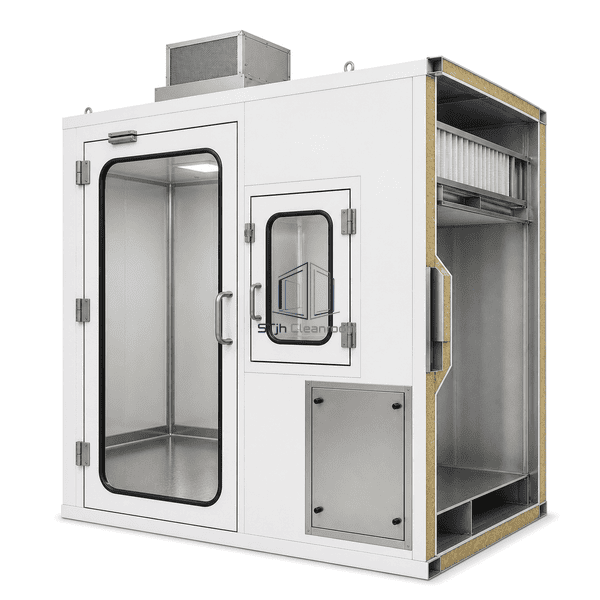

Staged filters retain airborne powder before air is recirculated or exhausted.

Contained change collars can isolate loaded filters during maintenance.

Kunden Produktbedenken

A closed powder room must keep its pressure boundary intact through door cycles, service work and movement of materials.

Open-front containment is insufficient for the handling procedure.Gasketed walls and doors create a complete process-room boundary.

Material entry repeatedly disturbs the personnel route.A dedicated material door or pass-through separates load movement from operator access.

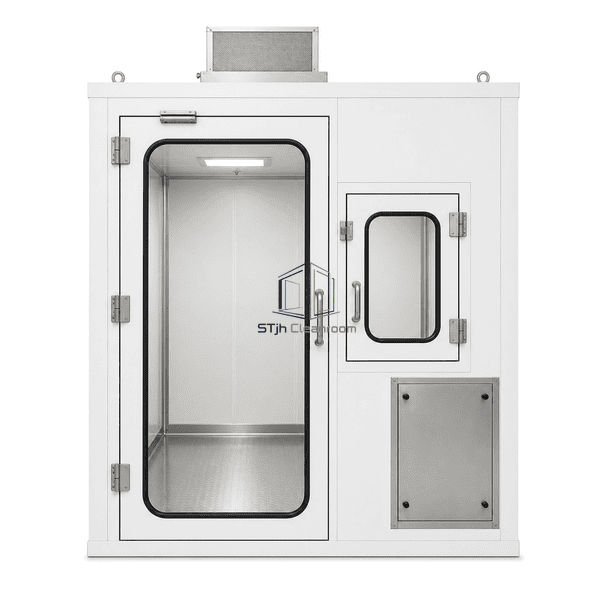

Pressure is lost when a door does not close fully.Door-position monitoring and visible room pressure indication warn of an incomplete boundary.

Filter service opens the contaminated side to the facility.Contained change bags or remote technical-side access isolate the service operation.

Typische Anwendungen

Potent powder manipulationSensitizing ingredient subdivisionContained dry process supportHazardous sample preparation

Technische Parameter

Typical configurable construction ranges for an enclosed powder containment booth are listed below.

Core Material	High-density mineral-wool cleanroom panels with SUS316L internal liners and staged containment filter housings
Panel Dicke	75-120 mm pressure-resistant enclosure panels
Effektive Breite	2000-5000 mm clear process-room width
Maximale Länge	Up to 10000 mm enclosed booth length
Stahl facing Dicke	1.2-1.5 mm SUS316L inner facing; 1.0-1.2 mm outer steel
Kerndichte	100-150 kg/m³ high-density mineral-wool core
Thermische Leitfähigkeit	0,035 - 0,045 W / (m · K) für den Mineralwollkern
Oberfläche Finish	Fine-brushed or electropolished SUS316L interior with sealed external powder coating

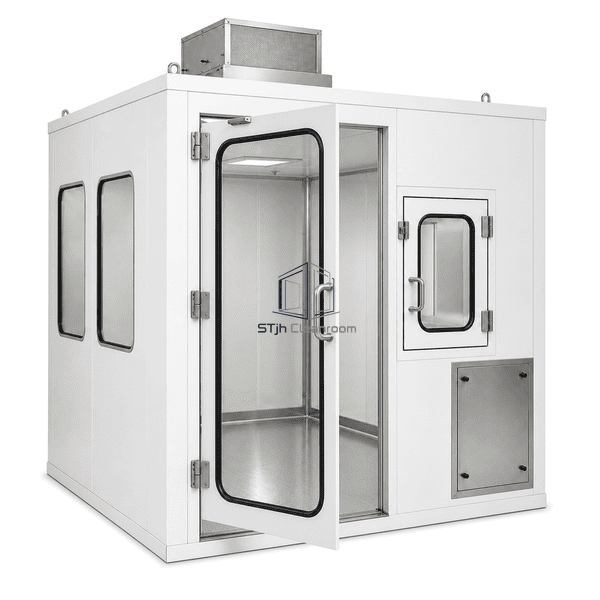

Gemeinsamer Typ	Pressure-sealed flush panel joints with gasketed monitored doors and welded return ducts
Customisierung	Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung.

Verfügbare Optionen

Personnel and material airlocksBag-in/bag-out filter housingsIntegrated wash-down utilitiesOnce-through or recirculating airflow

Planning a Enclosed Powder Containment Booth specification?

Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
