Reinraum Wand - und Deckensysteme
Aluminium Honeycomb Reinraum Sandwich Panel

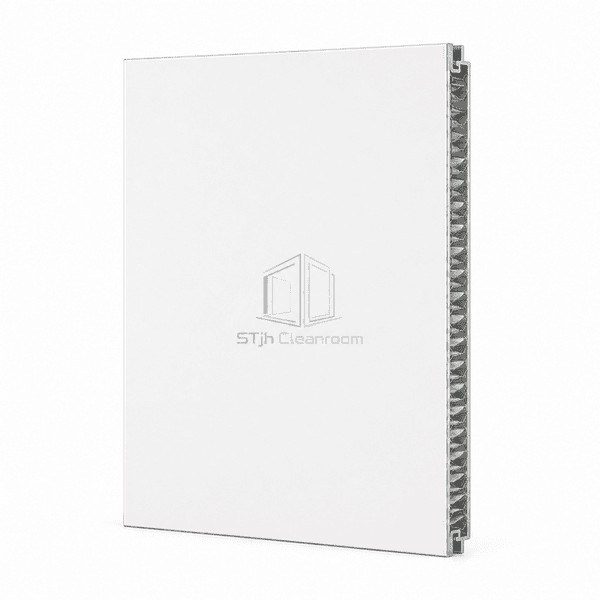

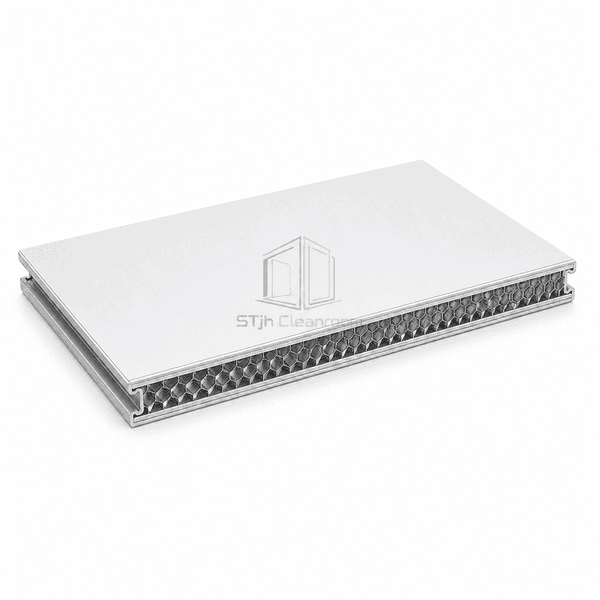

A high-flatness cleanroom wall and ceiling panel using a hexagonal aluminum honeycomb core between smooth metal facings, combining low weight, non-shedding construction and strong resistance to bending.
- Aluminum Honeycomb Core
- High Strength-to-Weight Ratio
- Excellent Surface Flatness
- Non-Shedding Interior
Produkteinführung

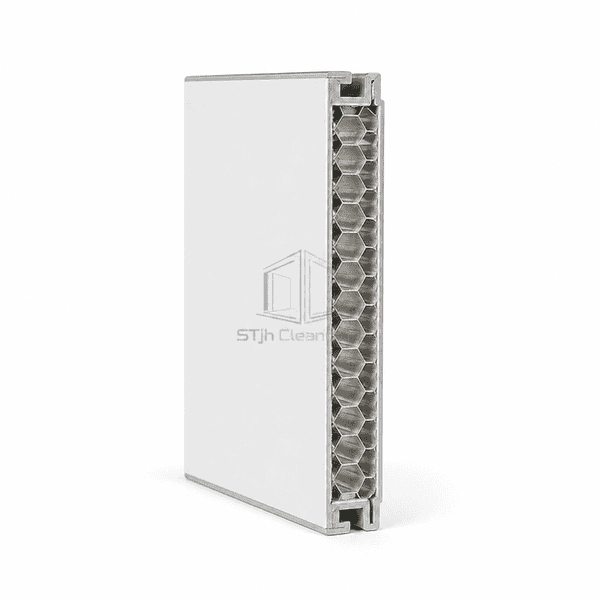

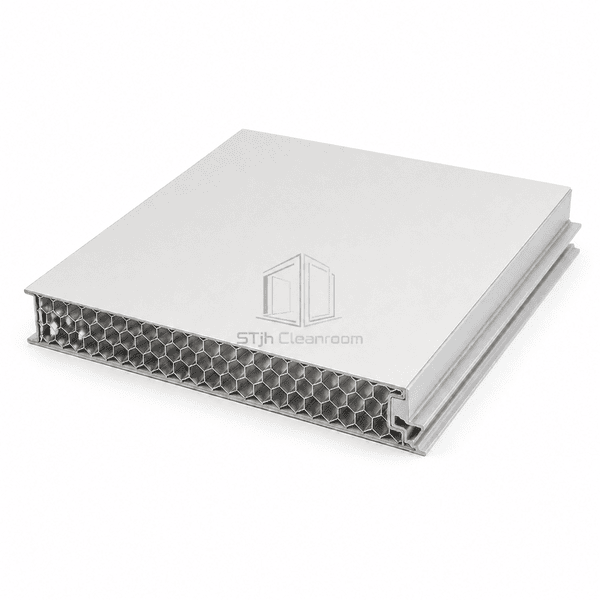

Aluminum Honeycomb Cleanroom Panels use thin aluminum foil formed into hexagonal cells and bonded between metal skins. Thousands of cell walls support the facings, giving the panel high bending stiffness without the mass of a dense mineral core. The all-metal cellular center does not release fibres and is well suited to smooth wall modules and accessible ceilings. Four-sided aluminum framing closes the core and provides accurate connections for tongues, trims and suspension hardware. Local reinforcement can be built in where lights or service equipment impose concentrated loads.
Key Features
Low core mass reduces ceiling dead load and simplifies lifting of large modules.
The aluminum core is non-shedding and remains dimensionally stable in normal indoor humidity.
Uniform cellular support produces a notably flat finished face.
Reinforced inserts can transfer localized equipment loads into the surrounding frame.
Kunden Produktbedenken
Selection normally centers on local load reinforcement, edge closure, acoustic behavior and interface precision.
Ceiling panels must remain light while resisting deflection across service openings.Aluminum honeycomb provides high bending stiffness with substantially less core mass than dense mineral panels.
Fixtures can crush thin honeycomb cells when loads are applied at one small point.Solid inserts and perimeter rails spread concentrated loads into a wider panel area.
Open foil cells at cut edges can collect debris and complicate cleaning.Four-sided frames and finished cut-outs completely close every exposed honeycomb edge.
Poorly bonded skins can create visible local waviness.Controlled adhesive coverage and uniform pressing maintain continuous support across the panel face.
Typische Anwendungen
Semiconductor and microelectronics cleanroomsWalk-access service ceilingsBiopharmaceutical production enclosuresPrecision laboratoriesHigh-flatness modular partitions
Technische Parameter
Common cleanroom-grade aluminum honeycomb panel specifications are listed below.
| Core Material | 3003-series hexagonal aluminum honeycomb, 5–8 mm cell size |
|---|---|
| Panel Dicke | 40, 50, 60 or 80 mm |
| Effektive Breite | 1100 or 1200 mm |
| Maximale Länge | 6000 mm |
| Stahl facing Dicke | 0,50 - 0,60 mm |
| Kerndichte | Approximately 27 kg/m³ |
| Thermische Leitfähigkeit | 0.11–0.15 W/(m·K) |
| Oberfläche Finish | PVC-laminated, polyester-coated or stainless steel surface |
| Gemeinsamer Typ | Four-sided aluminum frame with PVC or aluminum tongue |
| Customisierung | Verfügbar basierend auf der beabsichtigten Anwendung und Betriebsumgebung |
Verfügbare Optionen
Load-bearing ceiling insertsStainless steel or aluminum facingAlternative honeycomb cell sizeIntegrated lighting and filter openings
Planning a Aluminum Honeycomb Cleanroom Sandwich Panel specification?
Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
