Instrumentación de prueba y validación de sala limpia
Generador de aerosol por
A portable droplet aerosol generator for introducing stable challenge concentrations during HEPA filter integrity tests and cleanroom airflow studies.
- Steady output establishes a consistent upstream filter challenge.
- Adjustable aerosol delivery spans compact terminals and larger air systems.
- An internal pump and cleanable liquid path support mobile testing.
Introducción del producto

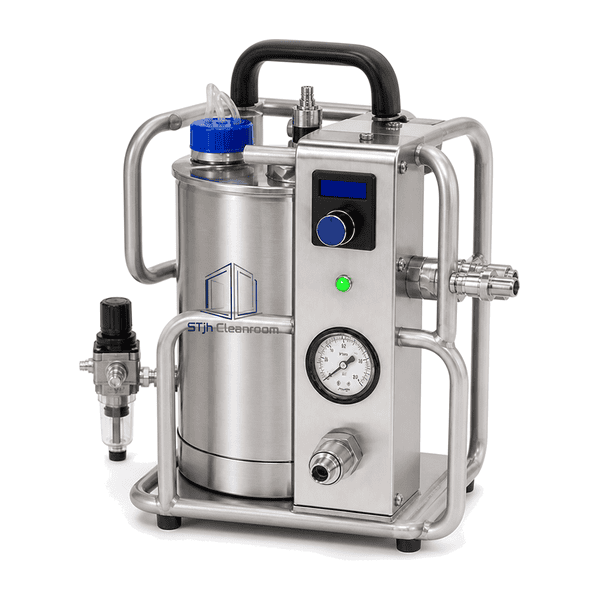

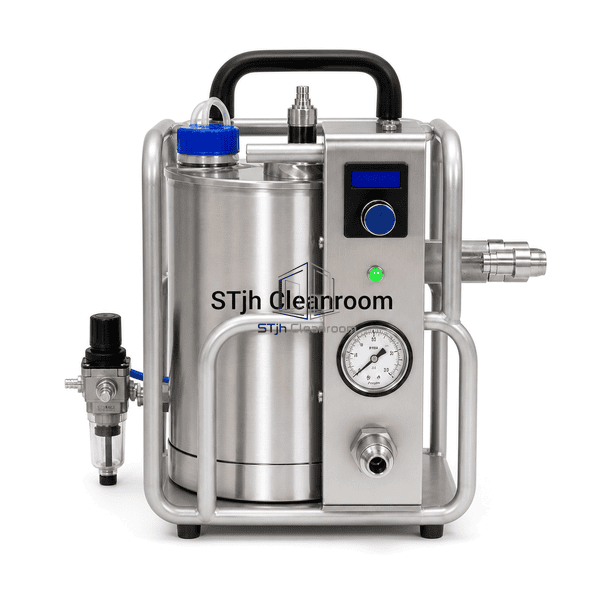

This aerosol generator atomizes a compatible test liquid into a repeatable droplet aerosol for filter leakage testing, cleanroom qualification and laboratory work. A corrosion-resistant reservoir, precision nozzle assembly and adjustable air supply provide controlled output without exposing the liquid to unnecessary contamination. Portable configurations use an internal pump, while compressed-air versions offer high output for larger air-handling systems.
Características clave
Adjustable generation rate adapts to cabinets, terminal filters and larger duct systems.
Stainless-steel reservoir and cleanable nozzle path simplify changeover between compatible liquids.
Portable internal-pump options operate where a compressed-air connection is unavailable.
Visible liquid level and protected fill port reduce handling errors during field work.
Compact construction allows placement close to the intended aerosol injection point.
Preocupaciones del producto del cliente
Field aerosol generation must hold the target challenge concentration despite limited injection space or air supply while allowing the reservoir and liquid path to be cleaned fully between test fluids.
An unstable aerosol challenge can make leak-test results difficult to compare.Regulated atomizing air and repeatable nozzle settings provide a controlled generation rate after warm-up.
Residual test liquid may contaminate the next application.A drainable stainless reservoir and accessible nozzle path support documented cleaning between liquids.
Field locations may not provide suitable compressed air.Select a battery-powered internal-pump configuration for independent portable operation.
Excessive aerosol can overload the downstream photometer or particle counter.Adjustable output and staged nozzle activation allow the operator to approach the target concentration gradually.
Aplicaciones típicas
HEPA and ULPA filter integrity testingCleanroom and laminar-flow cabinet qualificationFilter media efficiency developmentSmoke-detector and aerosol-instrument testingLaboratory generation of DEHS, PAO or compatible salt-solution aerosols
Parámetros técnicos
The table outlines representative reservoir, nozzle, pump body, connection, material, and dimensional configurations for a portable liquid-droplet aerosol generator, with selection matched to the filter system and injection method.
| Materiales Core | Passivated stainless-steel liquid reservoir with precision atomizing nozzle, seals and regulated air circuit |
|---|---|
| Panel de espesor | Typically 1.0–1.5 mm for the protective enclosure panels |
| Ancho efectivo | Approximately 180–300 mm according to reservoir and pump configuration |
| Longitud máxima | Approximately 300–500 mm including handle and aerosol outlet |
| Acero frente a espesor | Typically 1.0–1.5 mm stainless steel |
| Densidad Core | Not applicable; no insulation core is used (0 kg/m³) |
| Conductividad térmica | Approximately 14–16 W/(m·K) for stainless-steel reservoir and enclosure parts |
| Superficie acabada | Fine-brushed passivated stainless steel with chemical-resistant dark polymer controls |

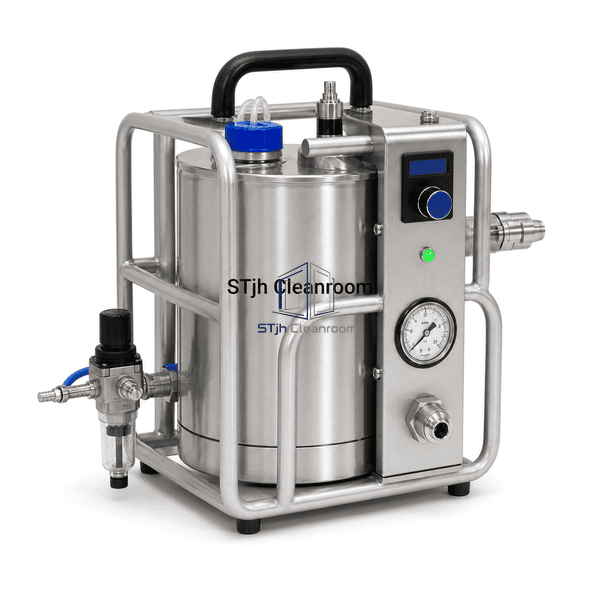

| Tipo conjunto | Threaded fill cap, regulated compressed-air inlet and barbed or threaded aerosol outlet |
| Customization | Disponible según la aplicación prevista y el entorno operativo. |
Opciones disponibles
Internal pump or external compressed-air operationSingle or multiple atomizing nozzlesDEHS, PAO or compatible salt-solution configurationBattery and mains powerFlexible aerosol outlet hose and injection adaptersStainless transport case
Planning a Aerosol Generator specification?
Envíenos sus dimensiones, condiciones de instalación, objetivos de rendimiento y acabado superficial requerido.
