Three-quarter view of a short-depth compact medium-efficiency air filter

공기 필터 및 화학 여과

Compact Medium - Efficiency Air Filter (중간 효율 공기 필터)

A short-depth rigid filter designed to upgrade fine-particle capture where a full-depth box or long pocket filter cannot be installed.

Short Installation Depth
Deep Mini-Pleat Media
Rigid Header Interface
Retrofit-Friendly Footprint

견적 요청 제품 찾아보기

상품 소개

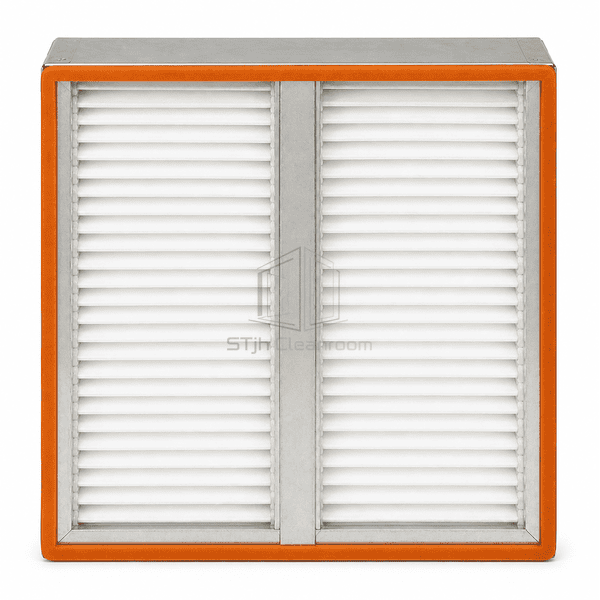

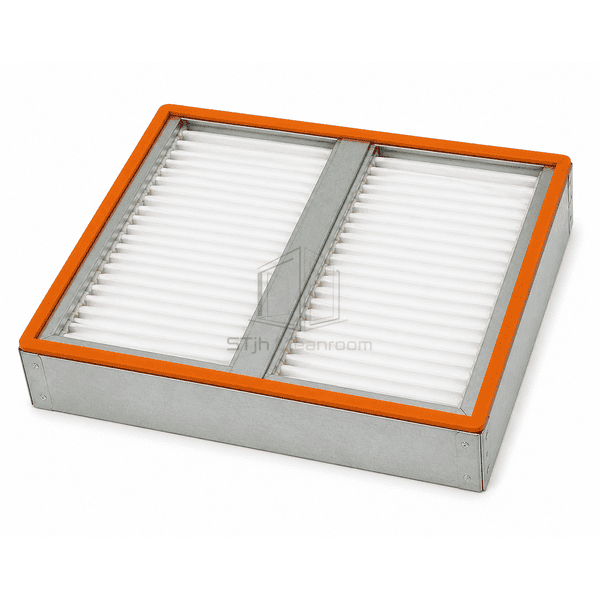

The compact medium-efficiency air filter uses one or more deep mini-pleat media blocks secured inside a short rigid cell with a full perimeter header. Unlike a long flexible pocket filter, the supported pack retains a fixed outline and requires little downstream clearance. Hot-melt separators regulate pleat spacing, while the sealed frame and optional compression gasket create a defined interface with existing filter tracks. This construction is intended for air-handling units that need ePM1 filtration but have insufficient depth for a 292 mm V-bank or 600 mm pocket configuration.

주요 기능

A short cell depth fits retrofit cabinets and fan-coil sections with restricted service space.

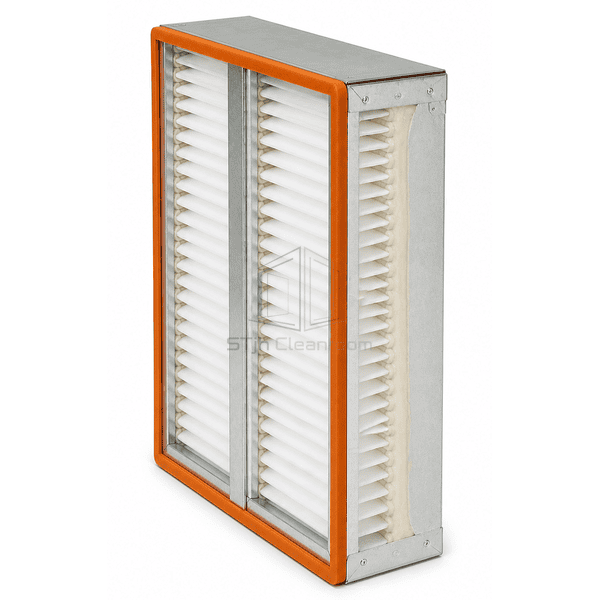

Deep mini-pleat blocks retain useful media area without projecting into the downstream plenum.

A continuous header offers a stable sealing surface in front-access and side-access tracks.

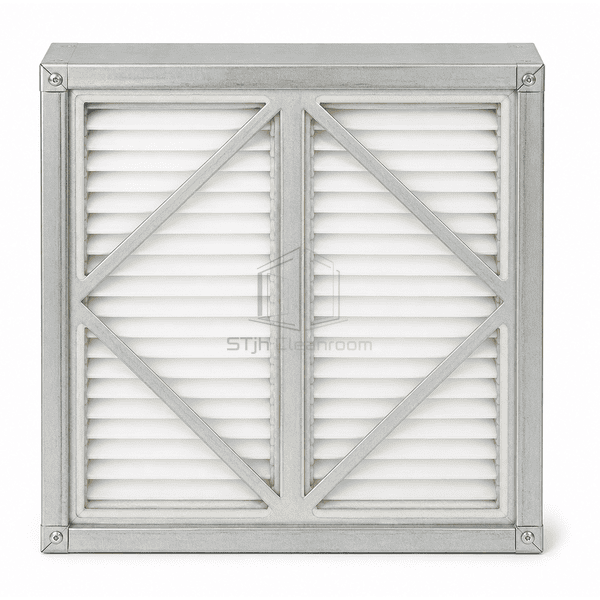

Rigid pack support eliminates pocket movement near coils, dampers and access doors.

고객 제품 관심사

Restricted cabinet depth often prevents an efficiency upgrade unless the media area is packaged into a rigid compact format.

Existing equipment has no clearance for long filter pockets.A fixed short-depth cell keeps the complete filter inside the original track envelope.

A shallow ordinary panel cannot provide enough fine-media area.Deep mini-pleats concentrate substantially more media within the same face dimensions.

Loose retrofit filters leak because their headers do not match the old rack.Selectable header profiles and gaskets create a positive compression interface with the existing frame.

Downstream components contact and abrade unsupported filter bags.The fully enclosed rigid pack maintains clearance from coils, dampers and cabinet hardware.

일반적인 응용 프로그램

Retrofit air-handling unitsFan-coil and packaged HVAC systemsCleanroom support-area ventilationHospital refurbishment projectsIntermediate filtration in shallow housings

기술 매개변수

Typical construction ranges for a short-depth compact medium-efficiency air filter are shown below.

핵심 재료	Fine glass-fiber or synthetic mini-pleat media with hot-melt separators
패널 두께	95, 120 or 150 mm compact cell depth
유효 폭	287-610 mm modular face width
최대 길이	Up to 610 mm modular face length
강철 면면 두께	0.45-0.70 mm galvanized-steel header or optional protective faceguard
코어 밀도	Approximately 75-125 kg/m³ nominal assembled compact-pack density
열전도도 (Thermal Conductivity)	Approximately 0.034-0.043 W/(m·K) for the dry fiber media
표면 마무리	White media pack in galvanized steel, molded plastic or anodized aluminum
접합 유형	Mini-pleat media block bonded into a rigid box cell with a full perimeter header
사용자 정의	의도된 응용 프로그램 및 운영 환경에 따라 사용할 수 있습니다.

사용 가능한 옵션

ISO ePM1 50-80% grades95 mm, 120 mm or 150 mm cell depthSingle-header, double-header or box profileFront or downstream gasket location

Planning a Compact Medium-Efficiency Air Filter specification?

치수, 설치 조건, 성능 목표 및 필요한 표면 마감을 보내십시오.
