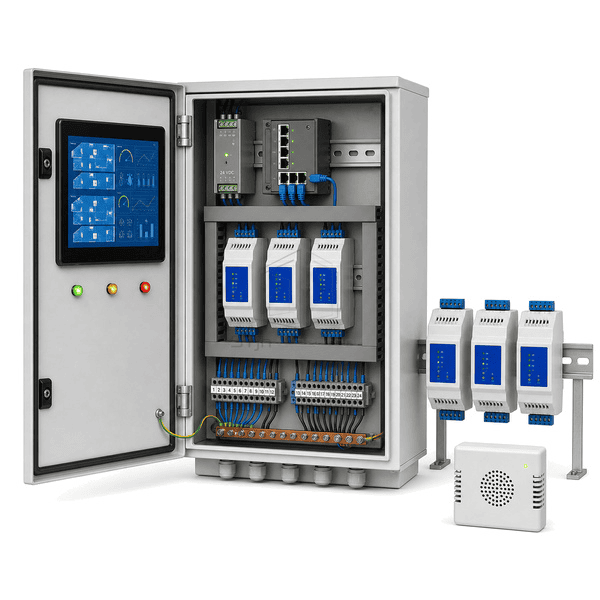

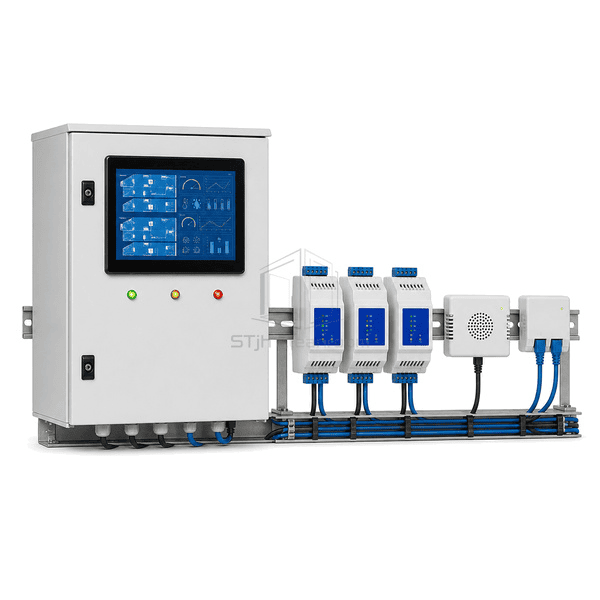

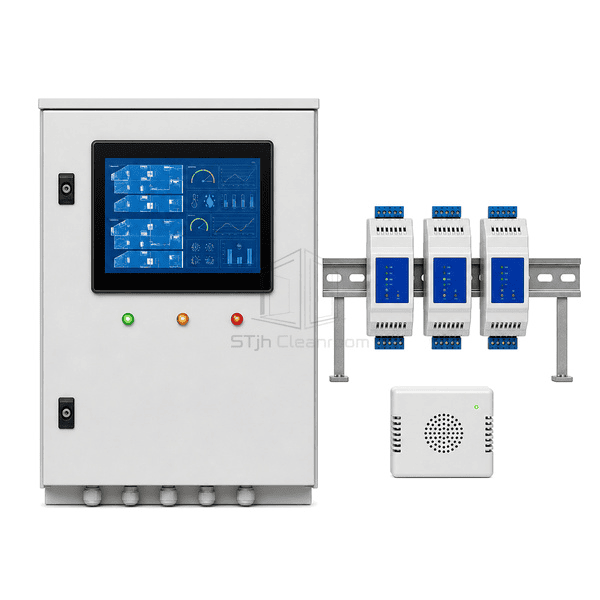

Complete cleanroom environmental monitoring panel with server display and distributed logger modules

Kontrol Cleanroom dan Sistem Pemantauan Lingkungan

Sistem Pemantauan Lingkungan (Environmental Monitoring System)

A continuous monitoring platform that acquires cleanroom pressure, temperature, humidity, particle and utility-status signals for centralized alarming and records.

Continuous Multi-Parameter Capture
Distributed Data Loggers
Excursion Alarms
Central Trend Records

Permintaan untuk kutipan Browse Produk

Perkenalan produk

This monitoring system is independent of routine HVAC control and concentrates on trustworthy acquisition, local buffering and clear exception reporting. Distributed loggers receive digital sensors, analog transmitters and door contacts, then forward time-stamped measurements to the monitoring server. Local memory preserves readings during network interruptions, while configurable alarm delays reduce nuisance notifications caused by brief door movement. The platform presents room dashboards, trends and scheduled reports for cleanrooms, storage areas and supporting utilities.

Fitur utama:

Distributed loggers collect mixed measurement types close to the monitored rooms.

Local memory protects measurement continuity when network communication is interrupted.

Independent alarm limits, delays and notification paths can be assigned to each parameter.

Central dashboards compare live status, historical trends and acknowledged excursion events.

Kekhawatiran produk pelanggan

Environmental records must remain continuous and understandable even when sensors, network links and room activities change independently.

A network outage creates gaps in critical environmental records.Data loggers buffer measurements locally and backfill the server after communication returns.

Short door openings trigger repeated nuisance alarms.Per-parameter delay and deadband settings distinguish brief disturbances from sustained excursions.

Different sensor types cannot share one monitoring platform.Analog, digital, Modbus and dry-contact inputs accept mixed field instrumentation.

Staff cannot quickly identify which room requires attention.Color-coded floor and room views prioritize active alarms and show the responsible parameter.

Aplikasi yang Tipis

GMP cleanroom monitoringControlled storage suitesLaboratory environmental recordsMulti-room critical facilities

Parameter teknis

Typical enclosure construction for a distributed cleanroom environmental monitoring panel is listed below.

Bahan inti	Powder-coated steel enclosure with FR-4 acquisition boards and isolated signal-conditioning modules
Ketebalan Panel (Panel Thickness)	180-300 mm enclosure depth
Efektif lebar	500-1000 mm panel width
Panjang maksimum	Up to 1800 mm panel height
Baja menghadap ketebalan	1.2-1.8 mm powder-coated steel panels
Kepadatan inti (core density)	7800-8050 kg/m³ for steel enclosure parts
Konduktivitas Termal (Thermal Conductivity)	45-60 W/(m·K) for the steel enclosure
Permukaan selesai	Smooth light-gray powder coat with engraved channel and alarm labels
Jenis Bersama	Gasketed wall or floor cabinet with pluggable I/O terminals and network isolation sections
Customization (Kustomisasi)	Tersedia berdasarkan aplikasi yang dimaksudkan dan lingkungan operasi.

Pilihan yang tersedia

Wired or wireless data loggersSMS and email alarm routingRedundant database storageIntegrasi OPC UA dan API
