FFU et équipement de purification de l'air terminal
Unité de filtration ventilateur en acier inoxydable
An all-welded brushed stainless steel FFU with sealed seams and cleanable hardware for sanitary, chemical-resistant or frequently wiped cleanroom ceilings.
- All-Welded Stainless Housing
- Cleanable Brushed Surfaces
- Sealed Hygienic Corners
- Room-Side Service Option
Introduction de produit

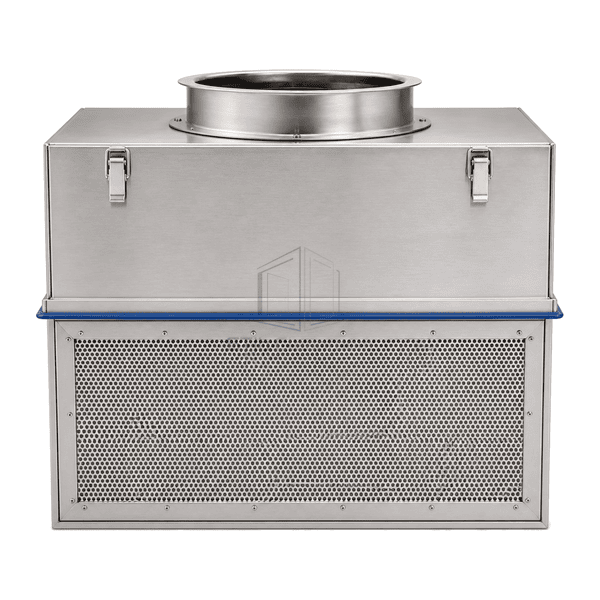

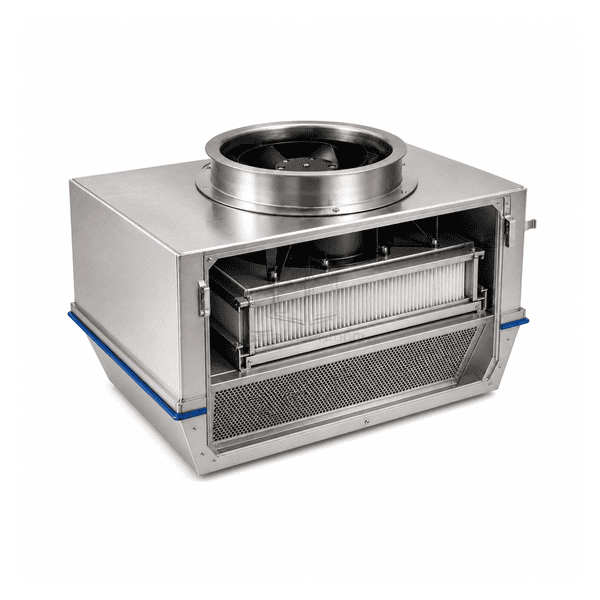

The stainless steel fan filter unit encloses the blower, pressure chamber and final filter in a formed 304 or 316 stainless casing. Continuous welded corner seams remove overlapping raw edges from exposed surfaces, and the brushed grain gives cleaning staff a consistent wipe direction. Stainless latches, a silicone perimeter gasket and a perforated stainless diffuser support hygienic maintenance on both the service and cleanroom sides. The construction is suitable where painted steel would be vulnerable to repeated chemical wiping, moisture or process residues.
Key Features
A uniform brushed finish limits glare while leaving a smooth surface that can be wiped in a controlled direction.

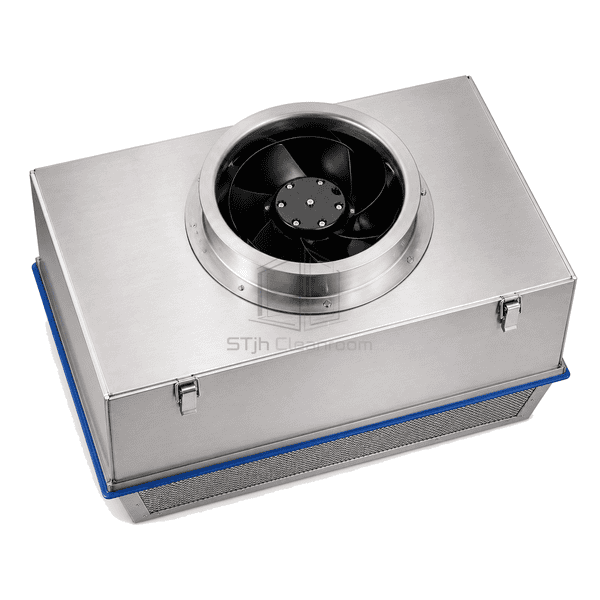

Stainless latches and fasteners avoid mixed exposed materials around frequently handled service points.

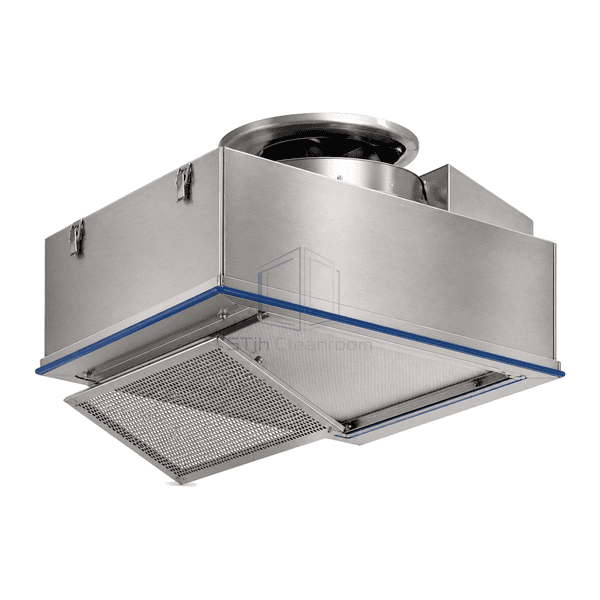

An optional room-side filter arrangement permits removal without opening an inaccessible interstitial ceiling space.
Préoccupations du client produit
A hygienic FFU must tolerate repeated cleaning while preventing seams, coatings and mixed-metal hardware from becoming contamination traps.
Paint chips at service-panel edges expose corroding base metal above a critical clean zone.A stainless housing provides corrosion resistance through the sheet thickness instead of relying on a surface coating.
Folded overlaps and unsealed corners retain liquid after ceiling cleaning.Continuous welded seams and flush corner finishing remove open crevices from the exposed enclosure.
Aggressive disinfectants stain or soften ordinary painted diffusers and fasteners.A brushed stainless diffuser, latches and hardware present a consistent cleanable material system.
Ceiling access is limited in sealed pharmaceutical suites.A room-side service option allows the filter and selected fan components to be reached from the clean zone.
Les applications typiques
Aseptic pharmaceutical productionBiotechnology processing roomsNourriture et boissons espaces propresHigh-humidity clean manufacturingFacilities using frequent chemical wipe-down
Paramètres techniques
Typical materials and dimensional ranges for a hygienic stainless steel fan filter unit are provided below.
| Matériaux de base | 304 or 316 stainless-steel plenum, backward-curved EC fan and micro-glass HEPA or ULPA filter pack |
|---|---|
| Panneau épaisseur | 300-420 mm overall module depth |
| Largeur effective | 575 - 1170 mm Largeur nominale de grille de plafond par |
| Longueur maximale | Jusqu'à 1170 mm de longueur standard du module par |
| Acier face épaisseur | 1.0-1.5 mm 304 or 316 stainless-steel housing sheet |
| Densité Core | Approximately 90-120 kg/m³ nominal compacted density of the micro-glass pack installed in the stainless-steel FFU |
| Conductivité thermique | Approximately 0.035-0.043 W/(m·K) for the dry final-filter pack enclosed by the stainless-steel FFU |
| surface finie | No. 4 brushed stainless steel or optional electropolished exposed surfaces |
| Type joint | All-welded plenum with silicone ceiling gasket and gel-seal or compression-seal room-side filter interface |
| Customisation | Disponible en fonction de l'application prévue et de l'environnement d'exploitation. |
Options disponibles
304 or 316 stainless steelNo. 4 brushed or electropolished finishTop-access or sanitary room-side service configurationStainless-framed HEPA or ULPA gel-seal filter
Planning a Stainless Steel Fan Filter Unit specification?
Envoyez-nous vos dimensions, conditions d'installation, objectifs de performance et finition de surface requise.
