Complete ESD hand protection kit with conductive gloves wrist bands and cords

Produits ESD et antistatiques

Système de protection ESD

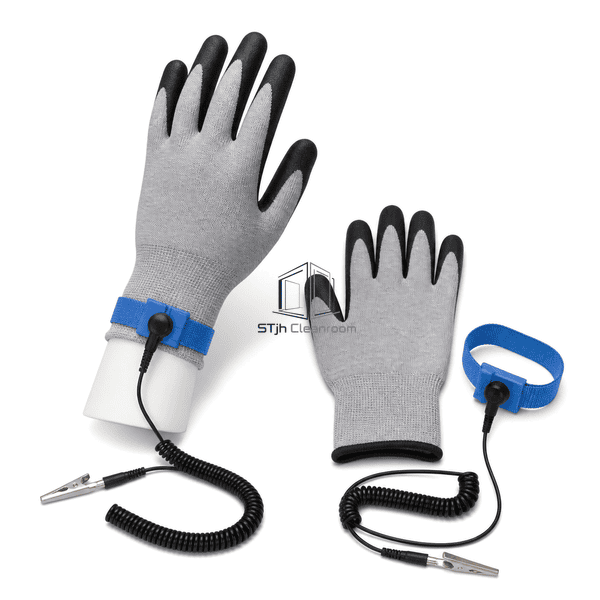

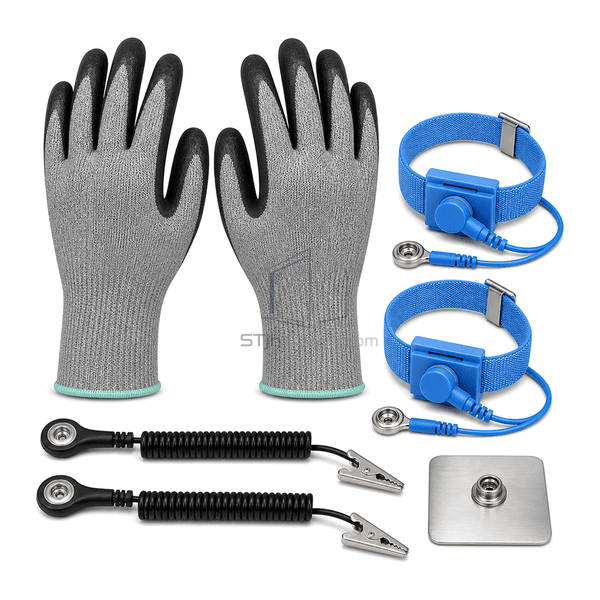

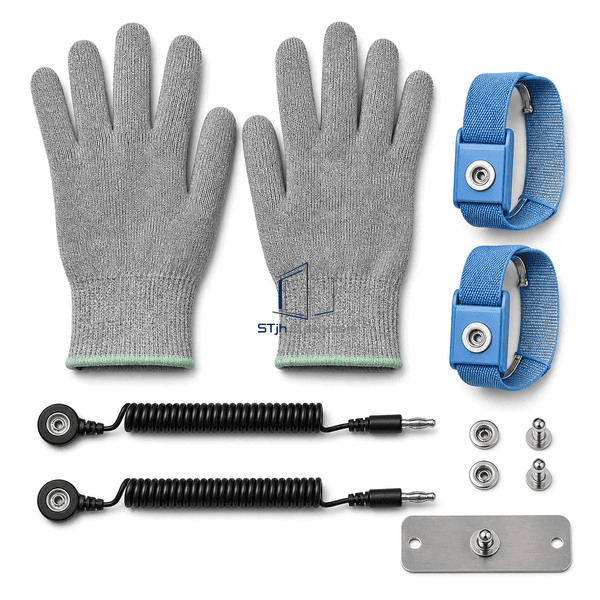

The ESD Hand Protection System combines seamless conductive-fiber gloves, grip-coated fingertips and adjustable wrist grounding components for sensitive handling tasks.

Conductive knit controls charge while preserving dexterity.
Coated fingertips improve grip on small components.
Wrist connection integrates hand protection with the ground path.

Demander un devis. Browse les produits

Introduction de produit

Fine-gauge nylon or polyester yarn is blended with conductive filament to distribute charge across each glove. Polyurethane fingertip coating improves controlled pickup without covering the breathable back. Adjustable bands and coiled leads provide the operator grounding interface where the site procedure requires a direct corded path.

Key Features

Seamless knit limits pressure points during precision work.

Conductive filament runs through the glove structure.

Thin polyurethane fingertips preserve tactile response.

Elastic cuffs maintain a close, stable fit.

Detachable wrist bands and cords are individually replaceable.

Light gray fabric makes visible contamination easier to identify.

Préoccupations du client produit

Hand protection must balance electrostatic behavior, skin contact, grip, cleanliness and the tactile control required for small parts.

Ordinary gloves can generate charge during movement.Conductive filament dissipates charge through the glove structure.

Smooth knit slips on miniature components.Thin polyurethane coating adds grip at the working fingertips.

Heavy coatings reduce touch sensitivity.Fingertip-only coverage leaves most of the glove flexible and breathable.

A loose cuff interrupts consistent contact.Elastic cuffs and adjustable wrist bands maintain close fit.

Worn or contaminated gloves are reused without verification.Replaceable pairs and periodic resistance checks support controlled maintenance.

Les applications typiques

Printed circuit board assembly.Semiconductor component inspection.Precision optics and sensor handling.Electronics repair and rework.Static-sensitive packing operations.

Paramètres techniques

These values represent common fine-gauge conductive handling gloves and companion grounding hardware; size, coating area and connector style are configurable.

Matériaux de base	Conductive nylon/polyester knit with carbon-suffused filament
Panneau épaisseur	0.5–1.0 mm knitted glove thickness
Largeur effective	85–115 mm palm width by size
Longueur maximale	Up to 260 mm glove length
Acier face épaisseur	0.5 mm nominal stainless snap shell thickness
Densité Core	180–260 kg/m³ equivalent knitted bulk density
Conductivité thermique	0.04–0.07 W/(m·K)
surface finie	Gray seamless knit with black polyurethane fingertip coating

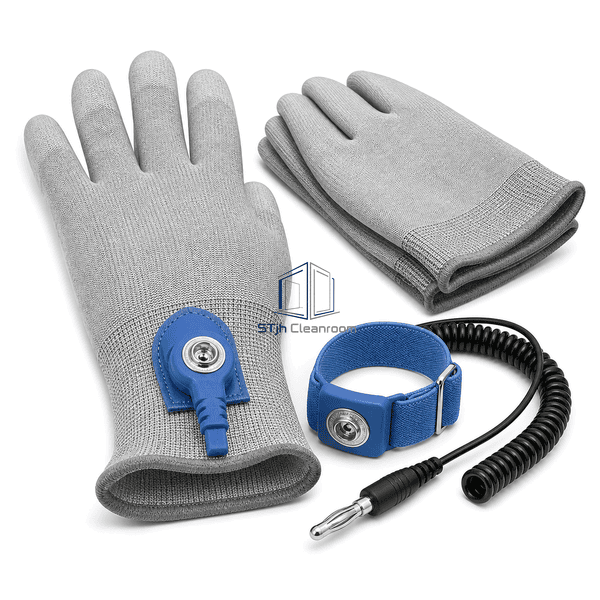

Type joint	Elastic cuff with adjustable snap wrist band and detachable coiled cord
Customisation	Disponible en fonction de l'application prévue et de l'environnement d'exploitation.

Options disponibles

Fingertip, palm or uncoated configurations.Multiple glove sizes and cuff colors.Carbon, copper or silver conductive yarn blends.Single-wire wrist strap and cord sets.Alternative snap and plug formats.Clean-packed versions for controlled environments.

Planning a ESD Hand Protection System specification?

Envoyez-nous vos dimensions, conditions d'installation, objectifs de performance et finition de surface requise.
