Luftfilter und chemische Filtration
Kernkraft-HEPA - Filter
A heavy-duty metal-frame HEPA filter using water-resistant borosilicate microfibre media and reinforced pack construction for demanding critical-air and confinement systems.
- Heavy-Duty Metal Frame
- Water-Resistant Microglass
- Reinforced Separator Pack
- High-Integrity Perimeter Seal
Produkteinführung
The nuclear-grade HEPA filter is built as a robust critical-air component rather than a lightweight commercial panel. Water-resistant borosilicate microfibre media is folded around corrugated aluminium separators or formed as a reinforced separatorless pack, then bonded into a galvanized-steel or stainless-steel frame. Protective screens, rigid corners and a continuous elastomer gasket support handling in confinement, radiological and critical industrial exhaust systems. Construction details, material traceability and individual performance documentation can be aligned with the user's available project documentation without inventing report numbers on the public page.
Key Features
Water-resistant borosilicate microfibre media provides a stable filtration matrix for critical air-cleaning duty.

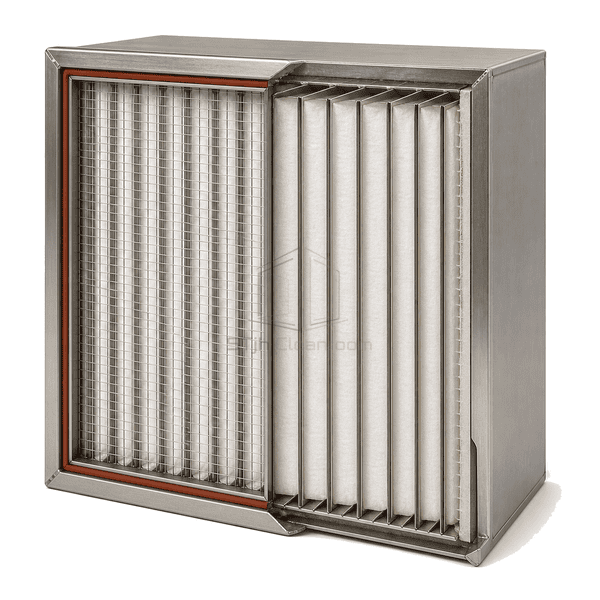

Corrugated aluminium separators maintain deep flow channels and protect pleat spacing under differential pressure.

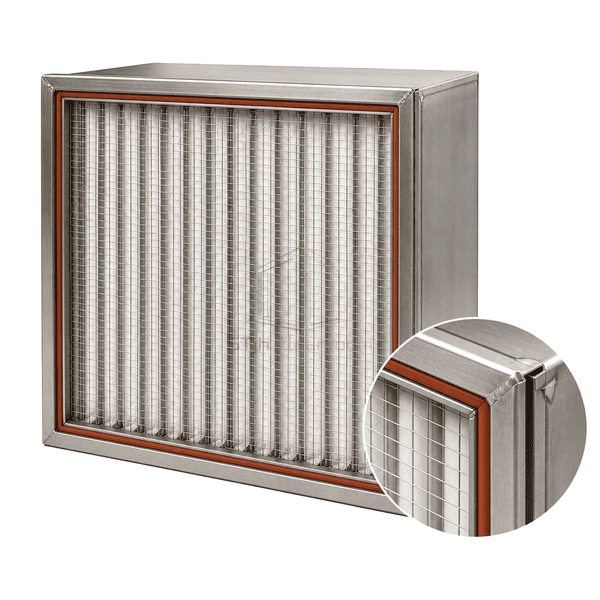

Continuous potting and a durable closed-cell gasket form a defined pack-to-frame and frame-to-housing seal path.
Kunden Produktbedenken
Critical confinement systems require filters that remain mechanically stable and seal consistently during demanding operation and controlled maintenance.
A commercial light-gauge frame is vulnerable to distortion in a heavy-duty housing.Reinforced galvanized or stainless-steel construction keeps the gasket plane square under clamping load.
Media pleats shift under high differential pressure and create uneven flow paths.Corrugated separators or reinforced separatorless supports preserve channel spacing through the pack.
Moisture exposure weakens untreated filtration paper.Water-resistant microfibre media and sealed pack edges improve resilience in critical ventilation service.

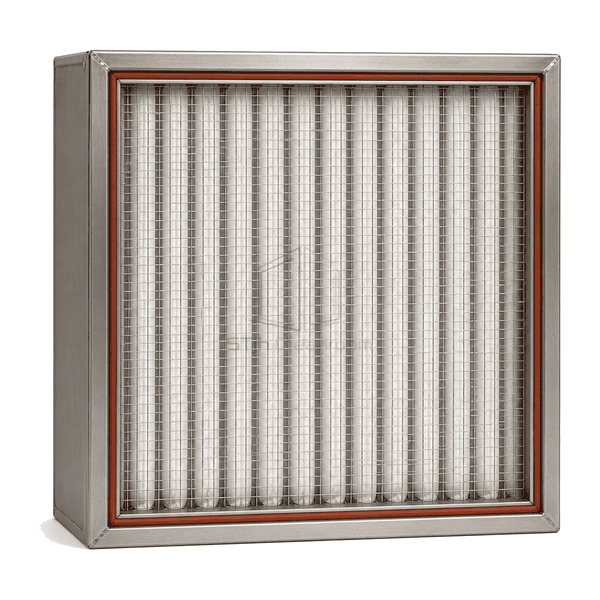

Handling a dense loaded filter damages an unprotected media surface.Rigid face screens on both sides isolate the pleats from tools, housing rails and change-out equipment.
Typische Anwendungen
Nuclear facility confinement ventilationRadiopharmaceutical exhaust systemsCyclotron and isotope-production areasCritical research laboratory exhaustHigh-integrity industrial air-cleaning trains
Technische Parameter
Representative heavy-duty construction ranges for a nuclear-grade HEPA filter are listed below.
| Core Material | Water-resistant borosilicate glass-microfibre HEPA media with aluminium separators or reinforced separatorless supports |
|---|---|
| Panel Dicke | 149–292 mm overall filter depth |
| Effektive Breite | 305 - 610 mm Nenngesichtbreite |
| Maximale Länge | Up to 762 mm nominal face height |
| Stahl facing Dicke | 1.0–1.5 mm galvanized-steel or stainless-steel reinforced frame |
| Kerndichte | Approximately 45–75 kg/m³ equivalent reinforced media-pack density |
| Thermische Leitfähigkeit | Approximately 0.038–0.048 W/(m·K) for the dry borosilicate media pack |
| Oberfläche Finish | Mill-galvanized steel or clean brushed stainless steel with rigid protective screens |
| Gemeinsamer Typ | Continuous silicone, neoprene or EPDM gasket with fully potted media-pack perimeter |
| Customisierung | Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung. |
Verfügbare Optionen
Separator or separatorless media packGalvanized-steel or stainless-steel frameSilicone, neoprene or EPDM gasketStandard or high-temperature construction package
Planning a Nuclear-Grade HEPA Filter specification?
Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
