Complete automatic cleanroom sliding door with overhead operator

클린룸 도어, 창문 및 인터락 시스템

자동 클린룸 슬라이딩 도어

A motorised cleanroom sliding doorset with touchless activation, adjustable travel, safety monitoring and a smooth insulated leaf for high-frequency hands-free passage.

Touchless Automatic Operation
Brushless Motor Drive
Adjustable Opening and Closing
Monitored Safety Sensors

견적 요청 제품 찾아보기

상품 소개

The Automatic Cleanroom Sliding Door adds a compact drive motor, controller and safety sensors to an overhead sliding leaf. Foot, elbow, wave or access-control signals open the door without hand contact, while the controller monitors position and regulates acceleration and closing speed. A polyurethane-cored steel leaf keeps moving mass controlled, and the accessible operator cover allows routine adjustment without disturbing the wall opening.

주요 기능

Hands-free activation reduces handle contact during material and personnel movement.

Controlled acceleration limits air disturbance and mechanical shock at the end positions.

Safety presence detection reverses or holds the leaf when the opening is occupied.

A low-mass polyurethane-cored leaf reduces the drive load for frequent cycles.

Integrated status contacts support interlocks, access control and building monitoring.

고객 제품 관심사

Automatic sliding doors must combine hands-free convenience with safe sensing, restrained air movement and accessible drive maintenance.

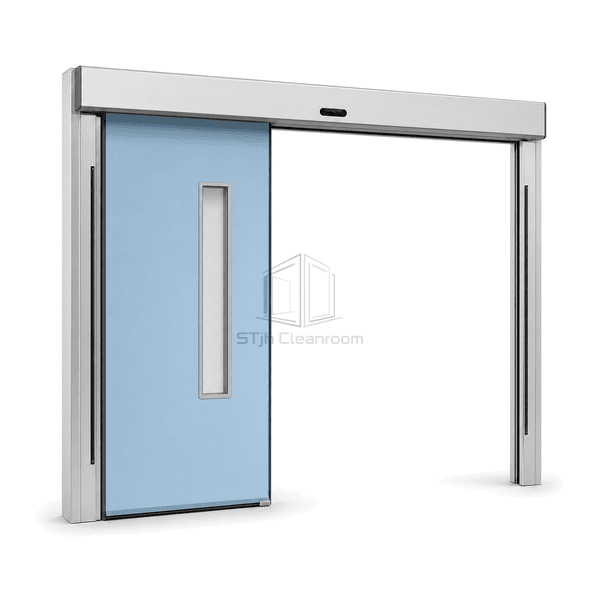

Operators carrying sterile materials cannot use a manual handle safely.Wave, foot or access-control activation opens the doorway without hand contact.

Fast leaf movement creates unnecessary air turbulence at the cleanroom boundary.Programmable acceleration, travel speed and hold-open time adapt movement to the traffic pattern.

A closing leaf can contact people or carts in the opening.Presence and anti-pinch sensors monitor the travel zone and command safe reversal.

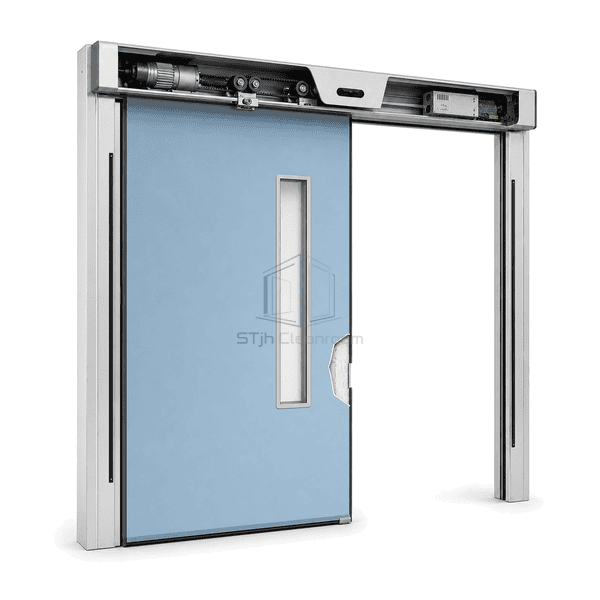

Drive faults make a concealed operator difficult to service.A removable overhead cover exposes the motor, belt and controller from the room side.

일반적인 응용 프로그램

Pharmaceutical personnel routesHospital clean areasTouchless laboratory entrancesElectronics production corridorsHigh-frequency cleanroom material flow

기술 매개변수

Typical physical construction values for an automatic cleanroom sliding doorset are shown below.

핵심 재료	Closed-cell rigid polyurethane foam
패널 두께	40-50 mm sliding door leaf
유효 폭	750-1600 mm single-sliding clear opening
최대 길이	2400 mm maximum leaf height
강철 면면 두께	0.8-1.0 mm powder-coated steel skins
코어 밀도	40-45 kg/m³ polyurethane
열전도도 (Thermal Conductivity)	0.022-0.028 W/(m·K) typical polyurethane core range
표면 마무리	Smooth powder-coated steel or brushed stainless steel

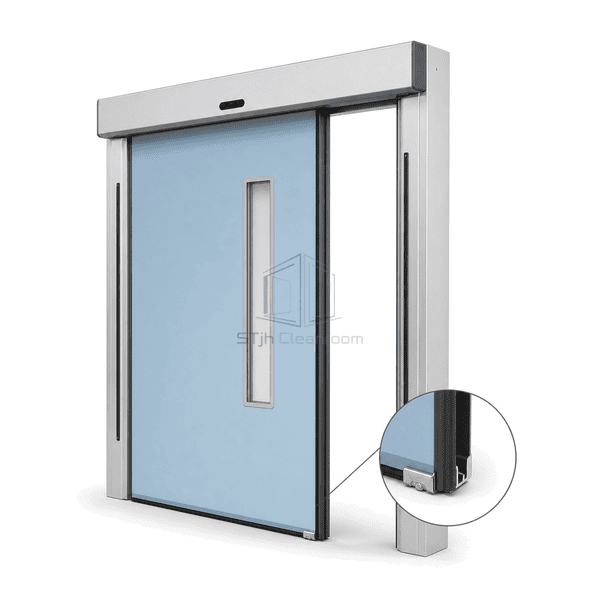

접합 유형	Motor-driven overhead rail with monitored safety edge and perimeter brush/EPDM seals
사용자 정의	사용 대상 어플리케이션 및 운영 환경에 따라 사용 가능

사용 가능한 옵션

Wave, foot or radar activationBattery backupBi-parting double leavesInterlock and access-control integration
