Cleanroom Utility Systemen
Labor-Ultrareines Wassersystem
A compact laboratory polishing and dispensing system for producing Type 1 ultrapure water from suitable pretreated feed water.
- 18.2 MΩ·cm class monitoring
- UV and cartridge polishing
- Ergonomic point-of-use dispenser
Produkteinführung
Pretreated water passes through application-selected purification cartridges, UV oxidation and optional ultrafiltration before final resistivity monitoring and controlled dispensing.
Key Features

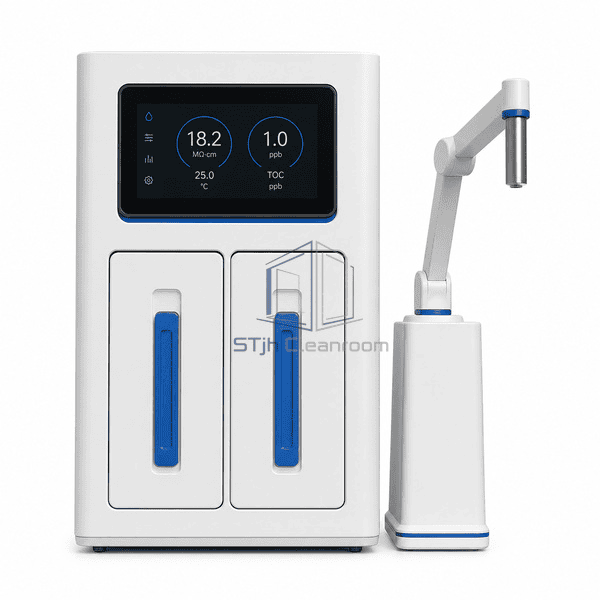

Online resistivity and temperature display
Optional TOC monitoring
UV oxidation module
Application-specific final filters
Volumetric dispensing options
Kunden Produktbedenken
Analytical reproducibility depends on matching the polishing train and point-of-use filter to the laboratory workflow.
Ionic contamination affects resultsMonitor product resistivity continuously and replace polishing media according to measured exhaustion.
Organic background interferes with chromatographyUse UV photo-oxidation and an optional TOC monitor for sensitive analytical work.

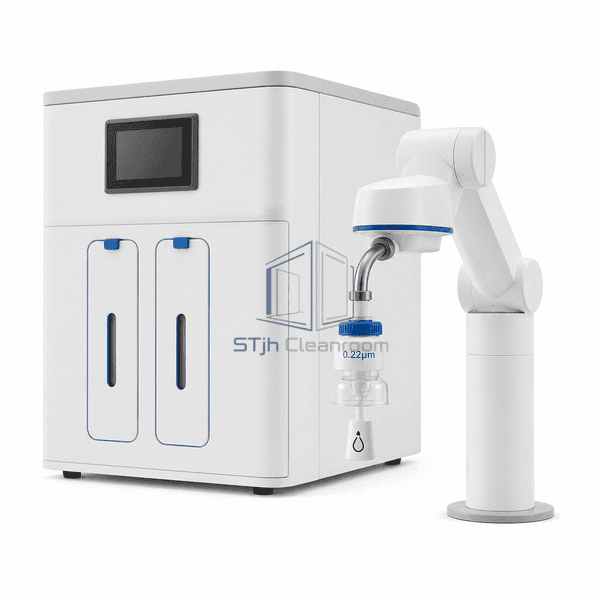

Microbial contamination at dispensingUse recirculation, scheduled sanitization and the selected point-of-use membrane filter.

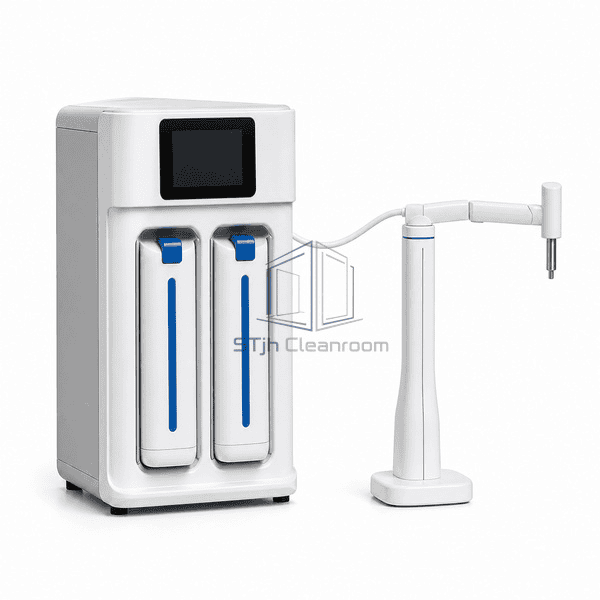

Limited bench spaceChoose bench, under-bench or wall-mounted purification with a separate ergonomic dispenser.
Typische Anwendungen
HPLC and LC-MS preparationTrace elemental analysisMolecular biology buffersCell culture mediaGeneral analytical reagent preparation
Technische Parameter
Representative Type 1 performance depends on suitable feed water, installed application cartridges, final filter and operating conditions.
| Core Material | Mixed ion-exchange media, activated carbon, UV reactor and optional ultrafiltration cartridge |
|---|---|
| Panel Dicke | Molded enclosure wall and cartridge dimensions specified in mm by selected configuration |
| Effektive Breite | Purification unit width typically 260–450 mm |
| Maximale Länge | System depth typically up to 600 mm, excluding dispenser reach |
| Stahl facing Dicke | Internal stainless brackets or optional enclosure panels typically 1.0–1.5 mm where used |
| Kerndichte | Purification-media bulk density varies; mixed resin typically approximately 650–850 kg/m³ |
| Thermische Leitfähigkeit | Polymer enclosure materials typically approximately 0.2 W/(m·K) |
| Oberfläche Finish | Smooth cleanable polymer housing with chemically resistant wetted tubing |
| Gemeinsamer Typ | Tool-free cartridge couplings with push-fit or sanitary point-of-use tubing connections |
| Customisierung | Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung. |
Verfügbare Optionen
UV oxidationUltrafilterTOC monitorRemote dispenserVolumetric dosing0.22 µm final filterData export and alarm contacts
Planning a Laboratory Ultrapure Water System specification?
Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
