Branchenspezifische Reinraumausrüstung
Food-Grade Edelstahl Drain
A hygienic stainless steel floor channel that removes wash water through a fully drainable radiused body, removable grating and accessible sediment strainer.
- Fully Drainable Channel
- Radiused Hygienic Interior
- Removable Anti-Slip Grating
- 304 or 316L Stainless Steel
Produkteinführung

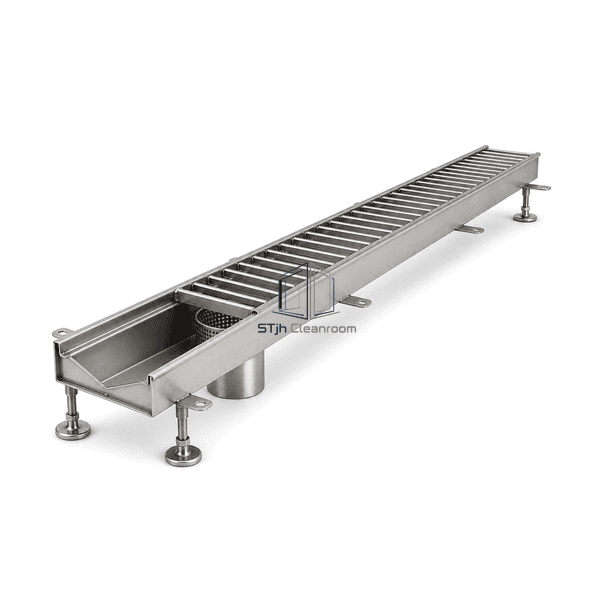

The food-grade stainless steel drain combines a sloped V-profile channel, rounded internal transitions, removable hygienic grating and a trapped outlet body. Pickled and passivated stainless surfaces resist routine washdown chemistry while limiting crevices that retain food soil. Leveling feet, floor anchors and edge profiles help the drain integrate with resin, tile or cementitious flooring, and modular lengths can follow production equipment and cleaning zones.
Key Features
Rounded internal radii and smooth welded transitions provide direct brush and spray access during sanitation.

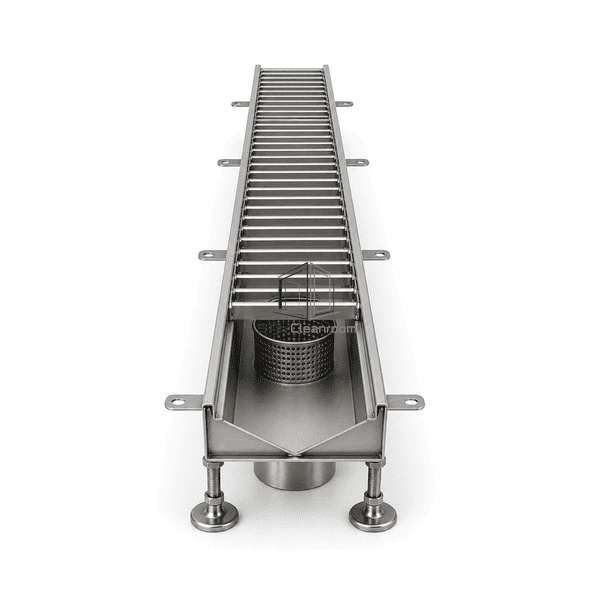

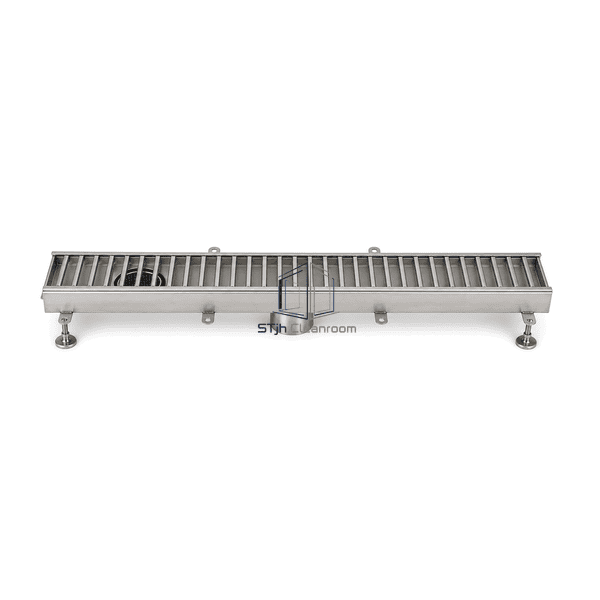

Removable anti-slip stainless grating supports traffic while exposing the complete channel for inspection.

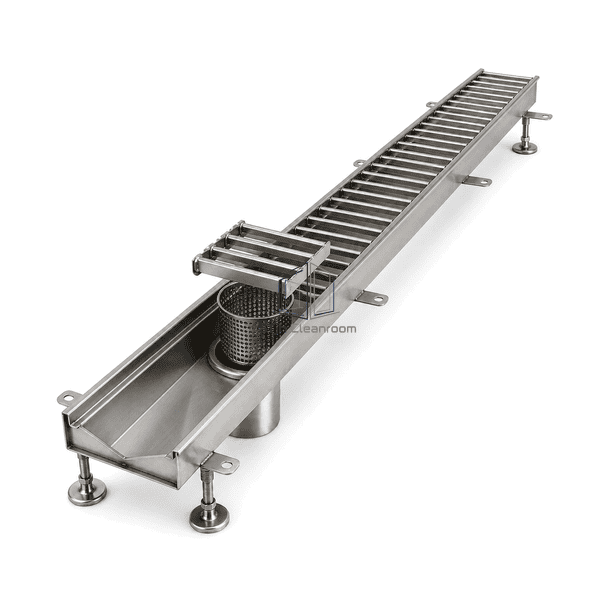

A lift-out sediment basket captures coarse solids before they enter the connected drainage pipe.
Kunden Produktbedenken
Wet production areas need rapid drainage without hidden cavities, standing water or floor joints that become difficult to clean.
Flat-bottom channels leave water and food residue after washdown.A longitudinally sloped V-profile base promotes complete flow toward the outlet.
Sharp corners and boxed grating sections retain organic soil.Radiused internal transitions and open hygienic grating profiles improve physical cleaning access.
Large solids can block downstream pipework and interrupt production.A removable high-capacity strainer captures debris at an accessible service point.
Movement between the drain edge and finished floor creates a contaminated gap.Anchored edge profiles and compatible sealing details create a stable floor-to-channel interface.
Typische Anwendungen
Meat and poultry processing floorsDairy and beverage washdown areasReady-meal and bakery productionHygiene-critical pharmaceutical utility rooms
Technische Parameter
Typical configurable construction values for a hygienic food-processing channel drain are listed below.
| Core Material | AISI 304 stainless steel with optional AISI 316L channel, grating, strainer and outlet body |
|---|---|
| Panel Dicke | 60-200 mm installed channel body depth |
| Effektive Breite | 150-400 mm clear drainage channel width |
| Maximale Länge | Up to 6000 mm modular channel section length |
| Stahl facing Dicke | 1.5-2.0 mm formed stainless steel channel wall |
| Kerndichte | 7900-8000 kg/m³ for austenitic stainless steel |
| Thermische Leitfähigkeit | 14 - 16 W / (m · K) für austenitischen Edelstahl |
| Oberfläche Finish | Pickled and passivated channel with smooth welded interior and electropolished grating option |
| Gemeinsamer Typ | Fully welded radiused channel seams with removable grating, lift-out strainer, sealed floor edge and telescopic outlet connection |
| Customisierung | Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung. |
Verfügbare Optionen
304 or 316L stainless constructionLadder, mesh or hygienic gratingResin-floor, tile-floor or extended edge profileAlternative outlet location, trap and sediment basket
Planning a Food-Grade Stainless Steel Drain specification?
Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
