Produits ESD et antistatiques
Z ESD Heel Grounder
The ESD Heel Grounder is a reusable cup-style footwear accessory that connects personnel to compatible conductive or dissipative flooring.
- Molded heel cup provides repeatable floor contact.
- Conductive ribbon links the wearer through the shoe interior.
- Adjustable retention strap supports secure reusable fitting.
Introduction de produit

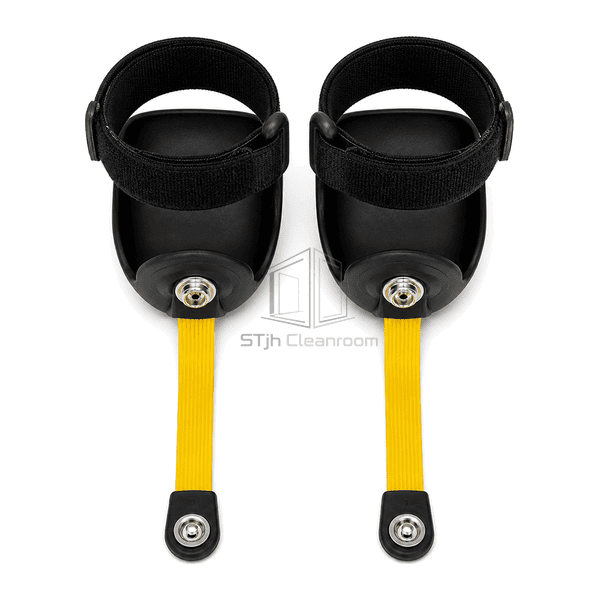

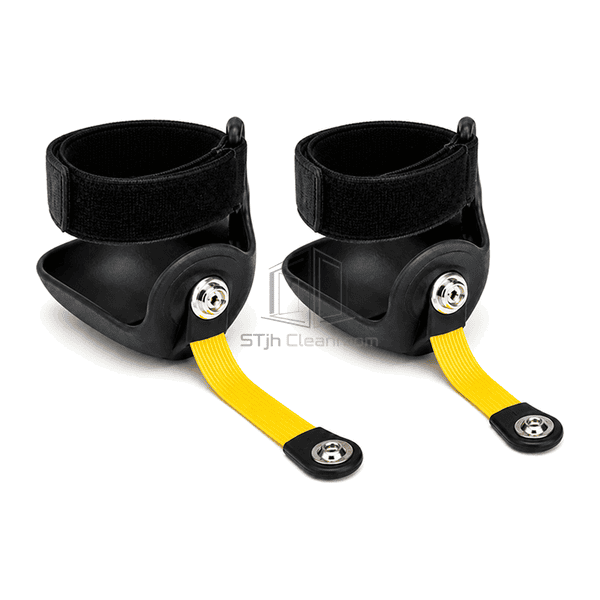

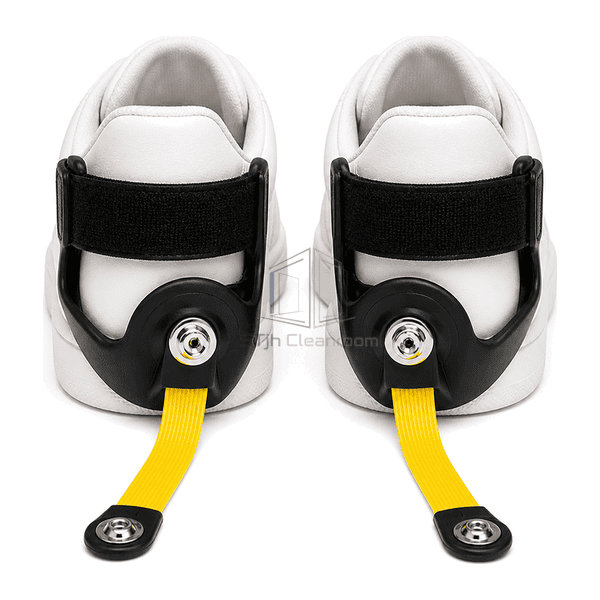

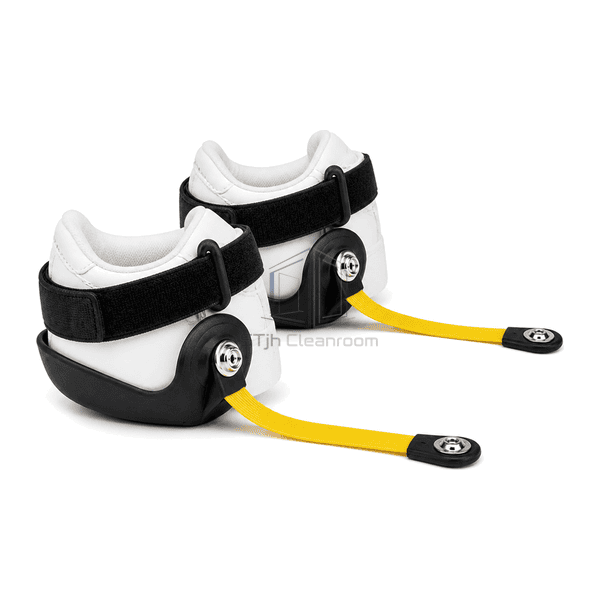

A layered rubber cup wraps the shoe heel and contacts the floor, while a conductive ribbon runs inside the shoe beneath the wearer. The adjustable hook-and-loop strap keeps the assembly in place during walking. Units are normally worn on both feet and verified as part of the complete person-footwear-floor system.
Key Features
Non-marking inner layer protects common footwear finishes.
Bright ribbon makes correct routing easier to inspect.
Adjustable strap accommodates varied shoe profiles.
Replaceable, reusable construction suits controlled-area entry.
Optional current-limiting resistor supports site-specific configurations.
Préoccupations du client produit
Heel-grounder performance depends on secure fit, correct ribbon placement, two-foot use and reliable contact with a verified ESD floor.
The cup shifts during walking.An adjustable retention strap secures the assembly around the shoe.
The grounding ribbon is routed outside the footwear.High-visibility material helps entry personnel confirm that it enters the shoe.
Contact is lost when a foot lifts.Wearing one unit on each foot preserves an alternate floor path.
Grounders leave marks on light flooring or shoes.Non-marking rubber layers are available for controlled interiors.
A worn sole appears usable but has poor continuity.Routine personnel-tester checks identify degraded assemblies before entry.
Les applications typiques
Electronics manufacturing floors.ESD-controlled warehouses.Component inspection areas.Semiconductor support spaces.Visitor entry to protected zones.
Paramètres techniques
These representative values describe a reusable cup-style grounder; sole structure, ribbon length, resistor and closure can be configured for the footwear program.
| Matériaux de base | Two-layer conductive and static-dissipative rubber with polyester ribbon |
|---|---|
| Panneau épaisseur | 1.5–3.0 mm rubber contact thickness |
| Largeur effective | 32–65 mm heel-contact width |
| Longueur maximale | Up to 760 mm conductive ribbon length |
| Acier face épaisseur | 0.5 mm nominal stainless snap shell thickness |
| Densité Core | 1050–1250 kg/m³ rubber compound density |
| Conductivité thermique | 0.13–0.20 W/(m·K) |
| surface finie | Black non-marking molded cup, black woven strap and yellow ribbon |
| Type joint | Repositionable heel cup with hook-and-loop strap and snap-secured ribbon |
| Customisation | Disponible en fonction de l'application prévue et de l'environnement d'exploitation. |
Options disponibles
Single-cup or dual-cup construction.One-megohm, two-megohm or resistor-free versions.460–760 mm ribbon lengths.Hook-and-loop, buckle or quick-release closure.Yellow, blue or black strap details.Multiple cup sizes and non-marking compounds.
Planning a ESD Heel Grounder specification?
Envoyez-nous vos dimensions, conditions d'installation, objectifs de performance et finition de surface requise.
