Equipement de salle blanche spécifique à l'industrie
Cabinet de vêtements stérile

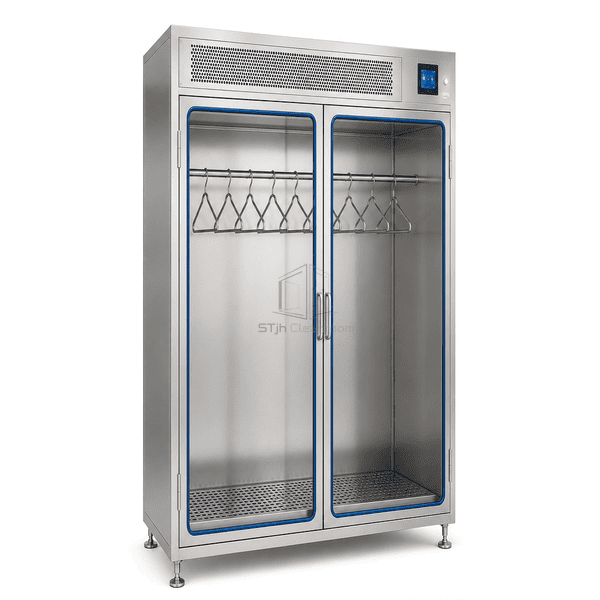

A HEPA-filtered stainless wardrobe that protects cleaned coveralls and gowning accessories from particle deposition before use.
- HEPA-Filtered Vertical Airflow
- Sealed Double Glass Doors
- Eight-Hanger Storage Rail
- Perforated Shoe Shelf
Introduction de produit

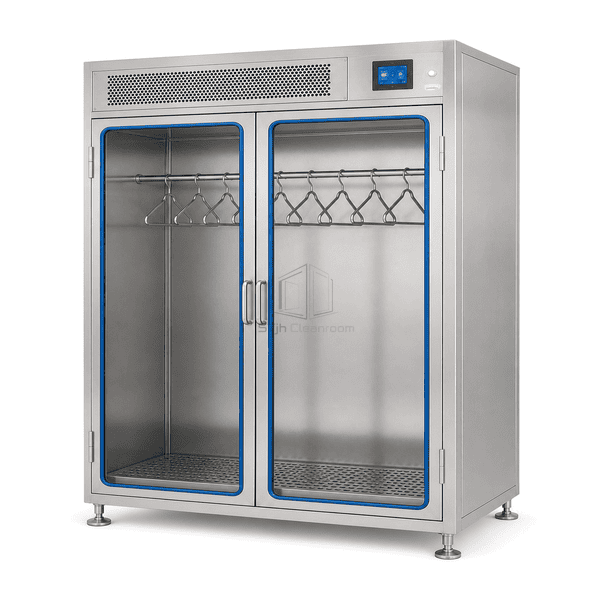

The sterile garment cabinet creates a continuously flushed storage zone for cleanroom apparel. Air from the top fan-filter plenum moves downward across the hanging rail and exits through the perforated lower shelf area, reducing stagnant pockets around stored garments. Two gasketed glass doors provide clear inventory visibility, while the stainless interior supports routine wipe-down in gowning rooms.
Key Features

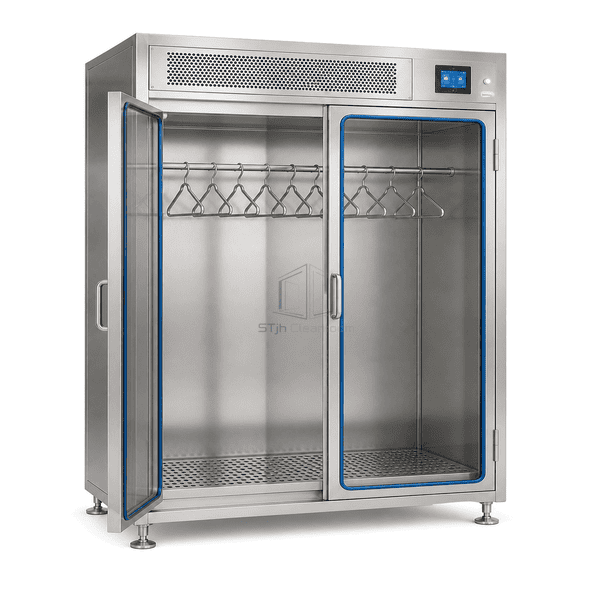

Two blue-gasketed glass doors limit uncontrolled room-air entry during storage.

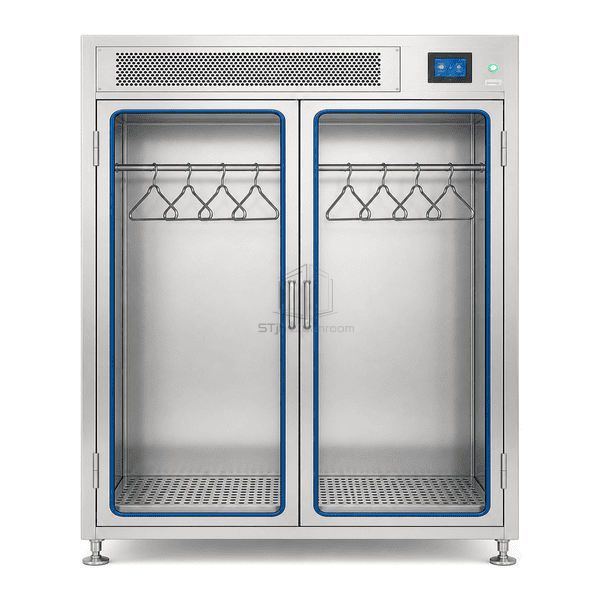

A full-width stainless rail organizes up to eight spaced garment hangers.
The perforated lower shelf separates footwear while preserving vertical airflow.
Préoccupations du client produit
Freshly laundered garments can collect particles or become disorganized while waiting in an ordinary open wardrobe.
Room particles settle on clean garments between laundering and use.Continuous HEPA-filtered downflow flushes the enclosed storage zone.
Opening an opaque cabinet makes inventory checks disruptive.Full-height glass doors allow operators to confirm garment availability before access.
Closely packed garments obstruct air circulation.A long rail and evenly spaced hangers support separation around each item.
Footwear stored on a solid base interrupts downward flow and cleaning.A removable perforated lower shelf supports shoes while maintaining an airflow path.
Les applications typiques
Cleanroom gowning roomsSterile coverall storagePharmaceutical changing areasMedical-device clean apparel staging
Paramètres techniques
Typical configurable construction values for a HEPA-filtered sterile garment cabinet are listed below.
| Matériaux de base | 304 stainless-steel double-skin cabinet with safety-glass doors and HEPA fan-filter module |
|---|---|
| Panneau épaisseur | 30-60 mm cabinet and filter-plenum sections |
| Largeur effective | 900-1500 mm clear hanging width |
| Longueur maximale | Up to 1800 mm overall cabinet width |
| Acier face épaisseur | 1.0-1.5 mm stainless cabinet facing |
| Densité Core | 35-45 kg/m³ for insulated double-skin sections |
| Conductivité thermique | 0.035-0.045 W/(m·K) for insulated cabinet sections |
| surface finie | Satin stainless interior and exterior with smooth cleanable corners |
| Type joint | Sealed double-skin cabinet seams with blue-gasketed hinged glass doors |
| Customisation | Disponible en fonction de l'application prévue et de l'environnement d'exploitation. |
Options disponibles
Alternative hanging-rail and shelf layoutsDifferential-pressure filter monitoringPowder-coated steel or stainless constructionSingle-door and pass-through configurations
Planning a Sterile Garment Cabinet specification?
Envoyez-nous vos dimensions, conditions d'installation, objectifs de performance et finition de surface requise.
