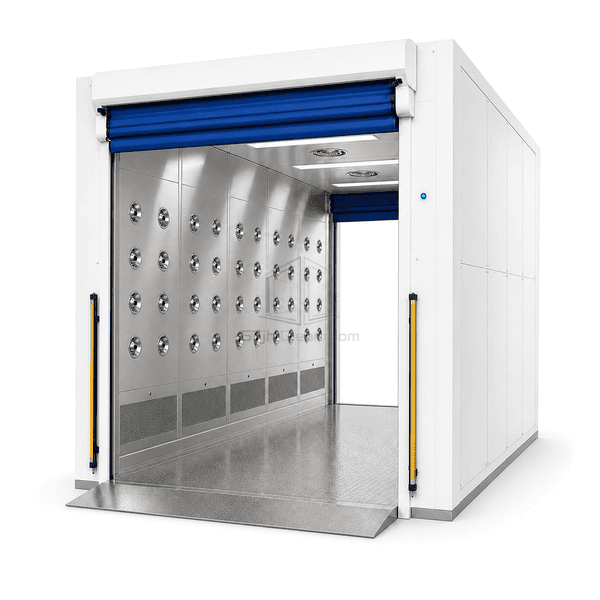

Complete cargo air shower with two high-speed roll-up door assemblies

Personal und Material Dekontamination Ausrüstung

Hochgeschwindigkeits-Roll - Up-Tür Cargo Air Shower

A high-throughput cargo air shower using fast vertical doors, safety sensing and multi-side cleaning air for frequent pallet and trolley transfers.

Fast Vertical Doors
Wide Pallet Opening
Photoelectric Door Safety
Multi-Side Cargo Cleaning

Bitte senden Sie eine Anfrage. Browse Produkte

Produkteinführung

This cargo unit replaces broad swing leaves with vertical roll-up doors that clear the full transfer opening without consuming aisle space. Once a load is inside, the entrance door closes and the exit remains controlled while side and roof nozzles clean exposed surfaces. The rail-free threshold and photoelectric protection suit pallet jacks, carts and automated material routes.

Key Features

Vertical door travel frees the width of the cargo route without floor or wall swing arcs.

Fast closing reduces the period of direct corridor exposure before cleaning begins.

A photoelectric safety field protects tall or mispositioned loads.

Sidewall and ceiling nozzles reach both vertical and upper cargo surfaces.

A flush threshold avoids interruption to wheeled transfer.

Kunden Produktbedenken

Large automatic openings must move quickly around variable loads while protecting people, cargo and the controlled transfer sequence.

Wide swing doors block adjacent aisles and require manual handling.Sensor-controlled vertical doors open above the cargo route without swing clearance.

Slow doors leave the chamber open to warehouse air.High-speed closing shortens the open period before the cleaning sequence.

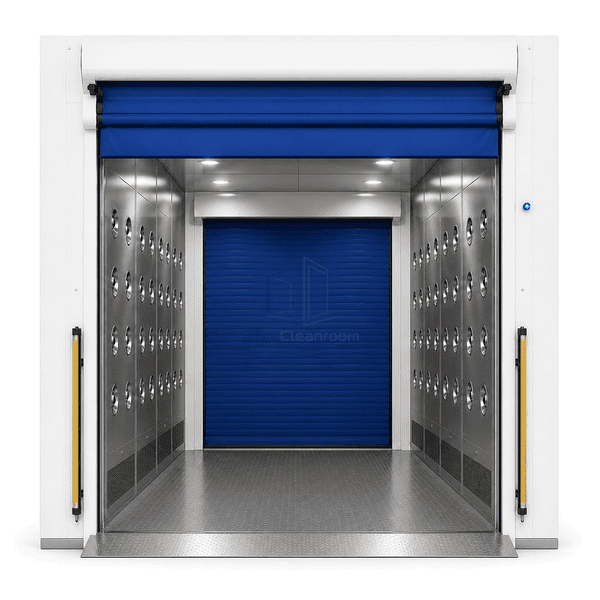

A descending curtain may contact a tall load.Full-height photoelectric protection detects an obstruction and stops or reverses the door.

Door bottom hardware can catch a pallet jack.A rail-free threshold and soft monitored bottom edge keep the route level.

Typische Anwendungen

Palletised pharmaceutical materialsBattery module transferFood-packaging trolleysAutomated guided vehicle access

Technische Parameter

Representative enclosure and door ranges for a high-speed cargo air shower are provided below.

Core Material	Reinforced mineral-wool steel enclosure with H13 HEPA fan banks, stainless nozzles and PVC high-speed roll-up door curtains
Panel Dicke	75 mm reinforced wall and roof panel system
Effektive Breite	1800-3000 mm clear high-speed cargo opening
Maximale Länge	Up to 6000 mm modular cleaning chamber length
Stahl facing Dicke	1.2-1.5 mm structural facing with heavy-duty roll-housing supports
Kerndichte	90-120 kg/m³ mineral-wool panel core
Thermische Leitfähigkeit	0.037-0.045 W/(m·K) for the insulated cargo enclosure
Oberfläche Finish	White powder-coated shell, brushed stainless impact liners and light-colour PVC door fabric
Gemeinsamer Typ	Bolted heavy-frame modules with gasketed seams and interlocked sensor-protected roll-up doors
Customisierung	Verfügbar je nach beabsichtigter Anwendung und Betriebsumgebung.

Verfügbare Optionen

Blue, white or clear-window curtainsRadar, loop or pull-cord activationSide and ceiling nozzle banksAGV control contacts

Planning a High-Speed Roll-Up Door Cargo Air Shower specification?

Senden Sie uns Ihre Abmessungen, Installationsbedingungen, Leistungsziele und gewünschte Oberflächenveredelung.
