클린룸 재료 취급 및 보관

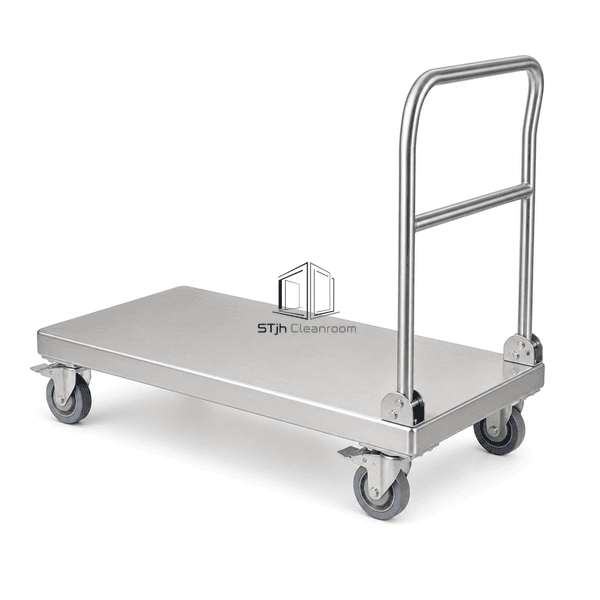

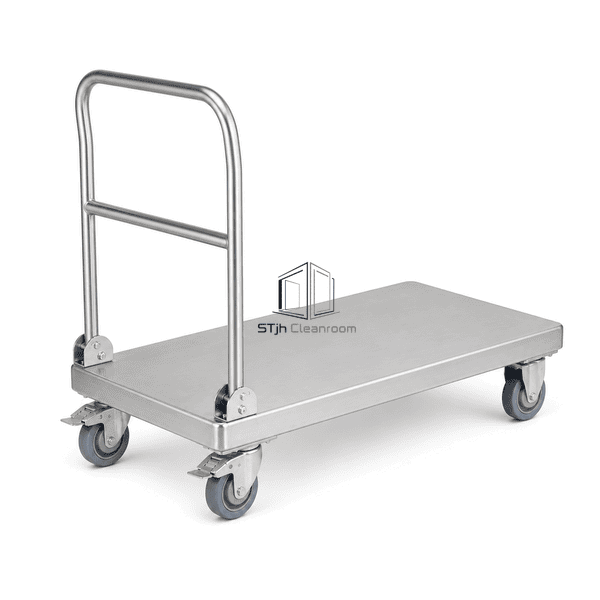

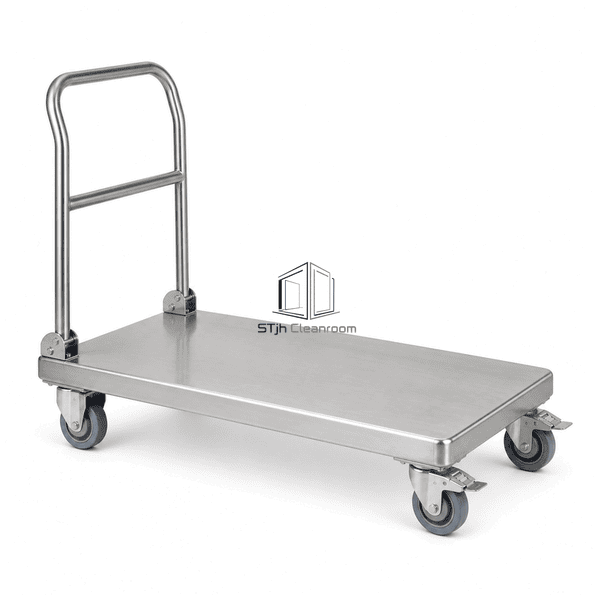

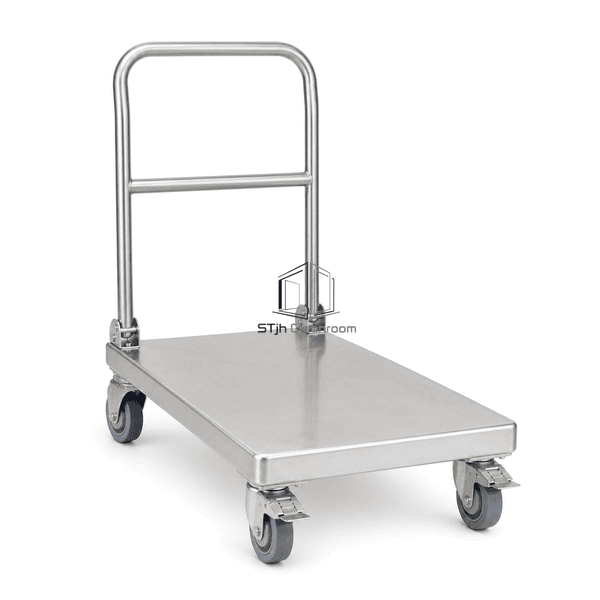

스테인레스 스틸 플랫폼 카트
A low-profile stainless steel platform cart for moving containers, equipment and packaged materials through clean, washdown or hygiene-sensitive production areas.
- Low smooth stainless deck for bulky load footprints
- Welded open underframe with accessible cleaning surfaces
- Full-width steering handle and configurable caster brakes
상품 소개
The cart uses a smooth single deck and welded stainless steel underframe to provide a stable, readily accessible load surface. A tubular end handle gives operators positive steering control without enclosing the deck. Non-marking casters can be selected for the floor finish, load and cleaning regime, while removable-handle and brake arrangements support storage and workstation use.
주요 기능
Stainless steel surfaces withstand frequent cleaning and resist corrosion.
Low deck height reduces the lifting distance during manual loading.
End handle supports two-handed steering through narrow routes.
Caster and brake configurations can be matched to load and floor conditions.
고객 제품 관심사
Bulky loads need a low loading height, an unobstructed cleanable deck and predictable steering without introducing wheel marks or exposed corrosion points.
Corrosion after repeated sanitationStainless construction provides a cleanable load path; grade and finish can be chosen for the actual chemicals.
Difficult loading onto a high cartThe low platform minimizes vertical lift distance.
Poor control with bulky loadsA full-width end handle supports stable push and steering input.
Wheel contamination or markingNon-marking wheel compounds and stainless caster hardware are available.
일반적인 응용 프로그램
Used for moving boxed components, process vessels, bagged materials and portable equipment in pharmaceutical, food, laboratory, medical-device and controlled manufacturing facilities.
기술 매개변수
Deck size and sheet thickness, handle attachment, caster layout and stainless finish are selected around payload geometry, turning space, floor condition and sanitation routine.
| 핵심 재료 | 304 stainless steel deck, frame and tubular handle |
|---|---|
| 패널 두께 | 1.5–2.0 mm deck sheet |
| 유효 폭 | 610–914 mm |
| 최대 길이 | Up to 1829 mm |
| 강철 면면 두께 | 1. 5 - 2. 0 mm |
| 코어 밀도 | 7930 kg/m³ nominal 304 stainless steel density |
| 열전도도 (Thermal Conductivity) | 실온에서 약 16. 2 W / (m · K) |
| 표면 마무리 | Brushed, bead-blasted or electropolished stainless steel |
| 접합 유형 | Welded stainless steel frame with bolted or removable push handle |
| 사용자 정의 | 의도된 응용 프로그램 및 운영 환경에 따라 사용할 수 있습니다. |
사용 가능한 옵션
Options include 304 or 316 stainless steel, multiple deck sizes, removable or fixed handles, corner buffers, total-lock casters, rigid/swivel caster combinations and conductive wheels.
Planning a Stainless Steel Platform Cart specification?
치수, 설치 조건, 성능 목표 및 필요한 표면 마감을 보내십시오.
