ISO Class 4–8 production rooms
Form insulated partitions in electronics, pharmaceutical and food-production environments, coordinating the faces and sealed openings with the room layout.
PRODUCT GALLERYST

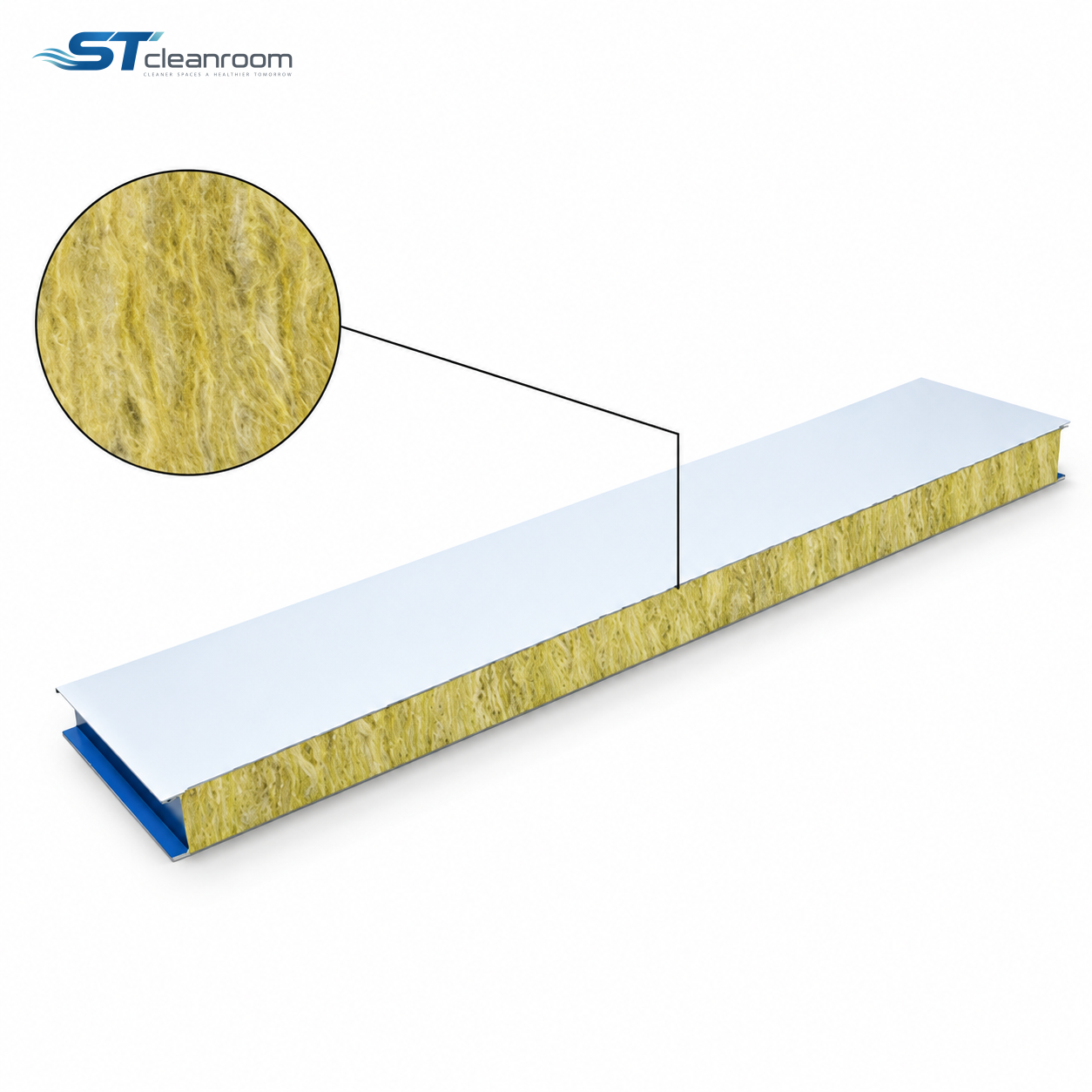

Product view
Cleanroom Wall Panels
Machine-Made Rock Wool Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels |
| Core structure | Rock wool |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 100 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.
Machine-Made Rock Wool Sandwich Panel combines steel faces and a rock wool core to create insulated wall partitions with a finished, cleanable room surface. Use machine-made panels to divide production rooms, corridors and support areas.
The mineral core limits heat transfer between adjoining spaces. Interlocking profiles connect adjoining wall panels, while edge closures and sealed joints keep the wool enclosed and leave accessible surfaces for routine cleaning.
APPLICATION ENVIRONMENTS
Where the panel fits
Corridor and support-room partitions
Divide adjoining corridors and support rooms with insulated wall panels and sealed junctions.
PRACTICAL BENEFITS
What the construction helps solve
Insulation without a separate lining
The rock wool sits between finished metal faces, combining the room surface and thermal separation in the same wall section.
Lengths matched to the elevation
Made-to-length panels follow wall heights and opening positions, reducing avoidable cutting during installation.
Connected joints with enclosed insulation
Interlocking profiles connect the wall sections; closures and trims cover exposed insulation at corners and service entries for accessible cleaning surfaces.
CHOOSING THE ASSEMBLY
Selection
Insulation and support
Choose thickness and supports for the required thermal and wall performance.
Openings and panel joints
Plan interlocking joints, doors and service entries before scheduling panel lengths so the wall sections fit the room layout.
PRODUCT QUESTIONS
Common questions
Will rock wool alone determine room temperature?
No. Room temperature also depends on the complete enclosure, ventilation and process heat.
How do adjoining wall panels connect?
Interlocking edge profiles connect neighbouring panels. Sealed joints and matching closures complete the wall at corners and openings.
