ISO Class 4–8 cleanroom partitions
Divide pharmaceutical preparation rooms, electronics workshops and other controlled spaces with framed panels fitted around doors and glazing.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels

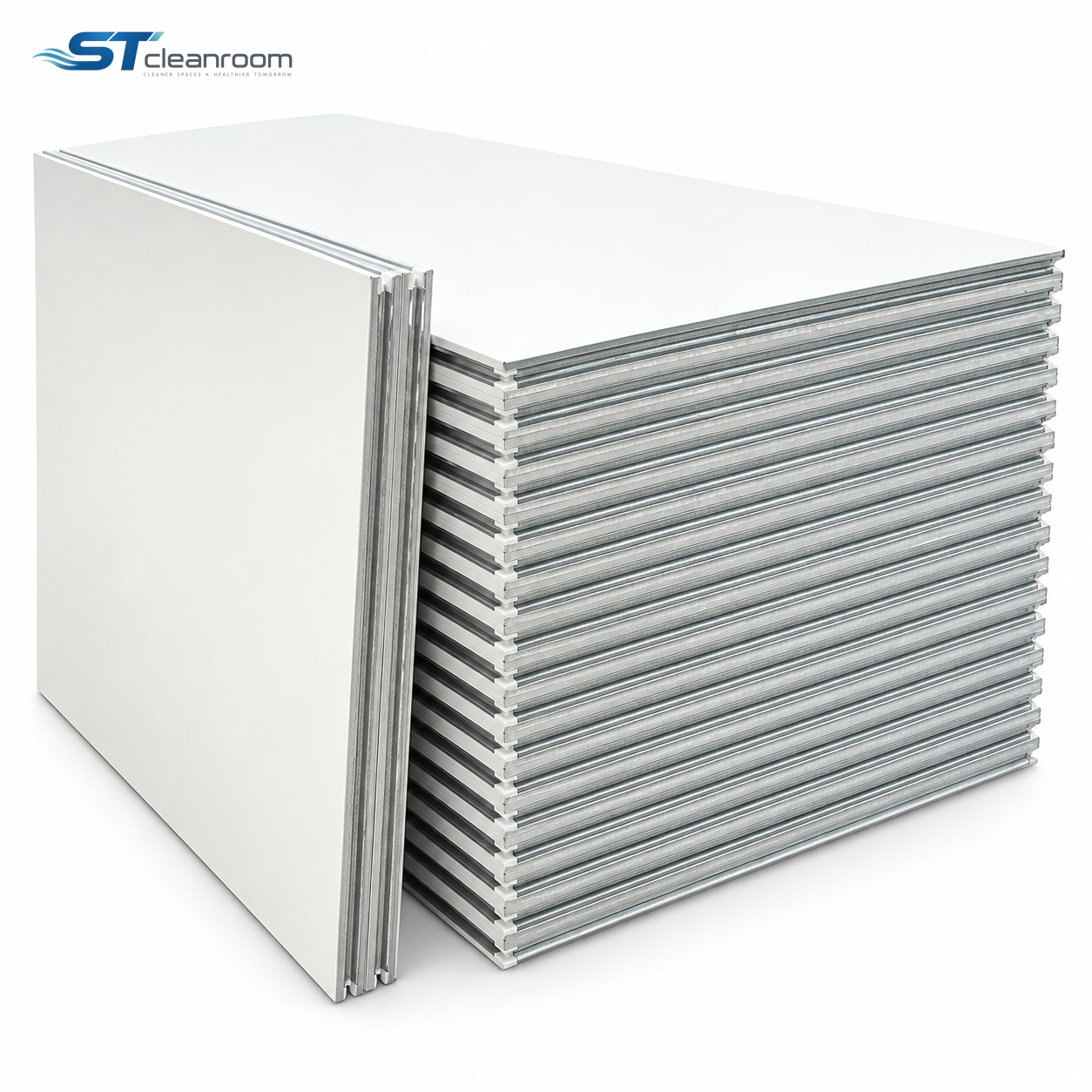

Handmade Rock Wool Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels |
| Core structure | Rock wool |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 100 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.

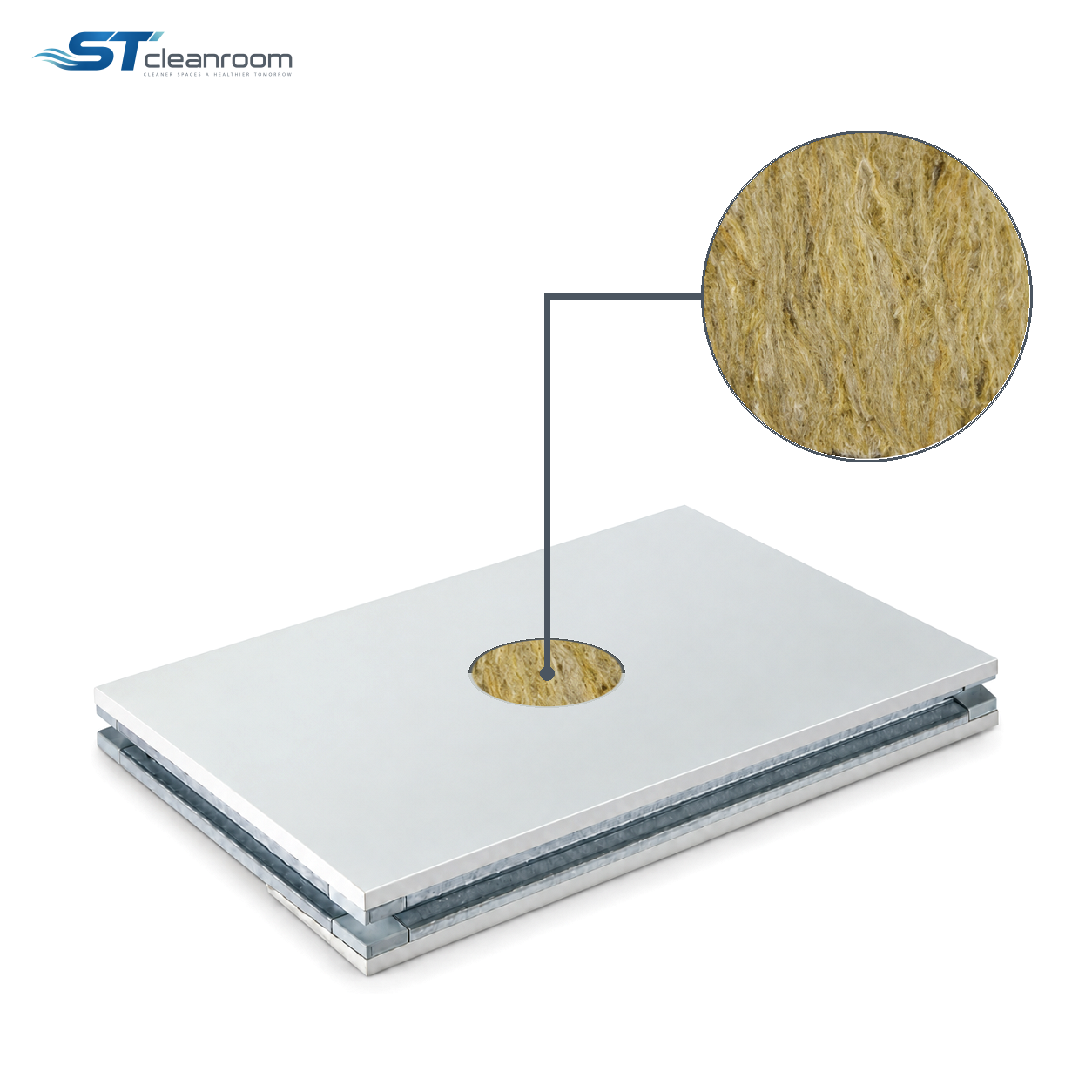

Handmade Rock Wool Sandwich Panel encloses rock wool between metal faces and perimeter frames, forming insulated wall modules with defined edges for adjoining panels, doors and windows. They create insulated cleanroom wall partitions, with defined edges for adjoining panels, doors and observation windows.
The frame provides the connection around each module; the rock wool limits heat transfer through it. Coordinated corner and opening details help produce a continuous, wipeable interior instead of leaving exposed insulation at junctions.
APPLICATION ENVIRONMENTS
Where the panel fits
PRACTICAL BENEFITS
What the construction helps solve
Defined interfaces at openings
Framed edges meet door and window sections, making these junctions part of the planned panel assembly.
Insulation within each module
Rock wool separates temperature conditions on either side without adding a separate exposed insulation layer.
Finished surfaces through corners
Matching frames and trims cover cut edges and complete the surface at wall ends and adjoining partitions.
CHOOSING THE ASSEMBLY
Selection
Facing and edge construction
Specify the facing, coating and edge frame as one panel assembly.
Room-by-room quantities
List lengths, corners and opening positions by room to organize installation.
PRODUCT QUESTIONS
Common questions
Does handmade mean assembled in the cleanroom?
No. The panels are prefabricated at the factory and joined on site.
Can the same order include different panel lengths?
Yes. List each required length and quantity on the wall schedule.
