Controlled workrooms
Enclose electronics, preparation and laboratory workspaces with cleanable metal faces and sealed panel junctions.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels
Machine-Made Glass-Magnesium Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Glass-magnesium board layers |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 180 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.

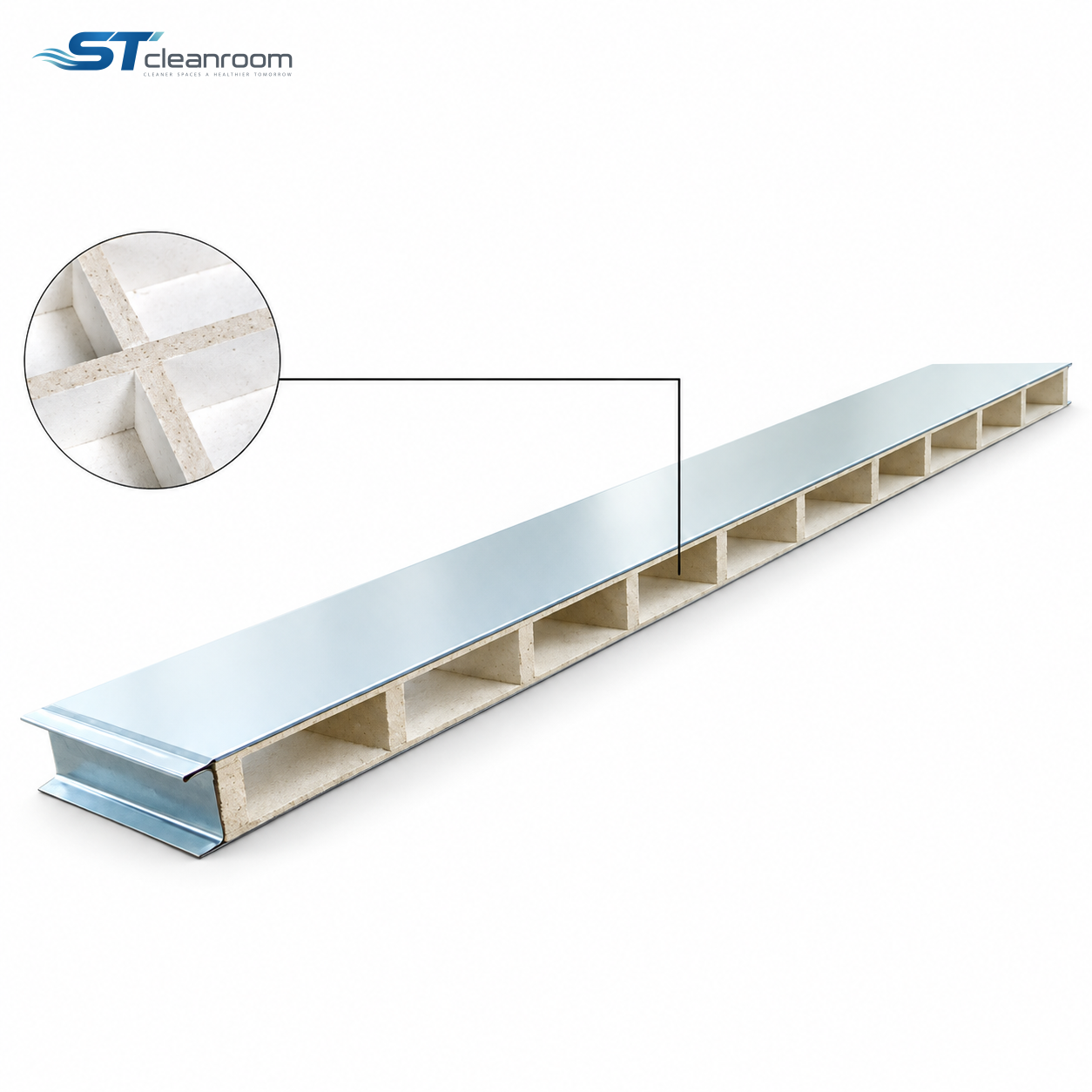

Machine-Made Glass-Magnesium Sandwich Panel uses glass-magnesium board layers to support the metal faces of interior partitions and supported ceiling infill. The core's internal ribs and channels provide support without filling the entire section with solid material, while the metal faces form the room's cleanable surface.
Interlocking profiles connect neighbouring sections into wall and ceiling runs. Closures and sealed trims cover the channels at panel ends and service openings, keeping the core enclosed through the room junctions.
APPLICATION ENVIRONMENTS
Wall partitions and supported ceiling infill
Corridors and ceiling infill
Complete circulation partitions and supported ceilings, closing core channels wherever panels end or service openings are cut.
PRACTICAL BENEFITS
Support the faces and close the room boundary
Support through the board layers
The glass-magnesium layers and internal ribs support the panel faces without a fully solid-filled section.
Connected edges and enclosed channels
Interlocking profiles join adjoining sections; closures finish wall ends and penetrations so the core remains covered.
Fixings planned before installation
Locating attached equipment early makes it possible to include reinforcement or separate supports where needed.
CHOOSING THE ASSEMBLY
Coordinate the joints and fixing points
Wall-mounted equipment
Identify cabinet and service loads before choosing their supports.
Interlocking joints and end closures
Coordinate panel profiles, sealed closures and adjoining frames at wall ends, ceiling junctions and penetrations.
PRODUCT QUESTIONS
Glass-magnesium panel questions
Can cabinets be fixed anywhere on the panel?
Each cabinet needs a suitable fixing, reinforcement or independent support at its planned position.
How do adjoining panels connect?
Interlocking edge profiles connect neighbouring sections. Close exposed core channels and seal the junctions around openings and room edges.
