ISO Class 4–8 partition systems
Arrange framed panels around doors and glazing in electronics production, pharmaceutical preparation and laboratory clean environments.
PRODUCT GALLERYST

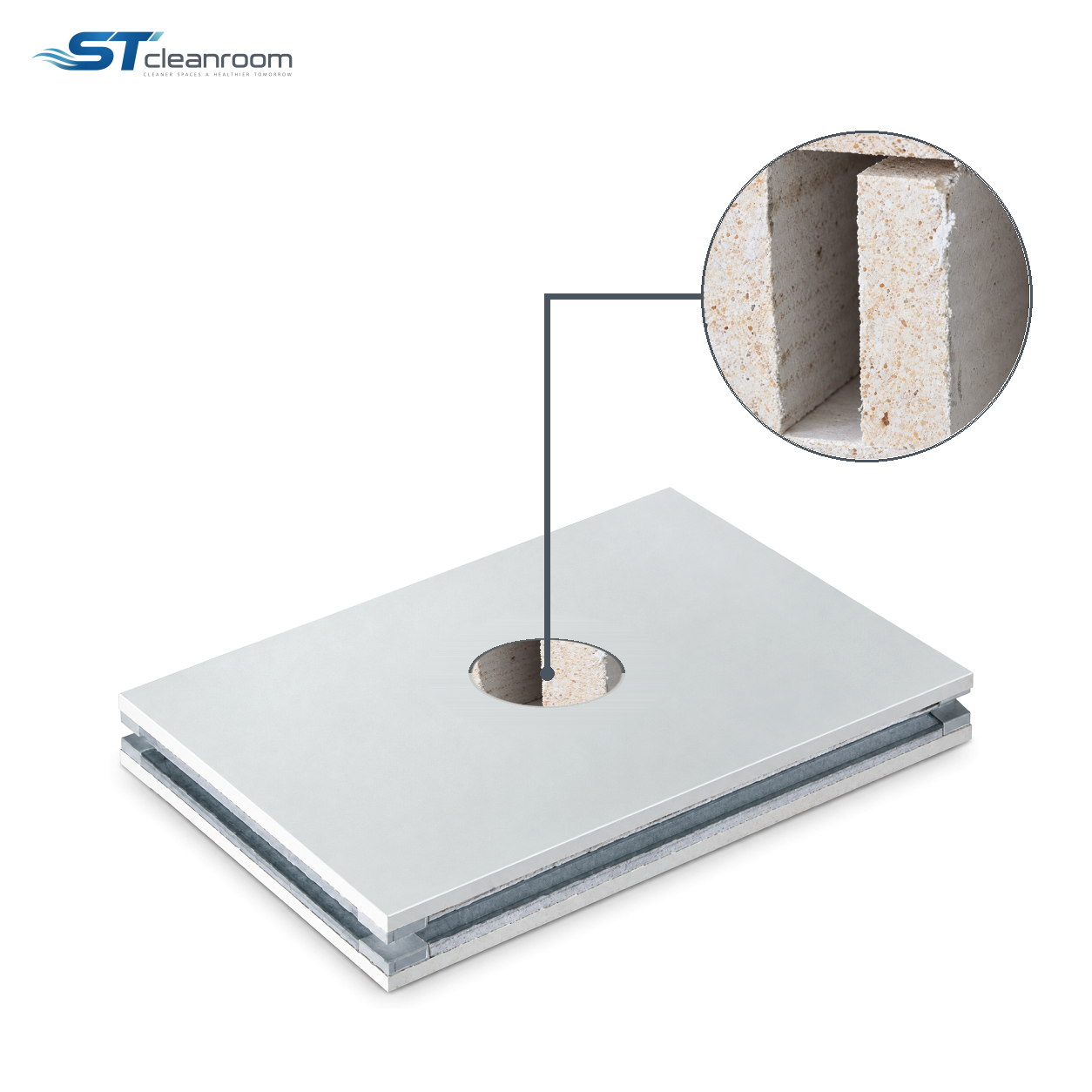

Product view
Cleanroom Wall Panels
Handmade Glass-Magnesium Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Hollow glass-magnesium structural board |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 170 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.
Handmade Glass-Magnesium Sandwich Panel combines metal faces, hollow glass-magnesium supporting ribs and perimeter framing to form prefabricated wall and ceiling modules. The hollow structure supports the faces while keeping the module lighter than a solid-core construction.
Framed edges help wall panels meet doors, observation windows and corners. The same construction can form supported ceiling infill, with closures and seals maintaining a finished surface around openings and room transitions.
APPLICATION ENVIRONMENTS
Where the panel fits
Ceilings with planned service openings
Use supported infill modules around lights, filters and other services, closing and sealing the cut core edges.
PRACTICAL BENEFITS
What the construction helps solve
A defined perimeter interface
The frame encloses the hollow core and provides joining edges for tracks and opening frames.
Room layouts built into the panel schedule
Door, window and service locations can determine module lengths before the panels arrive for installation.
Loads directed to suitable fixing points
Planning reinforcement or separate supports avoids relying on the hollow core for cabinets and equipment.
CHOOSING THE ASSEMBLY
Selection
Frames and transitions
Coordinate panel thickness, edge frames and adjoining door or window sections.
Attached loads
Mark service brackets and cabinet loads before producing the panels.
PRODUCT QUESTIONS
Common questions
Does perimeter framing support every wall-mounted load?
No. Attached loads still require suitable fixings or independent supports.
Why identify windows before ordering panels?
Window locations determine panel lengths and frame junctions before manufacture.
